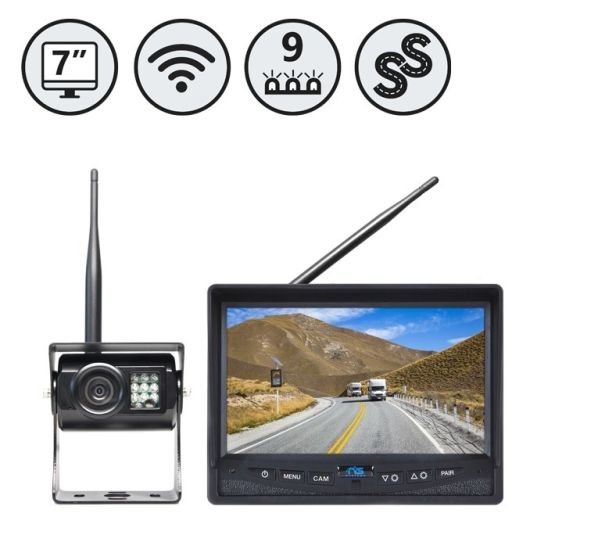

RVS Systems RVS-355W-A-01 540 TVL Wireless Backup Camera, Right Side Camera, 7" Wireless Display, Adhesive Mount
SKU
RVS-355W-A-01
Model No
RVS-355W-A-01
$477.06
Product Highlights
- 7" LED Digital Monitor with Adhesive Mount
- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds!
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert
The RVS-355W-A-01 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped with instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines. The cameras come with a 7" Wireless Display and Adhesive Mount.
RVS Systems RVS-355W-A-01 Camera Features
- 7" LED Digital Monitor: Provides a clear view with an adhesive mount for secure positioning.

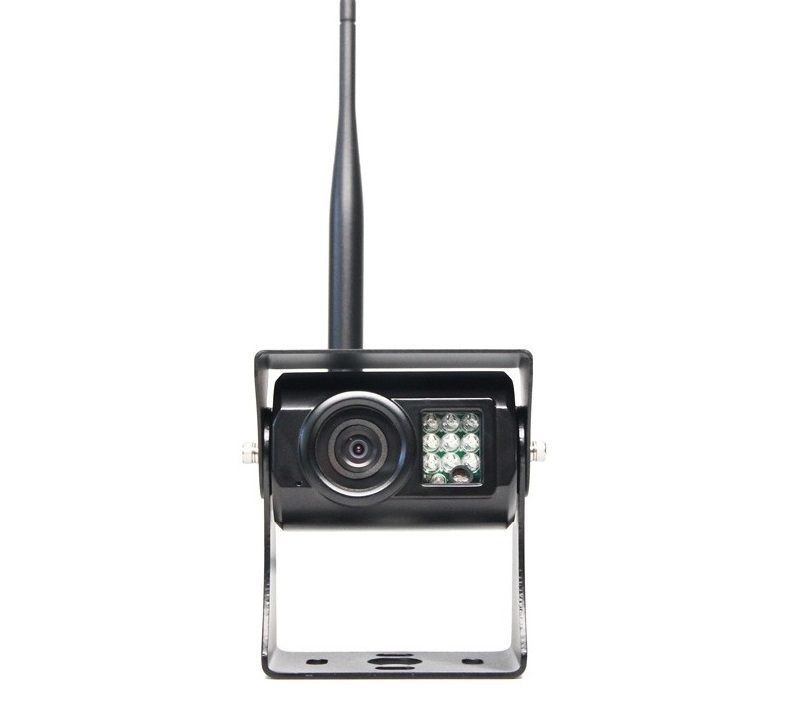

- Waterproof Backup Camera: Features infra-red night vision for reliable performance in low light conditions.
- Two Wired Inputs: Connect up to two side cameras for enhanced visibility and safety.
- Long Range Transmission: Guaranteed transmission of 100ft even at highway speeds ensures constant connectivity.
- Instant Pair Feature: Easily pair the system without leaving your cab for hassle-free operation.
RVS Systems RVS-355W-A-01 Detailed Specifications
| Monitor Size | 7 inches |
| Camera Type | Wireless Backup Camera with infra-red night vision |
| Mount Type | Adhesive Mount |
| Wired Connections | Two inputs for side cameras |
| Transmission Range | Up to 100ft |
| Instant Pair Feature | Allows quick pairing without leaving the cab |
SKU  | RVS-355W-A-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Wireless Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | Wireless Backup Camera:-30°C~+80°C, Side Camera: -40°C~+80°C |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75 ohm |
| Weatherproof | IP69K |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | Wireless Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
