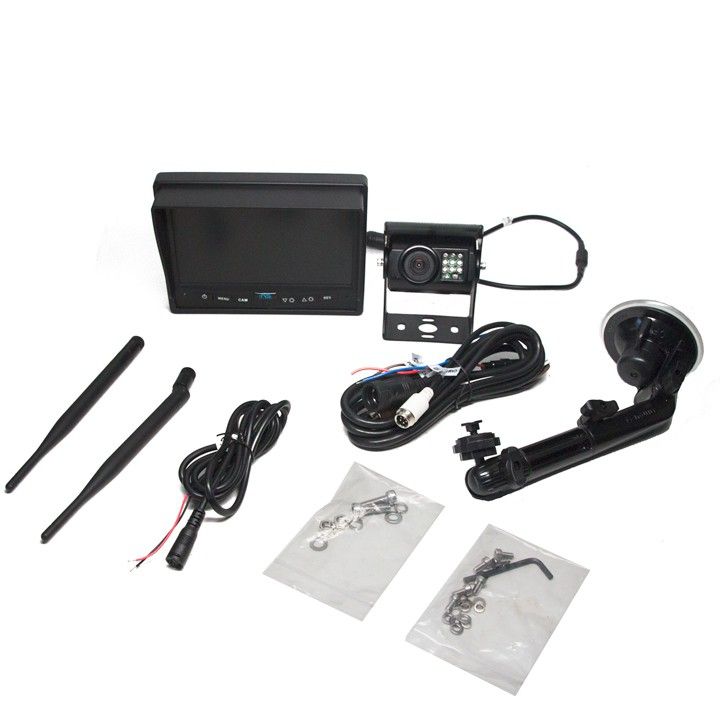

RVS Systems RVS-355W Simple Sight Wireless Backup Camera System With 7" Single Screen Monitor
SKU
RVS-355W
Model No
RVS-653353
$611.40
Product Highlights
- 7" LED Digital Monitor with Suction Cup Mount
- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert
The RVS Systems RVS-355W Simple Sight Wireless Backup Camera System offers an effortless way to enhance safety and visibility for your truck and trailer setups. Featuring a 7" LED monitor and a waterproof camera with infrared night vision, it ensures clarity and reliability, even in challenging conditions. The innovative instant pair feature allows for easy switching between vehicles, making this system a practical solution for truckers and those frequently towing trailers.
RVS Systems RVS-355W Camera Features
Features
- 7" LED Digital Monitor: Provides a clear view of the rear, mounted securely with a suction cup for easy positioning.

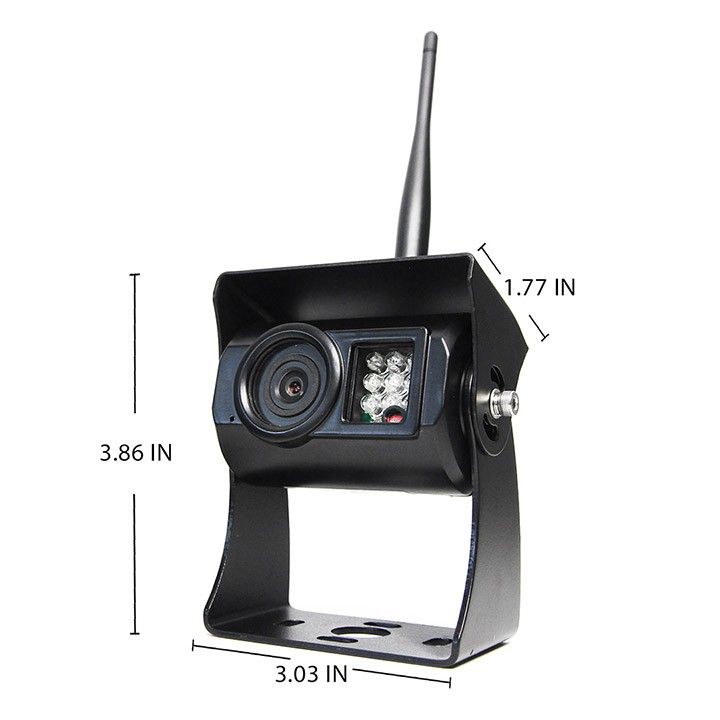

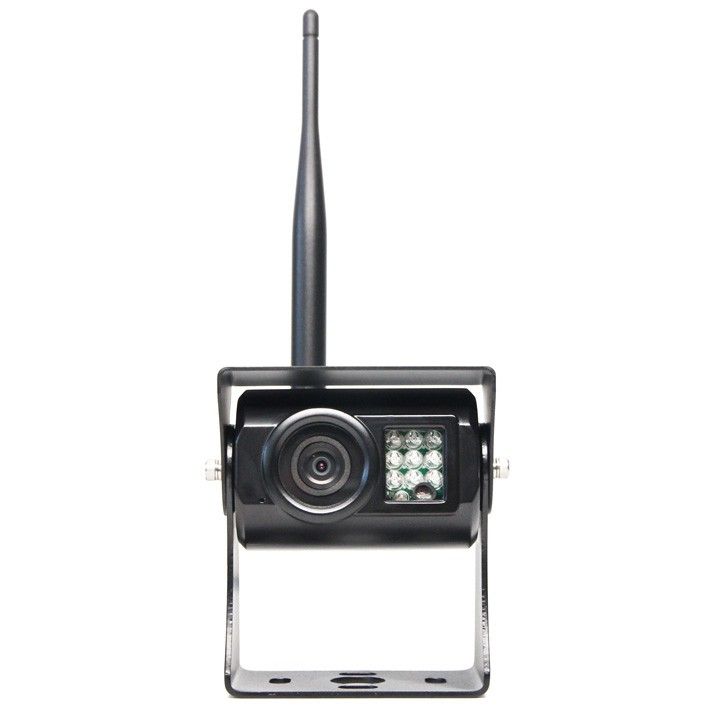

- Waterproof Backup Camera: Built to withstand the elements with infrared night vision for enhanced visibility after dark.

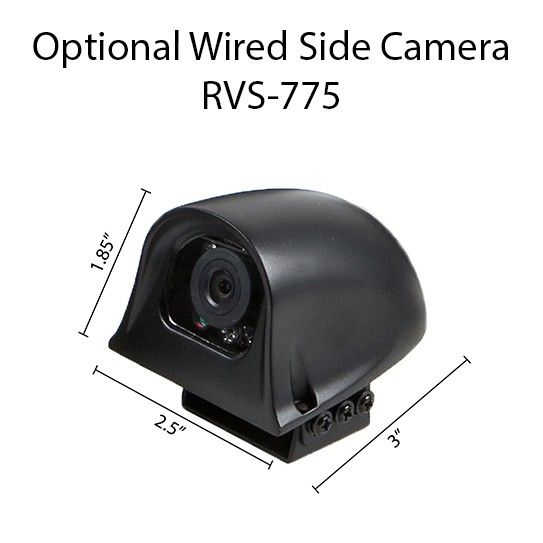

- Two Wired Inputs: Connect up to two side cameras, allowing for a comprehensive view of your surroundings.
- Guaranteed Transmission of 100ft: Ensures a strong signal even at highway speeds, maintaining a clear connection for optimal safety.
- Instant Pair: Easily switch the system between different trucks and trailers without needing to exit the cab.
RVS Systems RVS-355W Detailed Specifications
| Product Type | Wireless Camera System |
| Monitor Size | 7 inches |
| Camera Type | Waterproof with Night Vision |
| Input Options | Up to Two Wired Side Cameras |
| Transmission Distance | 100ft |
| Pairing Method | Instant Pair from Cab |
SKU  | RVS-355W |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |
| Dimensions (W x H) | Backup Camera: (with bracket) 3.8" (H) x 3" (L) x 1.7" (D) , Monitor: 5" (H) x 7" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Day/Night | Yes |
| Auto Gain Control | Yes |
