RVS Systems RVS-2CAM-SC-02 540 TVL Backup Camera, Left Side Camera, 7" LW Monitor, Suction Cup Mount
SKU
RVS-2CAM-SC-02
Model No
RVS-2CAM-SC-02
$616.00
Product Highlights
- Digital Wireless Connection - Up to 70ft!
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert
RVS Systems RVS-2CAM-SC-02 Camera Features

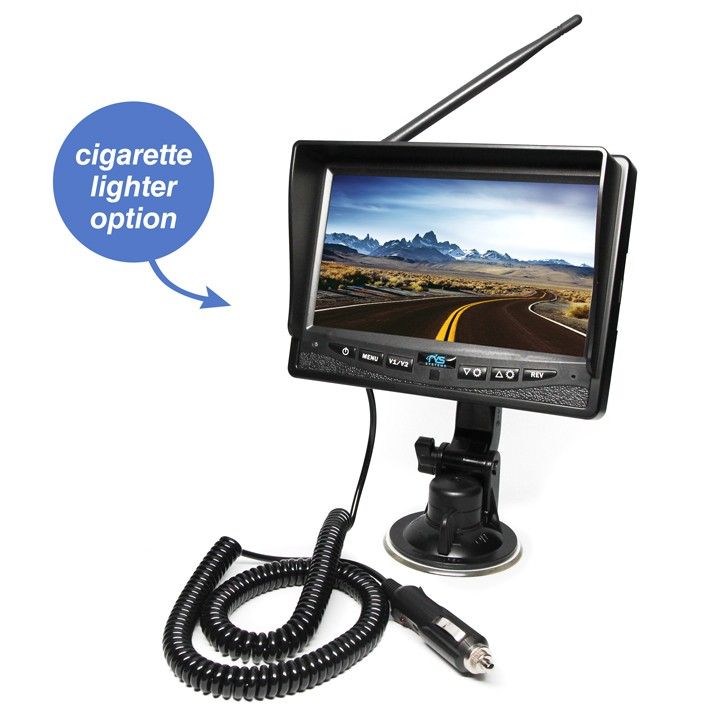

The RVS-2CAM-SC-02 from RVS Systems is a Wireless Dual Camera System that comes with a digital wireless connection and a split-screen monitor to view two cameras at the same time. Built-in auto-pair enables you to pair the wireless system without having to leave your cab. With this new wireless technology, we guarantee no interference for up to 70ft! Cameras come with a 7" LW Monitor and a suction cup mount.
Detailed Camera Specifications
- Digital Wireless Connection: Ensures stable transmission of video signals up to 70ft, providing reliable monitoring without interruptions.
- Dual Screen: Can connect two cameras, allowing for versatile monitoring and added safety while reversing.
- Auto Pair: Pair the system without leaving the cab, offering convenience and ease of use.
- 130° Ultra Wide Viewing Angle: Expands your field of vision, reducing blind spots and enhancing safety during maneuvers.
- Waterproof Backup Camera: Equipped with infrared night vision, ensuring visibility and durability in various weather conditions.
| Feature | Details |
|---|---|
| Model | RVS-2CAM-SC-02 |
| Camera Type | Backup Camera |
| Video Resolution | 540 TVL |
| Monitor Size | 7 inches |
| Mounting Type | Suction Cup |
| Viewing Angle | 130° |
| Wireless Range | Up to 70ft |
| Night Vision | Infrared |
| Waterproof Rating | IP67 |
SKU  | RVS-2CAM-SC-02 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Backup Camera: 15.24m/ 50ft, Side Camera: 9.14m/ 30ft |
| Minimum Scene Illumination | 0 LUX (IR ON) |
| Operating Humidity | Side Camera: RH 95% MAX |
| Operating Temperature | Side Camera: -40°C~+80°C |
| S/N Ratio | More Than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1VP.P 75OHM |
| Weatherproof | IP68 |
| Digital Noise Reduction | INTERNAL SYNCHRONIZATION |
| Angle of View | Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
