RVS Systems RVS-2CAM-A-12 Wireless Backup Camera with 7" Dual Screen Display, Left Side Camera, 2.1mm Lens
SKU
RVS-2CAM-A-12
Model No
RVS-2CAM-A-12
$458.55
Product Highlights
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle

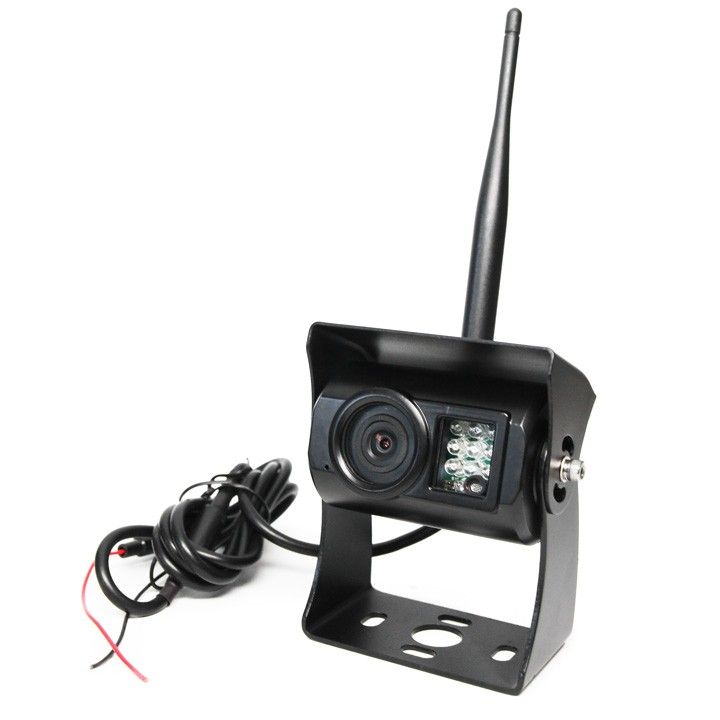

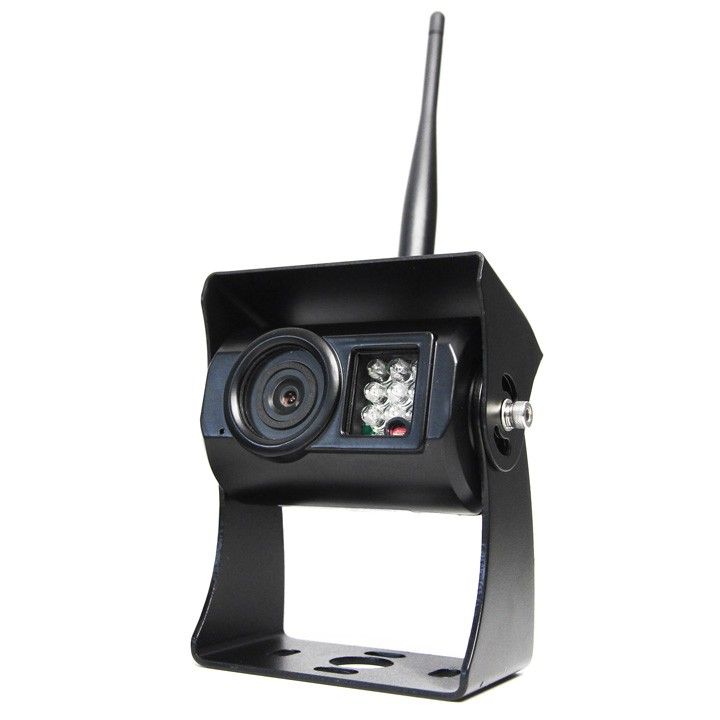

- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert

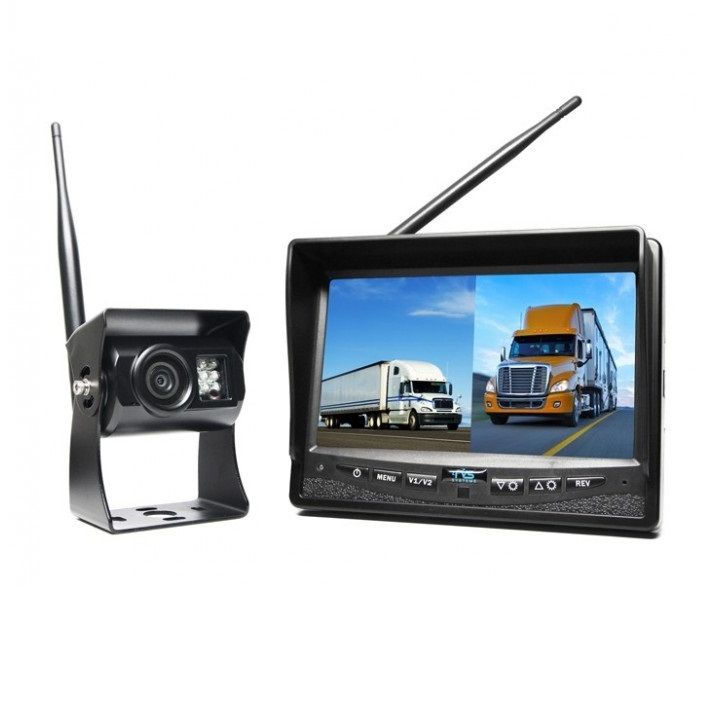

The RVS-2CAM-A-12 from RVS Systems is a wireless dual camera system that features a digital wireless connection and a split-screen monitor for simultaneous viewing of two cameras. The built-in auto pair technology allows for easy connection without leaving your cab, while the advanced wireless technology ensures no interference up to 70 feet. This system can be customized by choosing your preferred power source and camera setup, making it a versatile choice for all drivers. With waterproof cameras equipped with infra-red night vision, and a 7" TFT LCD monitor, this system enhances safety and visibility when backing up or maneuvering your vehicle.
RVS Systems RVS-2CAM-A-12 Camera Features
- Digital Wireless Connection: Experience clear video transmission without interference for distances up to 70ft, enhancing safety during reversing maneuvers.
- Dual Screen: The included 7" monitor allows connection of two cameras, providing a comprehensive view and minimizing blind spots.
- Auto Pair Technology: Easily pairs the wireless system without stepping outside the vehicle, saving time and hassle.
- 130° Ultra Wide Viewing Angle: Expands your view to ensure maximum visibility and safety while backing up.
- Waterproof Backup Camera: With an IP68 rating, these cameras are designed to withstand various weather conditions and include infra-red night vision for enhanced visibility in low-light situations.
RVS Systems RVS-2CAM-A-12 Detailed Specifications
| Feature | Details |
|---|---|
| Monitor Size | 7" TFT LCD |

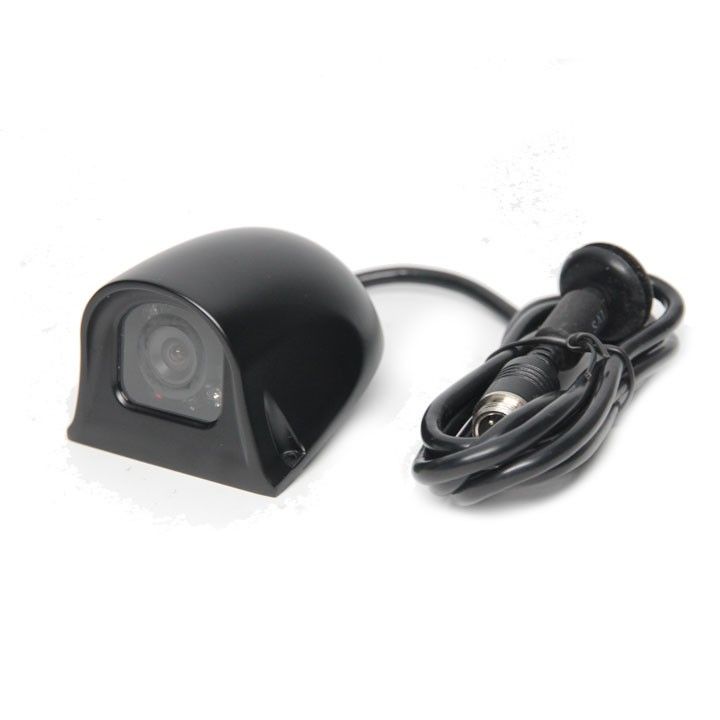

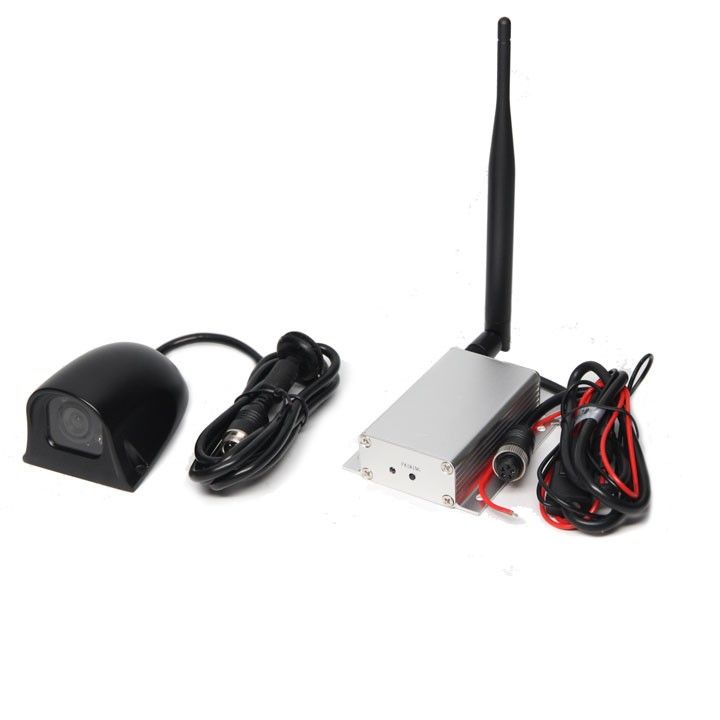

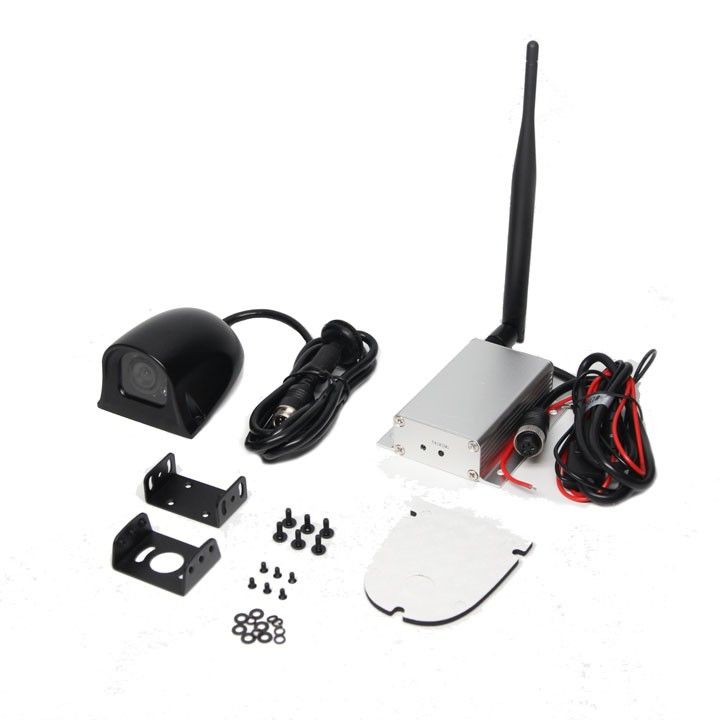

| Camera Type | Wireless Side Camera (RVS-775L) |
| Camera Lens | 2.1mm |
| Video Resolution | 250,000 pixels |
| Viewing Angle | 120° angle |
| Night Vision | Infra-red illuminators for low-light visibility |
| Weather Resistance | IP68 rated |

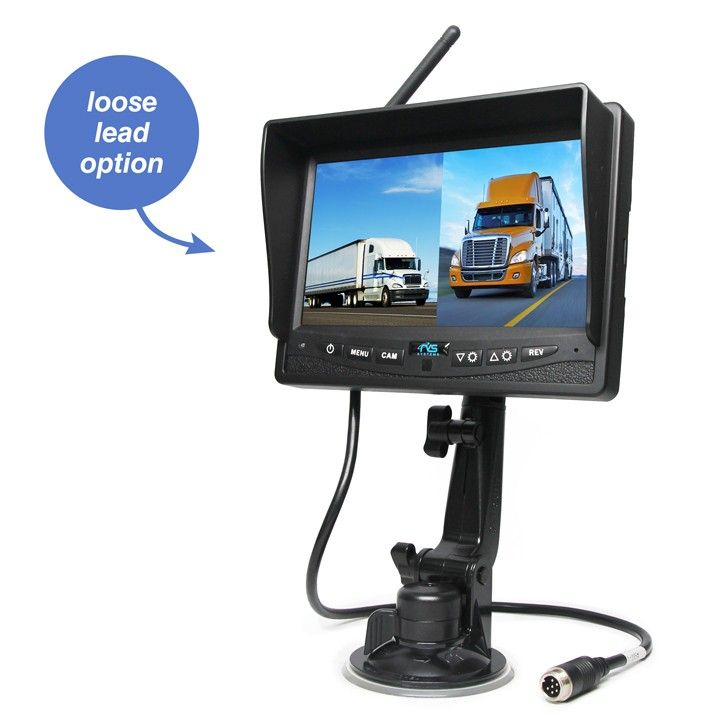

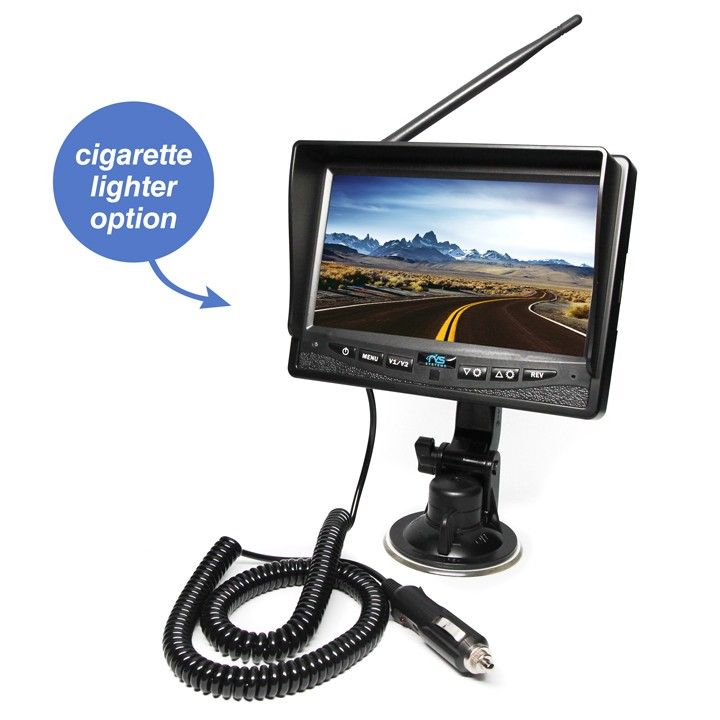

| Power Options | Cigarette lighter or direct to fuse box |
SKU  | RVS-2CAM-A-12 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

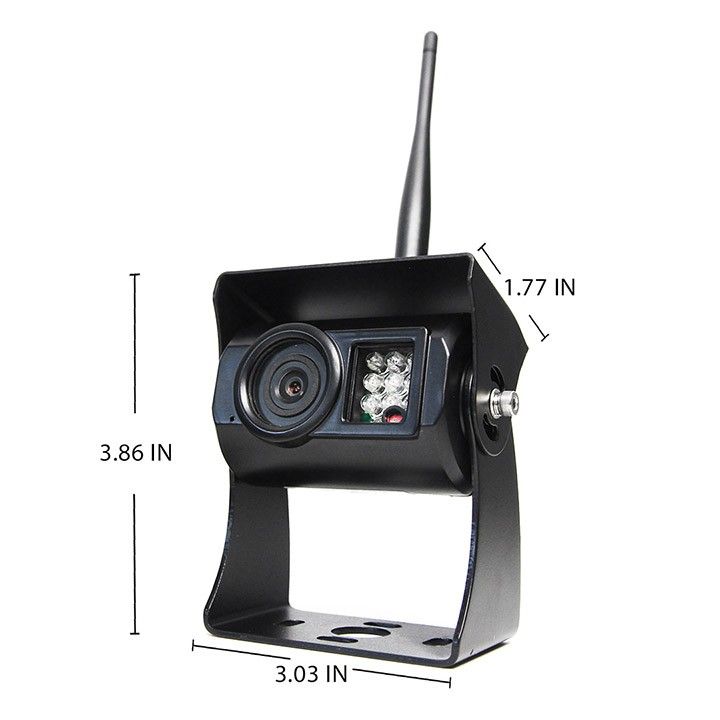

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
