RVS Systems RVS-2CAM-A-10 Wireless Backup Camera with 7" Dual Screen Display, Right Side Camera, 2.1mm Lens
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Camera with Infra-Red Night Vision
RVS Systems RVS-2CAM-A-10 Wireless Backup Camera Features

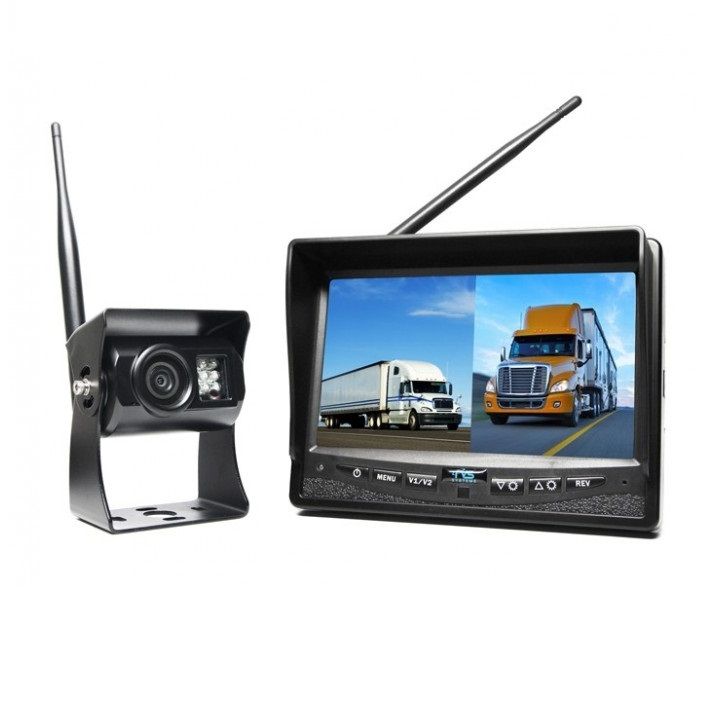

The RVS-2CAM-A-10 from RVS Systems is a wireless dual camera system that comes with a digital wireless connection and a split screen monitor to view two cameras at the same time. Built-in auto pair enables you to pair the wireless system without having to leave your cab. With this new wireless technology, we guarantee no interference for up to 70ft!

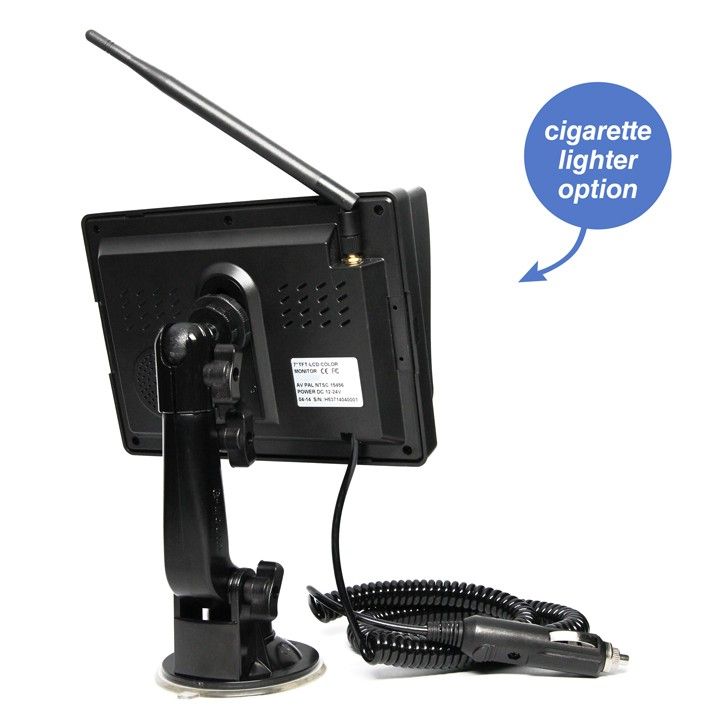

In this configurable product, use the sidebar options to configure a wireless backup camera system just the way you like. Choose between powering your monitor with a cigarette lighter plug or with loose wires straight to the fuse box and select your desired camera setup as well. All cameras are completely waterproof and come with infra-red night vision. The RVS-2CAM has two viewing options. The camera view can be triggered when the vehicle is put into reverse, or remain on continuously.
The RVS-2LW-MNTR is a 7" TFT LCD Monitor.

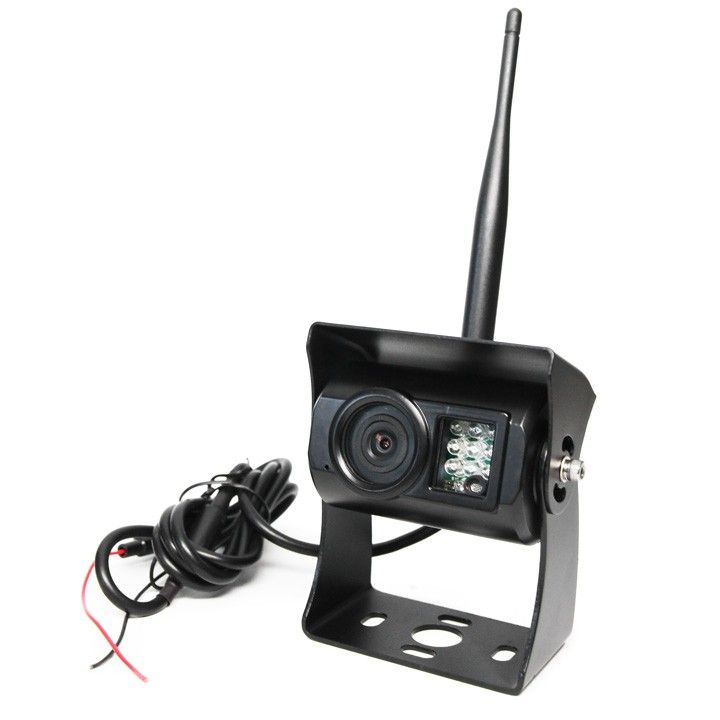

The RVS-DS1 is a 130° Wireless Backup Camera with 9 infrared night vision lights and a completely weatherproof encasing that can be added to the RVS-2CAM and RVS-4CAM wireless systems.

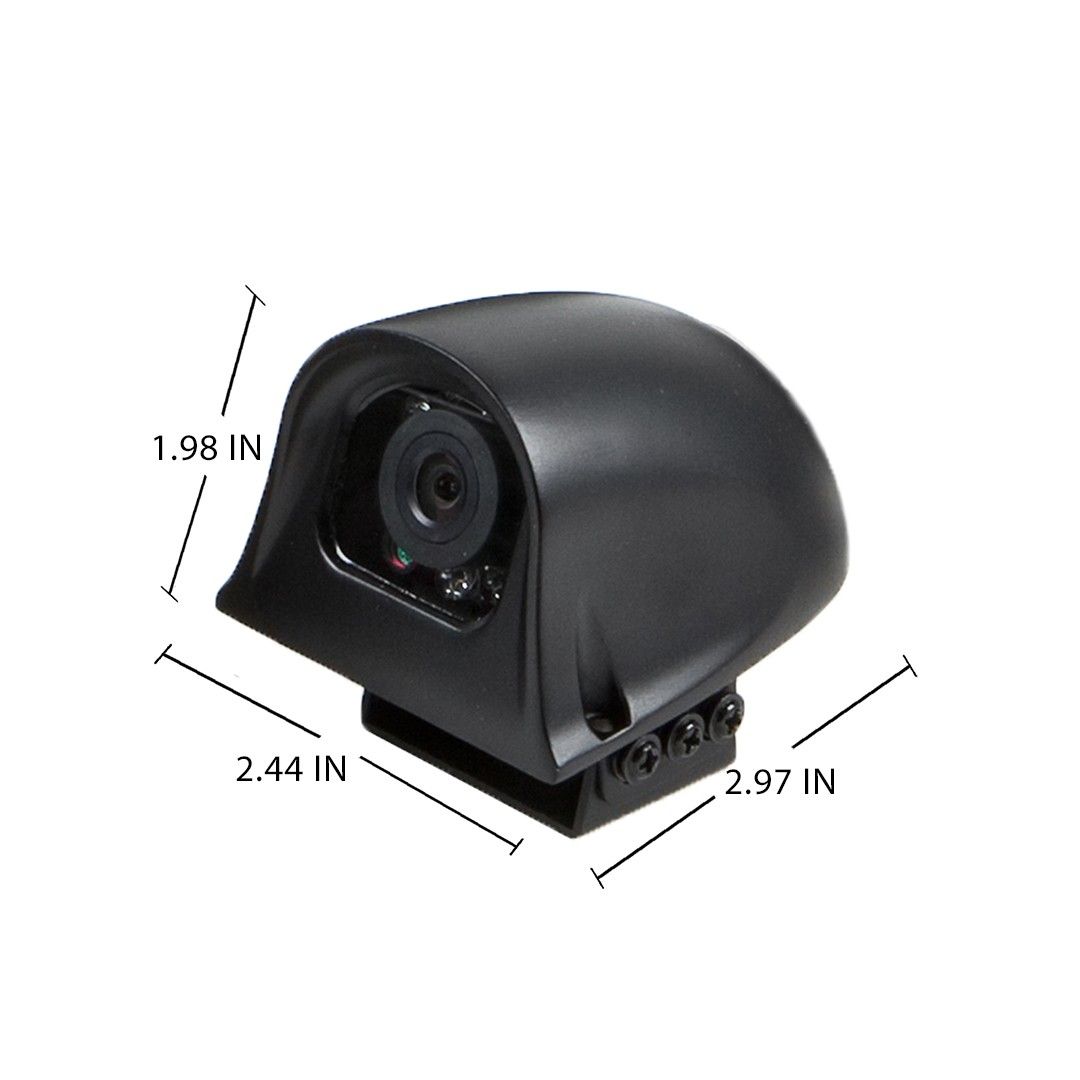

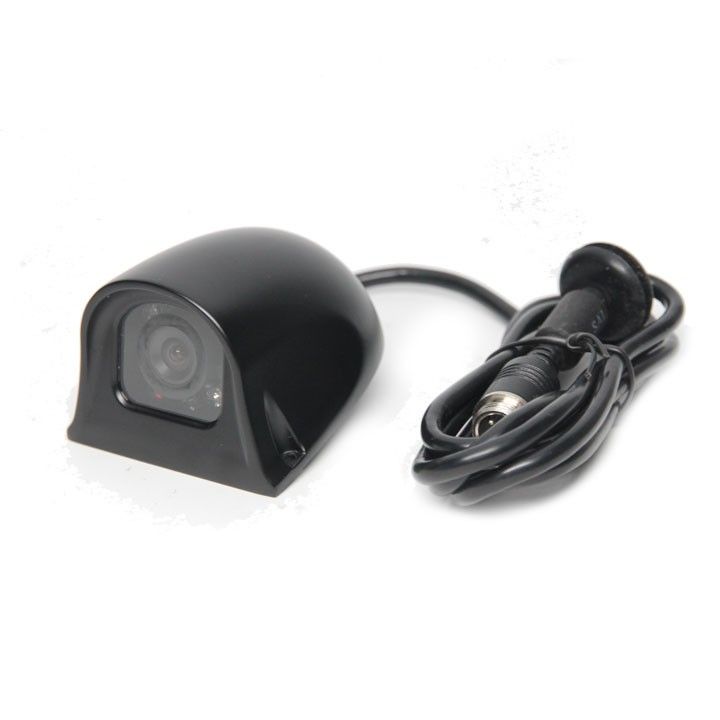

The RVS-775R is a 120° angle side camera which is the clearest and greatest camera available on the market today. It boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enables you to see in total darkness. The casing of the camera has an IP68 rating which can withstand all weather conditions.
Features
- Digital Wireless Connection: Enjoy a reliable wireless connection for up to 70ft, eliminating the hassle of wires.
- Dual Screen: Capability to connect two cameras for enhanced coverage and visibility.
- Auto Pair: Effortless pairing of the system without needing to exit your vehicle.
- 130° Ultra Wide Viewing Angle: Comprehensive viewing capabilities, minimizing blind spots.
- Waterproof Backup Camera: Designed for all weather conditions, featuring infra-red night vision for clear visibility at night.
RVS Systems RVS-2CAM-A-10 Detailed Specifications
| Camera Model | RVS-2CAM-A-10 |
| Monitor Type | 7" TFT LCD |
| Maximum Connection Distance | 70 feet (Digital Wireless) |
| Camera Viewing Angle | 130° |
| Lens Specification | 2.1 mm |
| Infra-Red Night Vision | Yes (9 Infra-red lights) |
| Waterproof Rating | IP68 |
| Power Options | Cigarette lighter or direct wiring to fuse box |
SKU  | RVS-2CAM-A-10 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |
| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
RVS-2CAM-A-10-Specsheet RVS-DS1-Specsheet RVS-775R-Specsheet RVS-2CAM-A-10-Installation-Manual
