RVS Systems RVS-2CAM-A-09 Wireless Backup Camera with 7" Dual Screen Display, Left Side Camera, 2.1mm Lens
SKU
RVS-2CAM-A-09
Model No
RVS-2CAM-A-09
$515.54
Product Highlights
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert

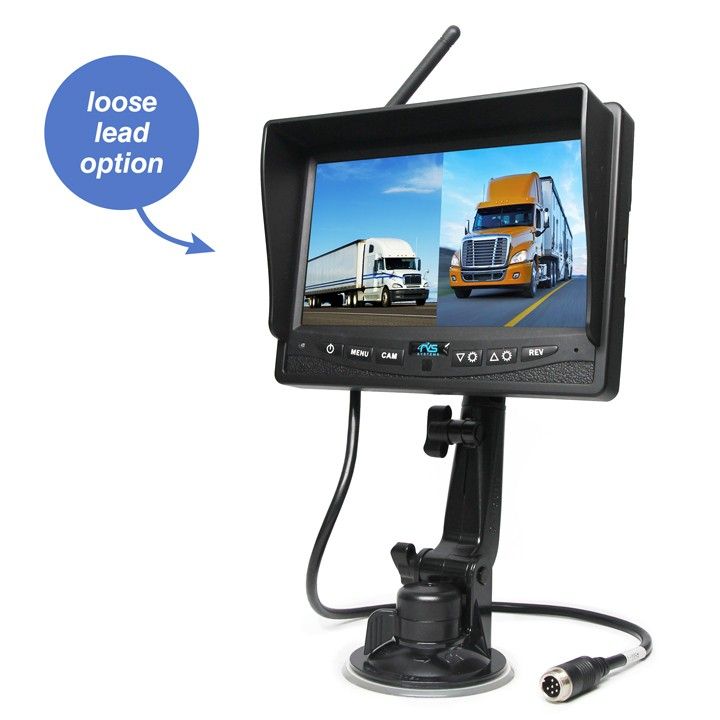

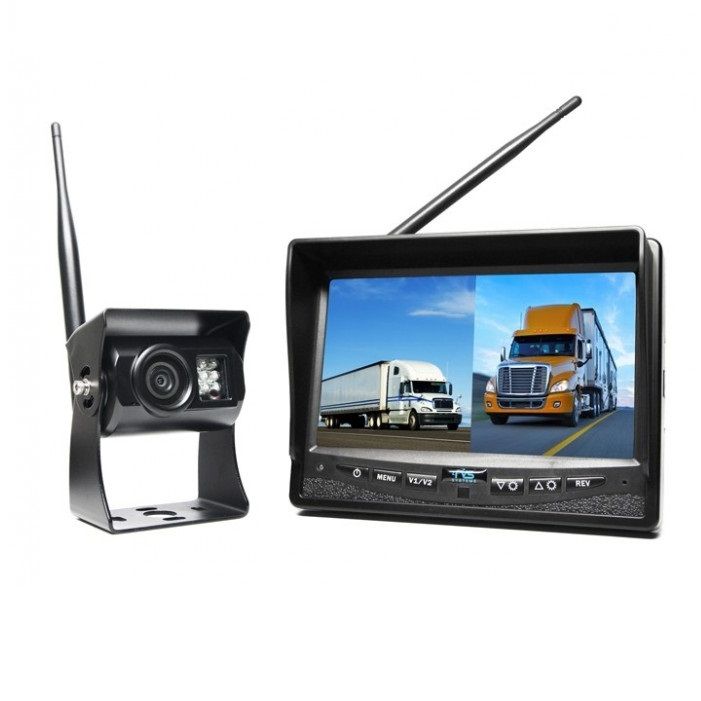

The RVS-2CAM-A-09 from RVS Systems is a wireless dual camera system that features a digital wireless connection and a split screen monitor, allowing you to view two cameras simultaneously. Its built-in auto pair enables easy pairing without leaving your cab, and the system guarantees no interference for up to 70ft. This configurable product lets you customize your wireless backup camera system, including powering options and camera setups, all while providing waterproof cameras with infra-red night vision.
RVS Systems RVS-2CAM-A-09 Camera Features
- Digital Wireless Connection: Enjoy reliable signal transmission with no interference for up to 70ft, providing a clear view without interruptions.
- Dual Screen: Connect two cameras simultaneously for enhanced visibility and safety while reversing or changing lanes.
- Auto Pair: Quickly pair the system without the hassle of leaving your cab, making setup easier than ever.
- 130° Ultra Wide Viewing Angle: Maximize your field of vision to eliminate blind spots when backing up or maneuvering your vehicle.
- Waterproof Backup Camera: Designed for all weather conditions, featuring infra-red night vision for optimal performance in low light.
RVS Systems RVS-2CAM-A-09 Detailed Specifications
| Product Model | RVS-2CAM-A-09 |
| Camera Type | Wireless Dual Camera System |
| Monitor Size | 7" TFT LCD |
| Viewing Options | Trigger during reverse or continuously |
| Camera Lens | 2.1mm |
| Image Resolution | 250,000 pixels |
| Night Vision | 9 Infra-Red Illuminators |
| Water Resistance | IP68 rating |
| Viewing Angle | 130° for backup camera, 120° for side camera |
| Wireless Range | Up to 70ft |
SKU  | RVS-2CAM-A-09 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

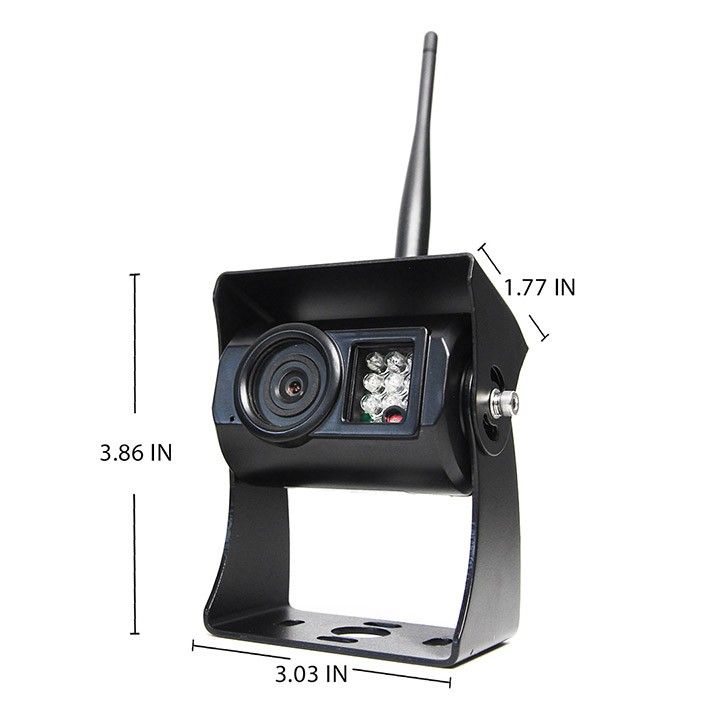

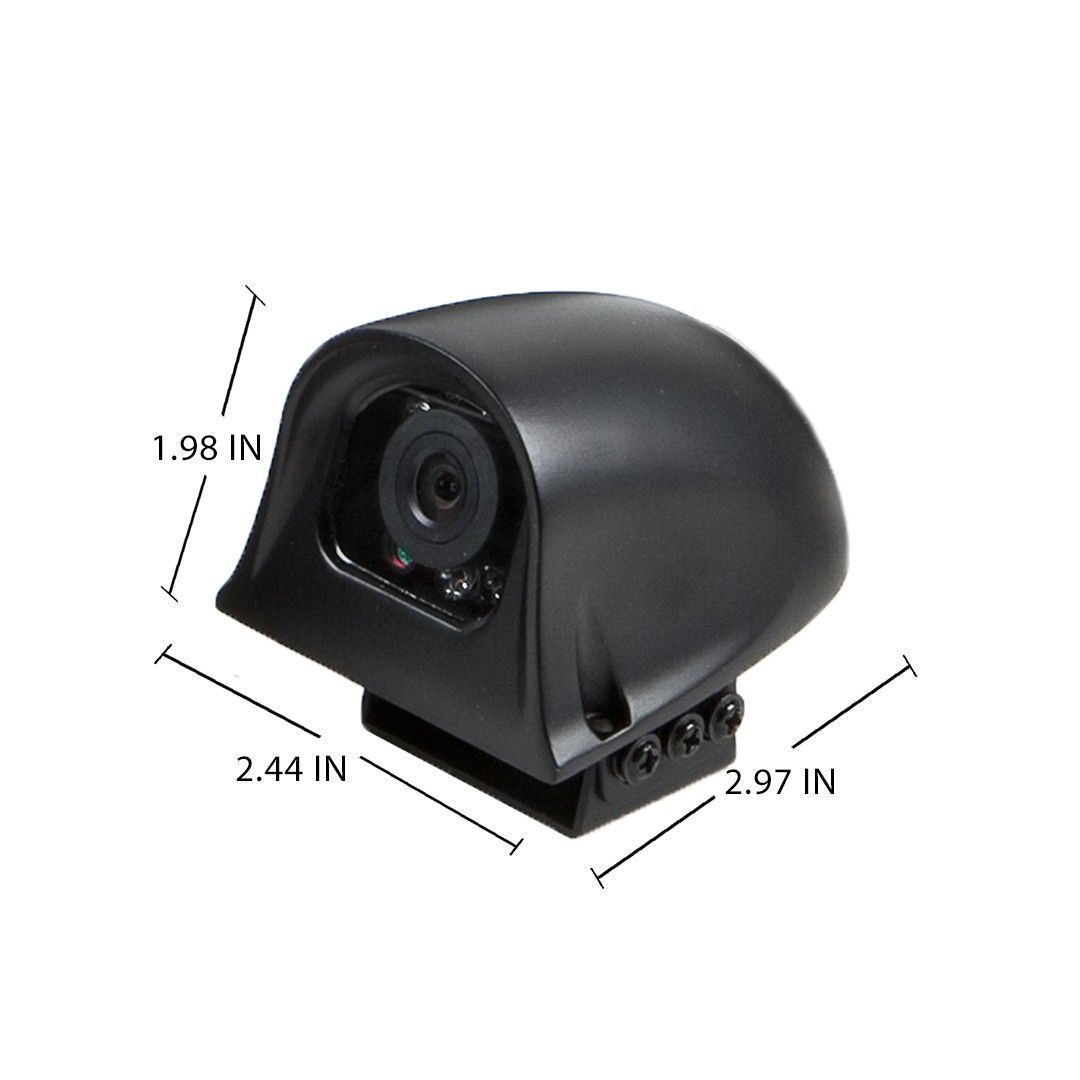

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
