RVS Systems RVS-2CAM-A-06 Wireless Backup Camera with 7" Dual Screen Display, Right Side Camera, 2.1mm Lens
SKU
RVS-2CAM-A-06
Model No
RVS-2CAM-A-06
$445.19
Product Highlights
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert

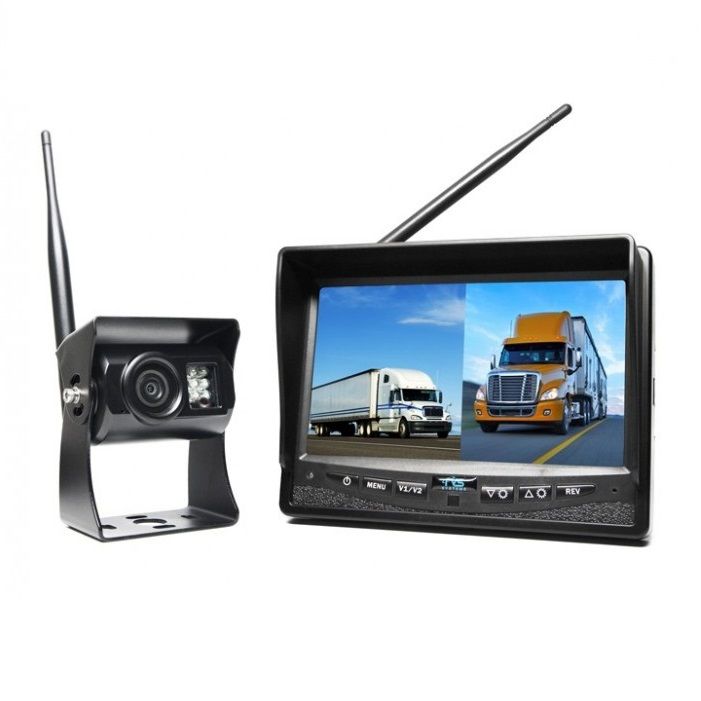

The RVS-2CAM-A-06 from RVS Systems is a wireless dual camera system that offers a digital wireless connection and a split screen monitor, allowing you to view two cameras at the same time. The built-in auto pair feature enables easy pairing without leaving your cab, ensuring a hassle-free installation. With a range of up to 70 feet and completely waterproof cameras equipped with infra-red night vision, this system optimizes safety and visibility for any vehicle.
RVS Systems RVS-2CAM-A-06 Camera Features
Features
- Digital Wireless Connection: Enjoy a stable connection up to 70ft, ensuring clear video transmission without interference.
- Dual Screen: Connect two cameras simultaneously for comprehensive rear and side visibility.
- Auto Pair: Simplifies installation by allowing you to pair the system without leaving the comfort of your vehicle.
- 130° Ultra Wide Viewing Angle: Maximize your field of view to reduce blind spots while reversing or changing lanes.
- Waterproof Backup Camera with Infra-Red Night Vision: Feel confident in all weather conditions and low-light scenarios with reliable 24/7 visibility.
RVS Systems RVS-2CAM-A-06 Detailed Specifications
| Product Type | Wireless Backup Camera System |
| Monitor Size | 7" TFT LCD Monitor |
| Camera Lens | 2.1mm Lens with 250,000 Pixels |
| Camera Angle | 120° Angle for Side Camera |
| Viewing Modes | Triggered by Reverse Gear or Continuous Display |
| IP Rating | IP68 Waterproof Rating |
| Infra-Red Illuminators | 9 Infra-Red Lights for Night Vision |
| Connection Type | Digital Wireless |
| Maximum Wireless Range | 70ft |
SKU  | RVS-2CAM-A-06 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

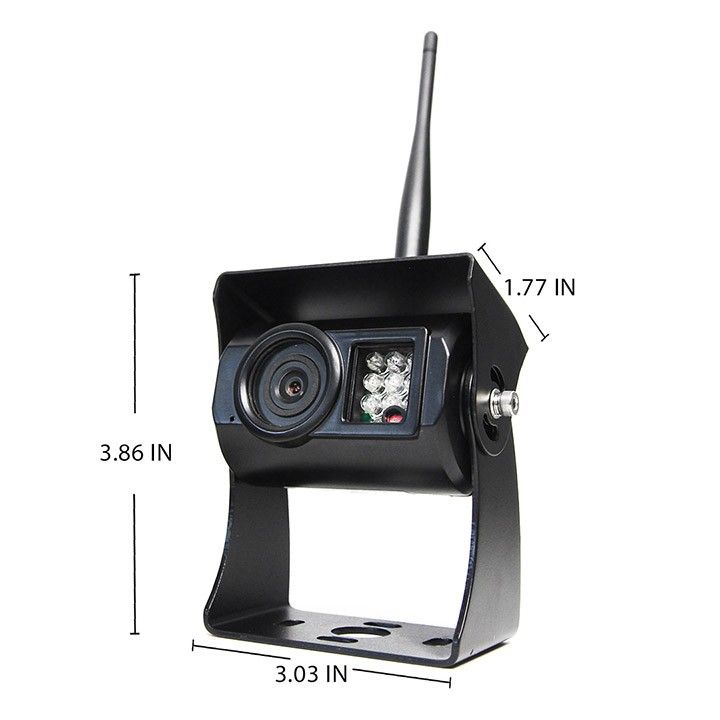

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
