RVS Systems RVS-2CAM-A-05 Wireless Backup Camera with 7" Dual Screen Display, Left Side Camera, 2.1mm Lens
SKU
RVS-2CAM-A-05
Model No
RVS-2CAM-A-05
$445.19
Product Highlights
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert

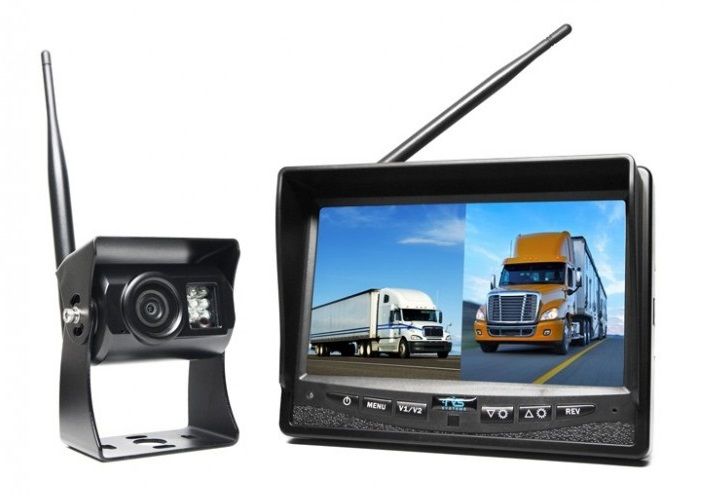

The RVS-2CAM-A-05 from RVS Systems is a wireless dual camera system that features a digital wireless connection and a split screen monitor for simultaneous viewing of two cameras. It offers built-in auto pairing for effortless setup, a range of up to 70 feet without interference, and customizable power options. With waterproof cameras equipped with infra-red night vision, this system ensures safe backing in all conditions. Experience enhanced visibility with the clearest side camera on the market, designed to withstand harsh weather.
RVS Systems RVS-2CAM-A-05 Camera Features
- Digital Wireless Connection: Ensures clear video transmission up to 70 feet, reducing cable clutter and installation complexity.
- Dual Screen Display: The 7" LCD monitor can connect two cameras, providing comprehensive visibility for enhanced safety while reversing.
- Auto Pair Feature: Facilitates easy system pairing without leaving your cab, saving you time and effort.
- 130° Ultra Wide Viewing Angle: Offers a broader perspective, minimizing blind spots and improving overall rear visibility.
- Waterproof Design: Cameras are fully waterproof and equipped with infra-red technology, allowing for reliable operation in all weather conditions and visibility at night.
RVS Systems RVS-2CAM-A-05 Detailed Specifications
| Camera Type | Wireless Dual Camera System |
| Monitor Size | 7" TFT LCD |
| Camera Lens | 2.1mm |
| Camera Resolution | 250,000 pixels |
| Viewing Angle | 130° |
| Infra-Red Illuminators | 9 for night vision |

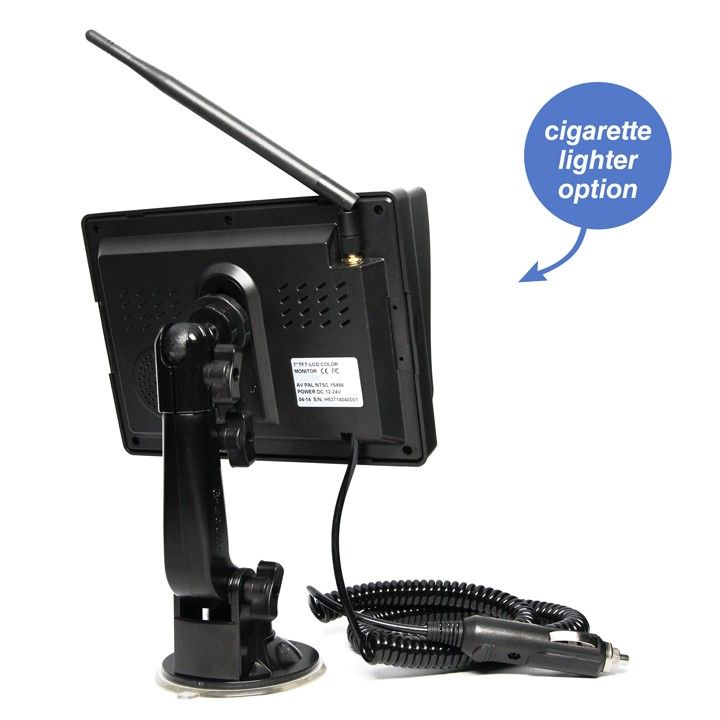

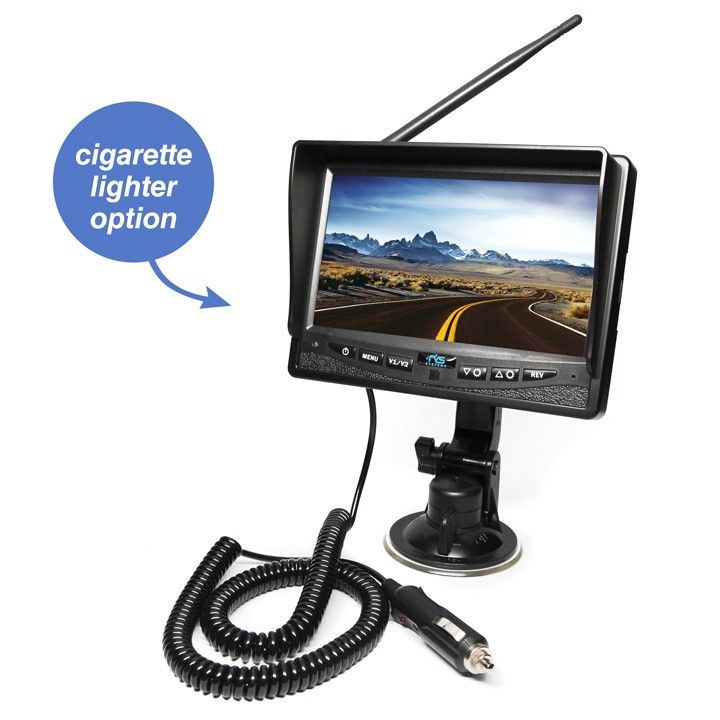

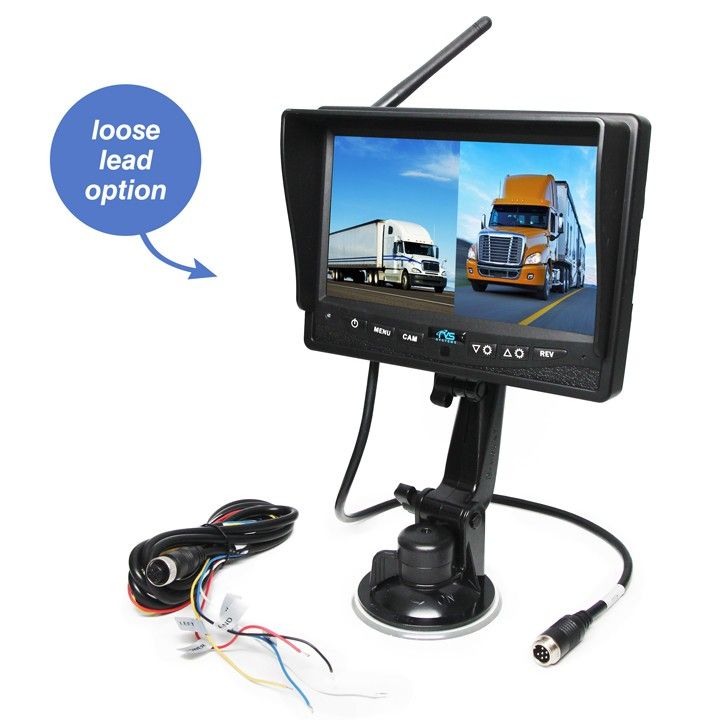

| Power Options | Cigarette lighter plug or direct connection to fuse box |
| Waterproof Rating | IP68 |
| Effective Range | Up to 70 feet |
| Night Vision Capability | Yes |
SKU  | RVS-2CAM-A-05 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

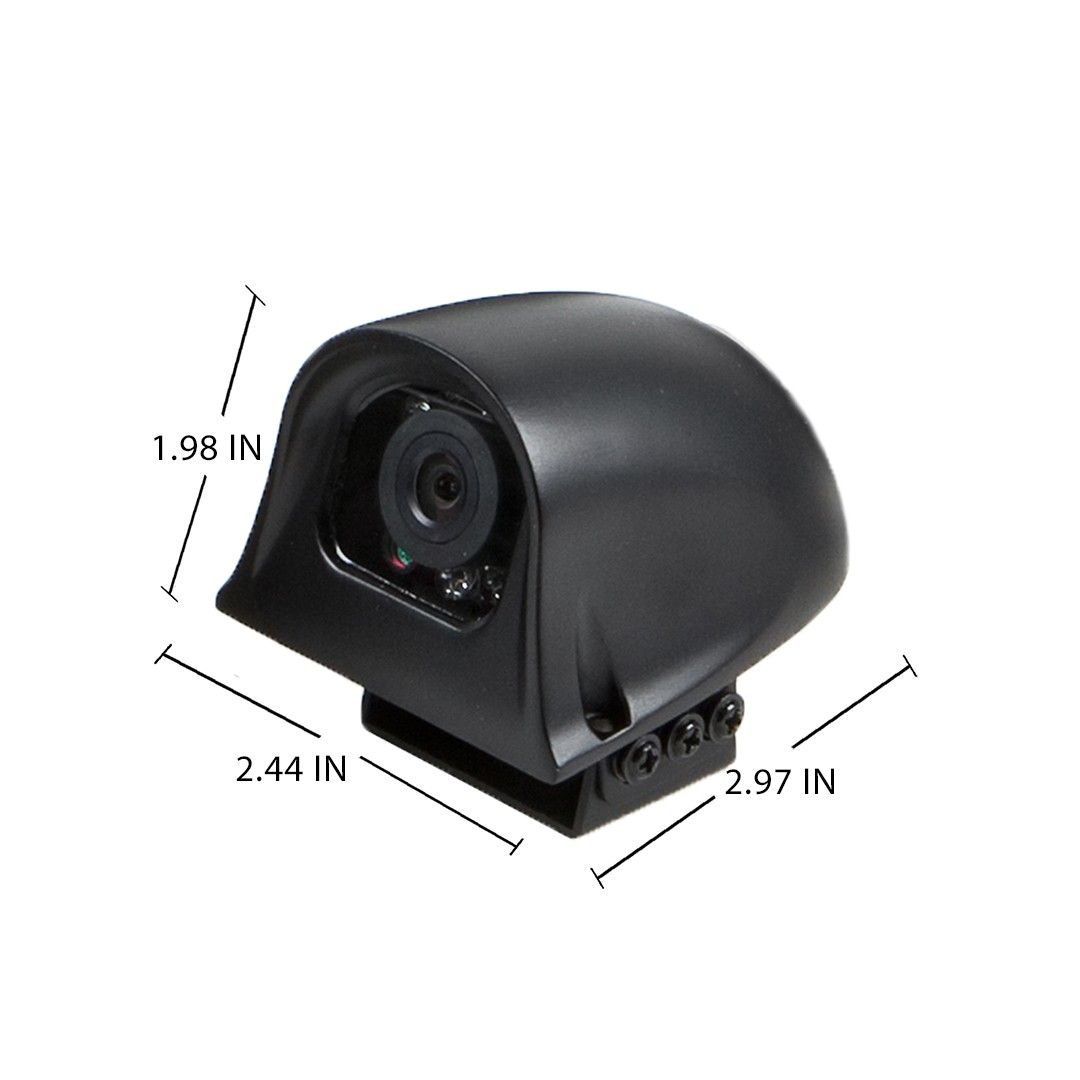

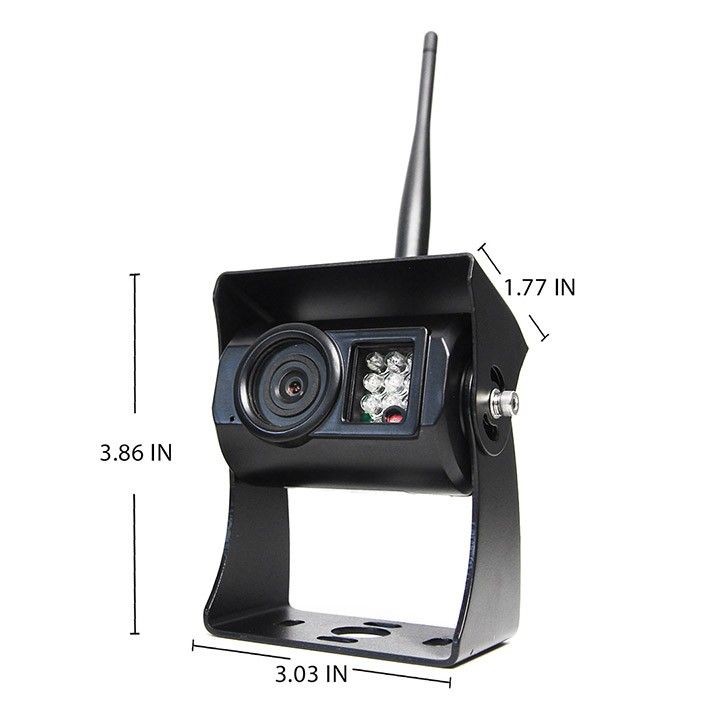

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
