RVS Systems RVS-2CAM-A-03 Wireless Backup Camera with 7" Dual Screen Display, Right Side Camera, 2.1mm Lens
SKU
RVS-2CAM-A-03
Model No
RVS-2CAM-A-03
$515.54
Product Highlights
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle

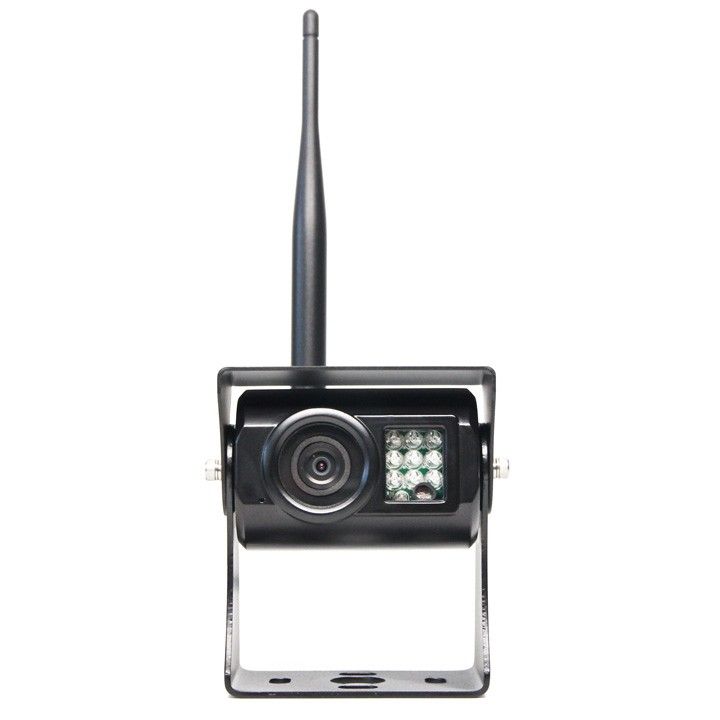

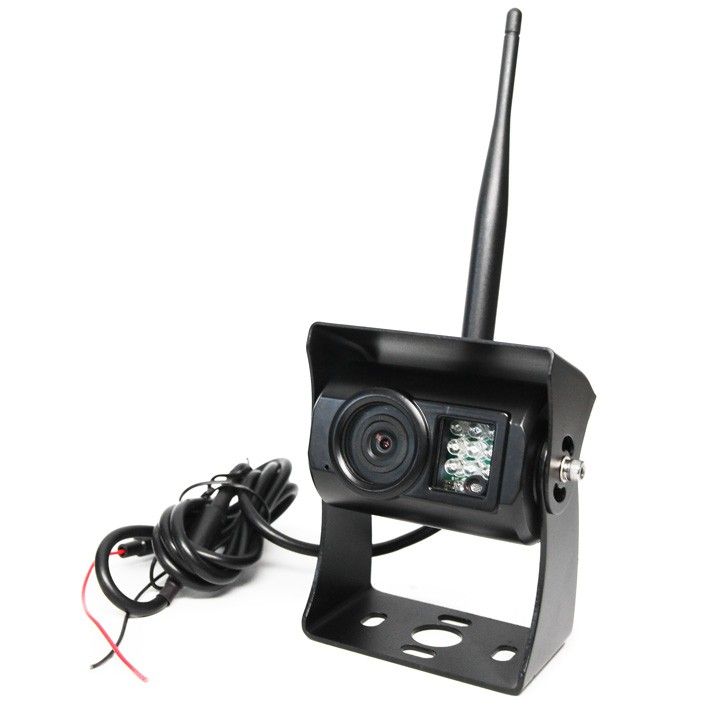

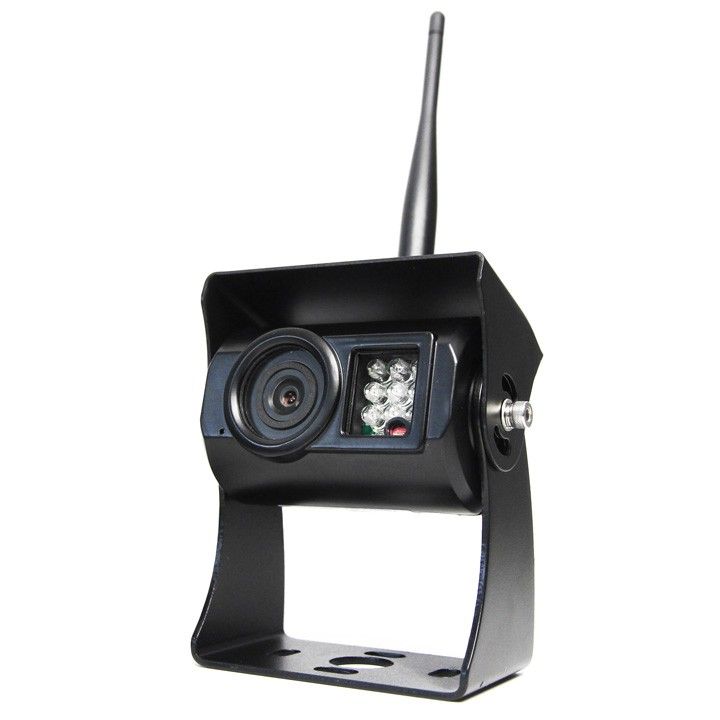

- Waterproof Backup Camera with Infra-Red Night Vision
Speak to an expert

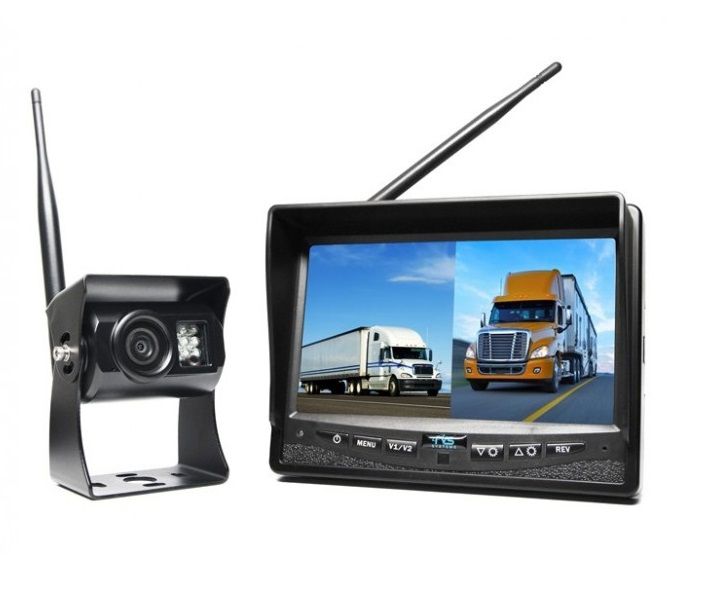

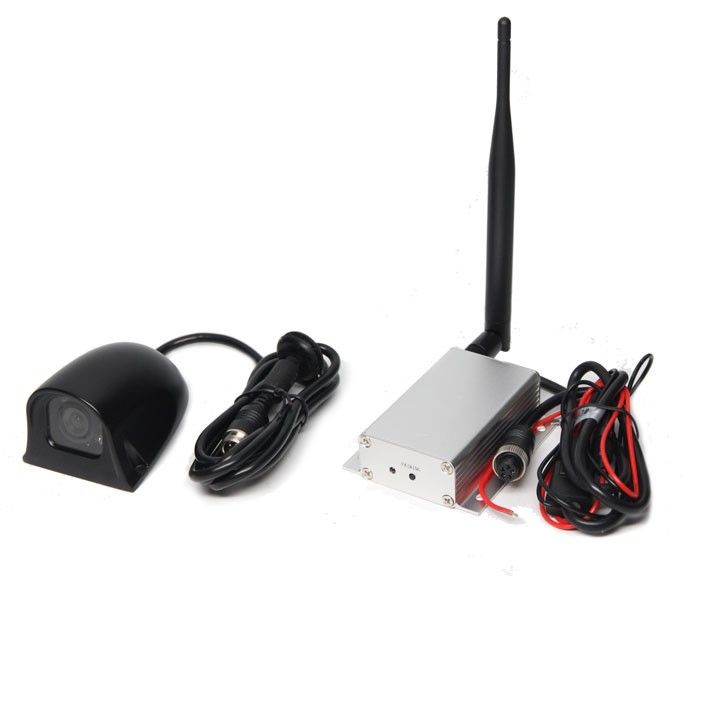

The RVS-2CAM-A-03 from RVS Systems is a wireless dual camera system that features a digital wireless connection and a split screen monitor, allowing you to view two cameras simultaneously. With built-in auto pairing, you can easily connect the system from inside your cab. Enjoy a guaranteed interference-free experience for up to 70ft! This customizable product lets you choose how to power your monitor and select your preferred camera setup. All cameras are waterproof and equipped with infra-red night vision. Plus, the RVS-2CAM offers two viewing options: activation upon shifting into reverse or continuous display.
RVS Systems RVS-2CAM-A-03 Camera Features
- Digital Wireless Connection: Enjoy a seamless connection for video transmission up to 70ft without interference.
- Dual Screen Capability: View two cameras at once on a single monitor for enhanced safety and awareness.
- Auto Pairing: Easily pair the system without exiting your vehicle, making setup fast and convenient.
- 130° Ultra Wide Viewing Angle: Maximizes your field of vision for safer maneuvering in tight spaces.
- Waterproof Design: Built to withstand all weather conditions while providing reliable performance.
RVS Systems RVS-2CAM-A-03 Detailed Specifications
| Product Type | Wireless Dual Camera System |
| Monitor Size | 7" TFT LCD |
| Camera Angle | 130° (RVS-DS1) & 120° (RVS-775R) |
| Night Vision | 9 Infra-Red Lights |
| Camera Waterproof Rating | IP68 |
| Pairing Method | Auto Pair |
| Max Transmission Distance | 70ft |

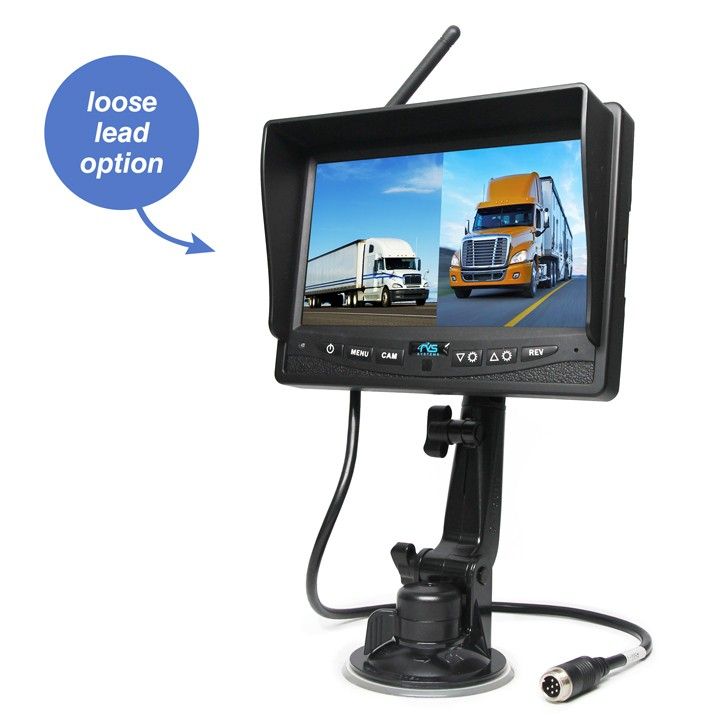

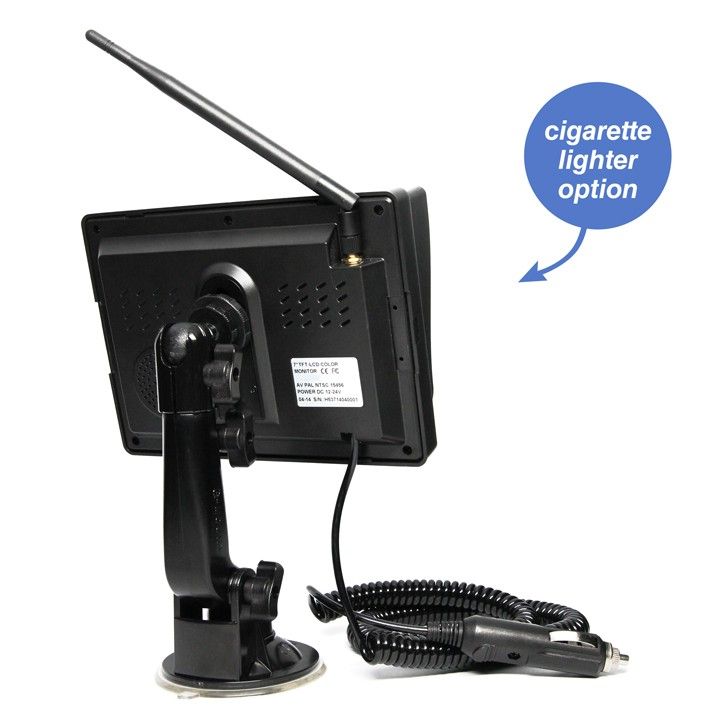

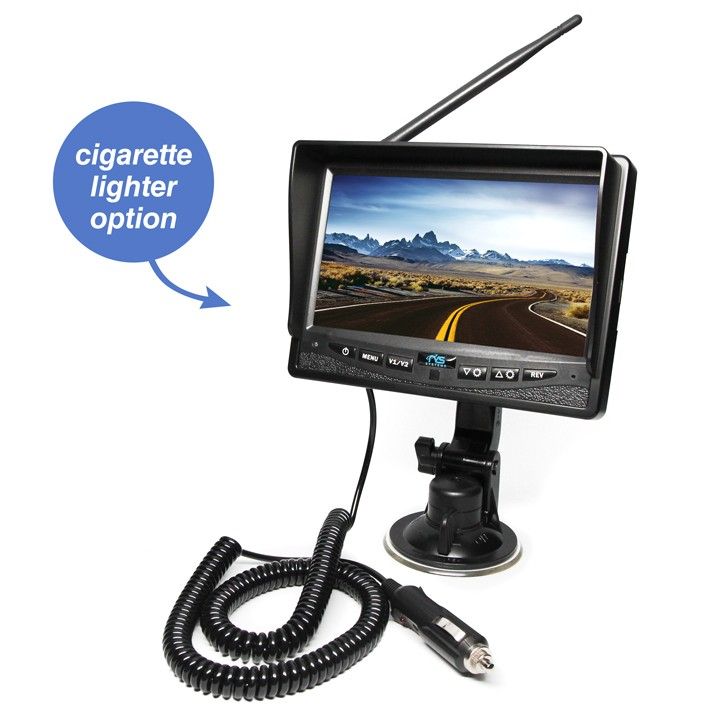

| Power Options | Cigarette Lighter Plug or Wired to Fuse Box |
SKU  | RVS-2CAM-A-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

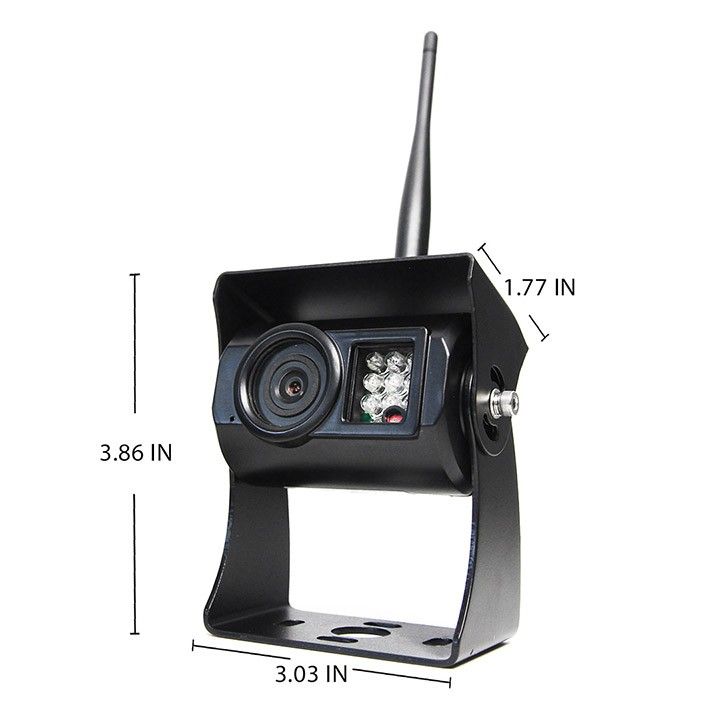

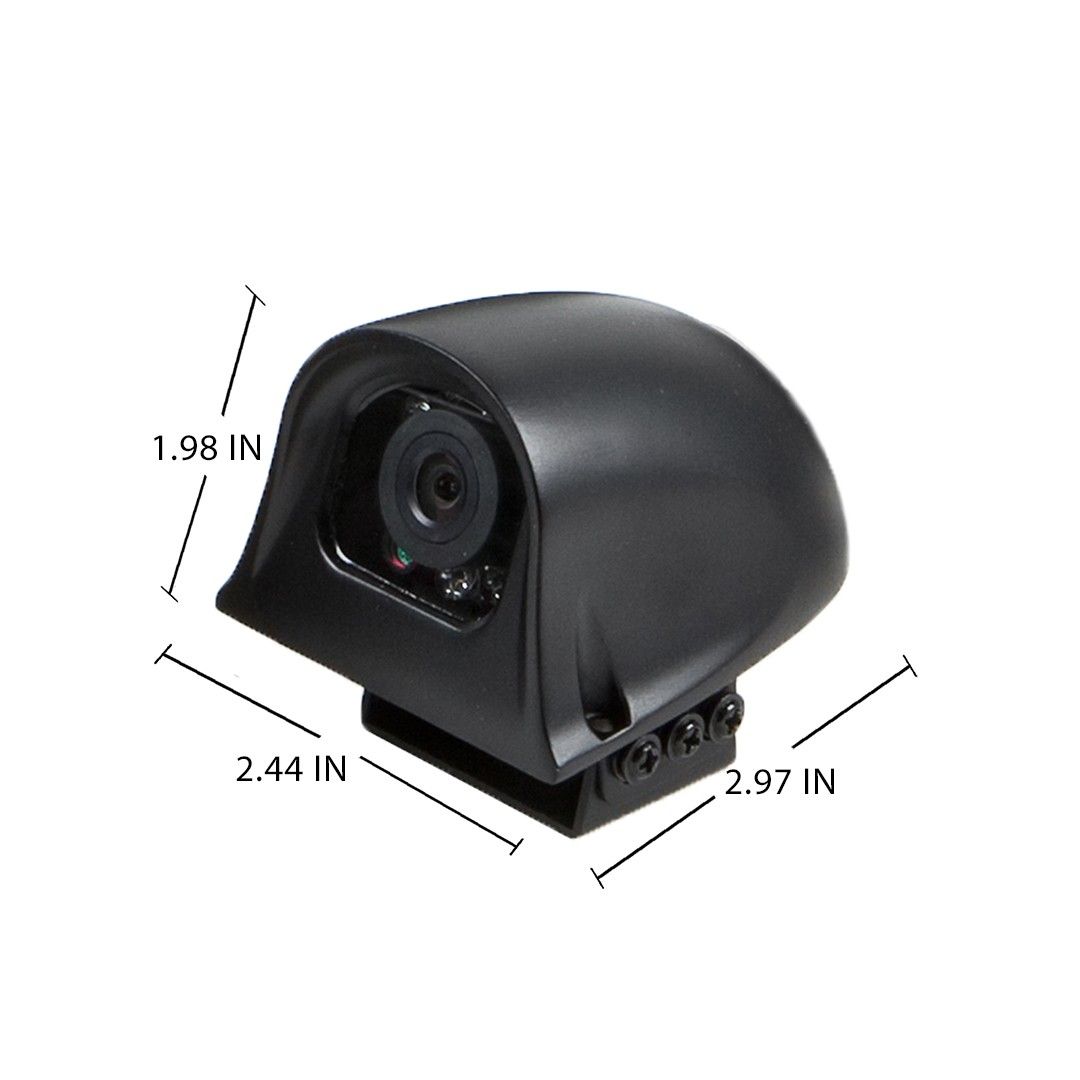

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
