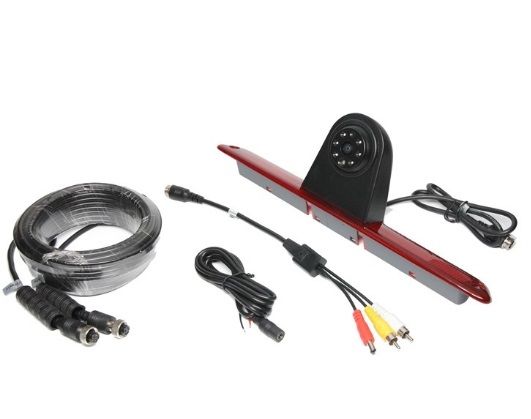

RVS Systems RVS-1016-05 600 TVL Mercedes Sprinter Third Brake Light Backup Camera, 33' Cable, RCA Adapter
SKU
RVS-1016-05
Model No
RVS-1016-05
$222.59
Product Highlights
- Makes your vehicle FMVSS 111 Compliant
- Weatherproof - IP68 Rating
- 170° ultra-wide viewing angle
- Replaces third brake light for a factory-like install
Speak to an expert
The RVS-1016 Mercedes Sprinter Third Brake Light Backup Camera is the ideal solution for enhancing the safety and compliance of your vehicle. Designed specifically for 2007-2018 Mercedes Sprinter Vans, this backup camera features an ultra-wide 170° viewing angle and robust weatherproof construction, ensuring reliability in various conditions. With included installation accessories, you can easily integrate this camera into your vehicle's design while meeting FMVSS 111 viewing requirements.
RVS Systems RVS-1016-05 Camera Features
- FMVSS 111 Compliance: Ensures your vehicle meets safety standards for increased peace of mind.
- Weatherproof Design: The IP69K rating protects against moisture and dust, making it suitable for all weather conditions.
- 170° Ultra-Wide Viewing Angle: Provides a comprehensive view of your surroundings, greatly reducing blind spots.
- Seamless Installation: Replaces the third brake light, giving your vehicle a factory-like appearance with minimal effort.
RVS Systems RVS-1016-05 Detailed Camera Specifications
| Model: | RVS-1016-05 |
| Resolution: | 600 TVL |
| Cable Length: | 33 feet |
| Viewing Angle: | 170° |
| Weatherproof Rating: | IP69K |
| Infrared Illuminators: | 6 |
| Compatible Vehicles: | 2007-2018 Mercedes-Benz Sprinter Vans |
| Warranty: | 1 year |
| Power Connection: | 5 Pin Male to Male RCA with Male Power |
SKU  | RVS-1016-05 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12V |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Image Device | 1/4" SHARP CCD |
| Image Pixels-Effective | N: 510×492 Pixels P: 500×582 Pixels |
| IR Distance | 10.66m / 35ft |
| Minimum Scene Illumination | 0LUX (LED ON) |
| Operating Temperature | -40°C ~ +80°C |
| Power Consumption | <3W |
| S/N Ratio | ≥ 48dB |
| Weatherproof | IP68 |
| Angle of View | 170° |
| IR LEDs | 6PCS |
| Auto Gain Control | Yes |
