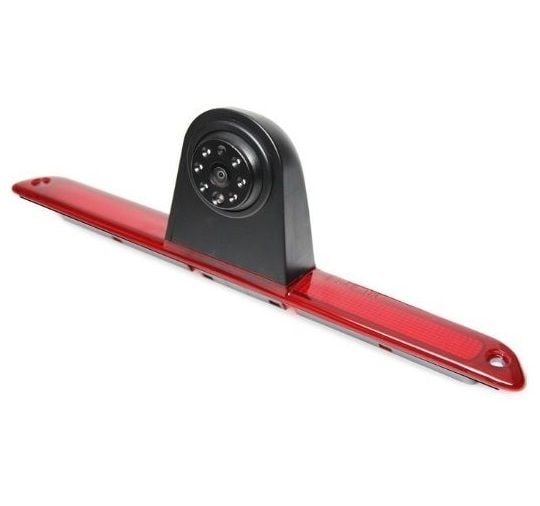

RVS Systems RVS-1016-04 600 TVL Mercedes Sprinter Third Brake Light Backup Camera, 66' Cable, RCA Adapter
SKU
RVS-1016-04
Model No
RVS-1016-04
$222.59
Product Highlights
- Makes your vehicle FMVSS 111 Compliant
- Weatherproof - IP68 Rating
- 170° ultra-wide viewing angle
- Replaces third brake light for a factory-like install
Speak to an expert
The RVS-1016 Mercedes Sprinter Third Brake Light Backup Camera is specially designed for 2007-2018 Mercedes-Benz Sprinter Vans, featuring an ultra-wide 170° viewing angle and all necessary installation components. This advanced camera ensures FMVSS 111 compliance, is fully weatherproof with an IP69K rating, and includes six infra-red illuminators for enhanced night visibility. Backed by a one-year warranty, this system enhances driver safety and convenience.
RVS Systems RVS-1016-04 Camera Features
- FMVSS 111 Compliance: Ensures your vehicle meets federal safety standards, enhancing legal assurance.
- Weatherproof - IP69K Rating: Protects against dust and water intrusion, ensuring durability in all weather conditions.
- 170° Ultra-wide Viewing Angle: Provides a comprehensive view of the area behind your vehicle, reducing blind spots for safer maneuvers.
- Factory-like Installation: Replaces your third brake light seamlessly, maintaining a clean and professional appearance.
RVS Systems RVS-1016-04 Detailed Specifications
| Model | RVS-1016-04 |
| Viewing Angle | 170° |
| Resolution | 600 TVL |
| Weatherproof Rating | IP69K |
| Cable Length | 66' |
| Infra-red Illuminators | 6 |
| Compatibility | 2007-2018 Mercedes-Benz Sprinter Vans |
| Warranty | 1 Year |
SKU  | RVS-1016-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12V |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Image Device | 1/4" SHARP CCD |
| Image Pixels-Effective | N: 510×492 Pixels P: 500×582 Pixels |
| IR Distance | 10.66m / 35ft |
| Minimum Scene Illumination | 0LUX (LED ON) |
| Operating Temperature | -40°C ~ +80°C |
| Power Consumption | <3W |
| S/N Ratio | ≥ 48dB |
| Weatherproof | IP68 |
| Angle of View | 170° |
| IR LEDs | 6PCS |
| Auto Gain Control | Yes |
