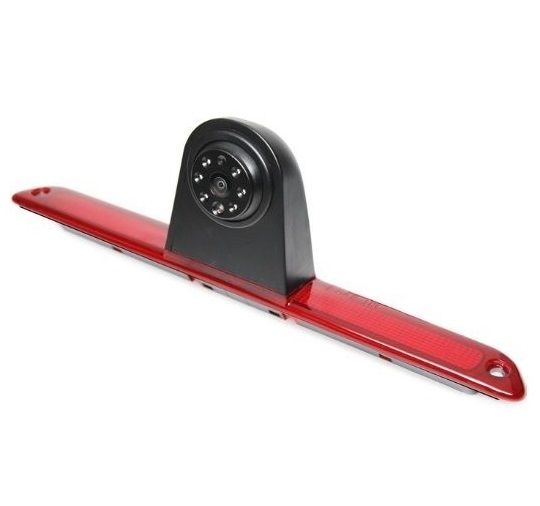

RVS Systems RVS-1016-03 600 TVL Mercedes Sprinter Third Brake Light Backup Camera, 16' Cable
SKU
RVS-1016-03
Model No
RVS-1016-03
$222.59
Product Highlights
- Makes your vehicle FMVSS 111 Compliant
- Weatherproof - IP68 Rating
- 170° ultra-wide viewing angle
- Replaces third brake light for a factory-like install
Speak to an expert

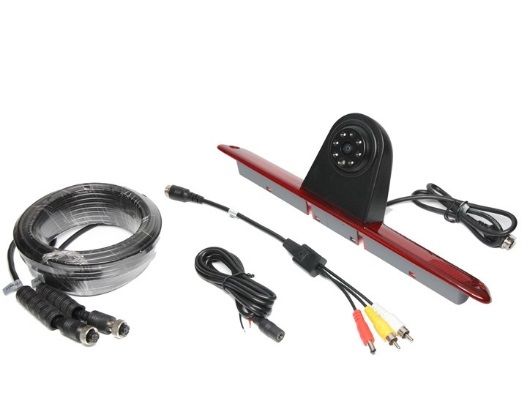

The RVS-1016 Mercedes Sprinter Third Brake Light Backup Camera is equipped with an ultra-wide 170° viewing angle and all the wires, connectors and mounts you will need. This advanced third brake light camera makes your Mercedes Sprinter compliant with the FMVSS 111 viewing requirement. The RVS-1016 is completely weatherproof with an IP69K rating and comes with six infra-red illuminators and a one year warranty. This camera works on 2007-2018 Mercedes-Benz Sprinter Vans. Comes with 16' Camera Cable with a double-sided Female Air-Craft Grade Connection
RVS Systems RVS-1016-03 Camera Features
- FMVSS 111 Compliance: Ensures your vehicle meets safety standards for an added peace of mind.
- Weatherproof - IP69K Rating: Protects against harsh weather conditions, ensuring durability and longevity.
- 170° Ultra-Wide Viewing Angle: Provides expansive visibility, allowing for safer driving and parking maneuvers.
- Factory-Like Install: Replaces the third brake light seamlessly, maintaining the vehicle's aesthetic.
RVS Systems RVS-1016-03 Detailed Specifications
| Viewing Angle | 170° |
| Weatherproof Rating | IP69K |
| Illuminators | Six Infra-Red |
| Camera Cable Length | 16' |
| Compatibility | 2007-2018 Mercedes-Benz Sprinter Vans |
| Warranty | One Year |
SKU  | RVS-1016-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12V |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Image Device | 1/4" SHARP CCD |
| Image Pixels-Effective | N: 510×492 Pixels P: 500×582 Pixels |
| IR Distance | 10.66m / 35ft |
| Minimum Scene Illumination | 0LUX (LED ON) |
| Operating Temperature | -40°C ~ +80°C |
| Power Consumption | <3W |
| S/N Ratio | ≥ 48dB |
| Weatherproof | IP68 |
| Angle of View | 170° |
| IR LEDs | 6PCS |
| Auto Gain Control | Yes |
