RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable

SKU: RVS-062710-27

Model #: RVS-062710-27

  • RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable
  • RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems
  • RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems
  • RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems
  • RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems RVS Systems RVS-062710-27 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 33' Cable, 2 x 16' Cable RVS-062710-27 by RVS Systems

SKU: RVS-062710-27

Model #: RVS-062710-27

Availability: Usually ships the next business day

$737.99

Availability: In stock

Low Price Guarantee

  • Express Checkout:
Free Ground Shipping Free Ground Shipping
Free Lifetime Tech Support Free Lifetime Tech Support
Availability: Usually ships the next business day

Availability: Usually ships the next business day

  • Express Checkout:

Product Details

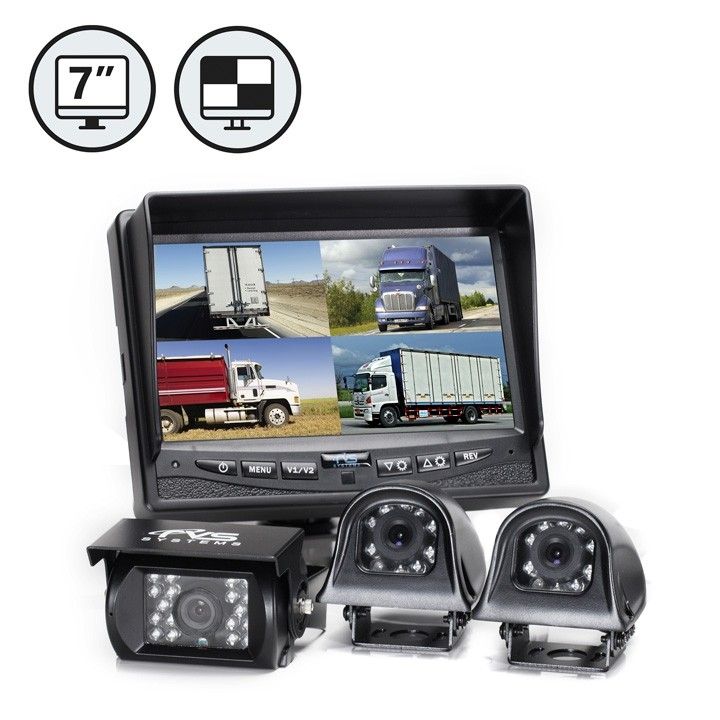

The RVS-062710-27 from RVS Systems is a crystal clear 7" Digital TFT LCD color monitor with single, double, triple and quad viewing modes. The heavy-duty backup camera (s) are equipped with 18 infra-red lights, 130 degrees viewing angle and an IP69K waterproof rating. The two side cameras are bullet shaped and designed to mount to the side of your vehicle. Each come with 9 infra-red lights, 120 degrees viewing angle and an IP68 waterproof rating. The system comes with all cabling, mounts and parts necessary for installation.

The RVS-6139Q is a 9" TFT LCD Digital Quad View Color Monitor capable of connecting, and viewing simultaneously, up to four cameras.

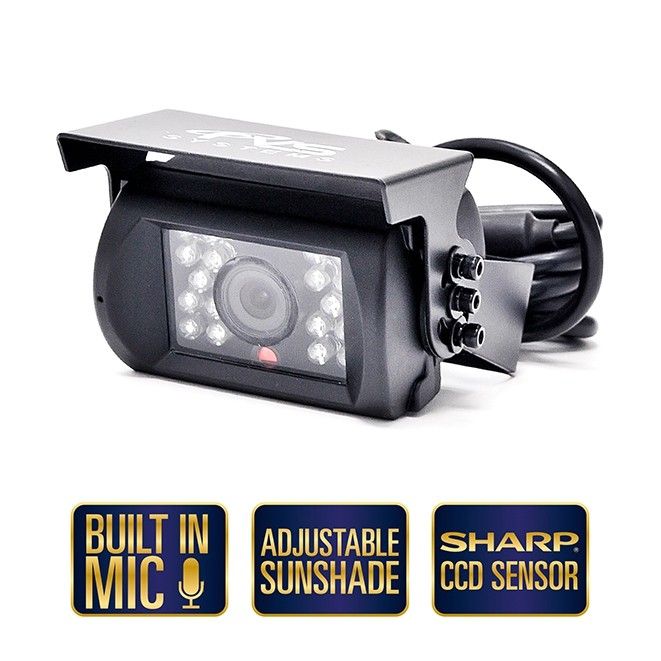

The RVS-770 is a commercial grade 2 backup camera is the clearest and greatest camera available on the market today. It boasts a 410,000 pixel 2.5 mm lens with 18 infra-red illuminators which enable you to see in total darkness and a built-in microphone which enables you to hear what is behind you. The backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G impact rating (highest in the industry).

The RVS-775L and RVS-775R are the 120° angle side cameras which are the clearest and greatest cameras available on the market today. It boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enables you to see in total darkness. The casing of the camera has an IP68 rating which can withstand all weather conditions.

The RVS-826N is a 33' 2 Camera Cable with a double-sided Female Air-Craft Grade Connection.

The RVS-881 is a 16 foot 2 camera cable with double-sided female aircraft grade connectors. This cable runs the length of the vehicle, from the camera to the multiplexer or power harness.

Features

  • Backup Camera System with Quad View Monitor
  • 7" LED Digital Color Display with Removable Sunshade
  • Single, Double, Triple and Quad Viewing Options
  • Waterproof Cameras with Infra-Red Night Vision
  • Provides Complete View of Blind Spots around Vehicle

Product Specs

SKU  RVS-062710-27
Manufacturer  RVS Systems
Features  Auto Gain Control, Weather Resistant
Camera Signal    Analog
Resolution   600 TVL
Sensor Option   1/4" CCD
Lens Type   Fixed
Lens Size   2.1mm
Infrared Distance   0~60 Feet
Durability   Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device   1/4" Sharp® Color CCD
IR Distance  Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity   RH 95% Max
Operating Temperature   -40°C ~ +80°C
Dimensions (W x H)  Backup Camera: 3.25" (H) x 3" (L) x 1.5" (D), Side Camera: 1.85 (H) x 2.5" (L) x 3" (D)
S/N Ratio  More than 48dB
Video Output   1Vp-p 75 Ω
Weatherproof   IP68
Synchronization  Internal Synchronization
Angle of View   Backup Camera: 130°, Side Camera: 120°
Auto Gain Control   Yes
