RVS Systems RVS-062710-26 9" 600 TVL Quad View Display, Both Side Backup Camera, 2 x 66' Cable, 2 x 33' Cable
SKU
RVS-062710-26
Model No
RVS-062710-26
$865.80
Product Highlights

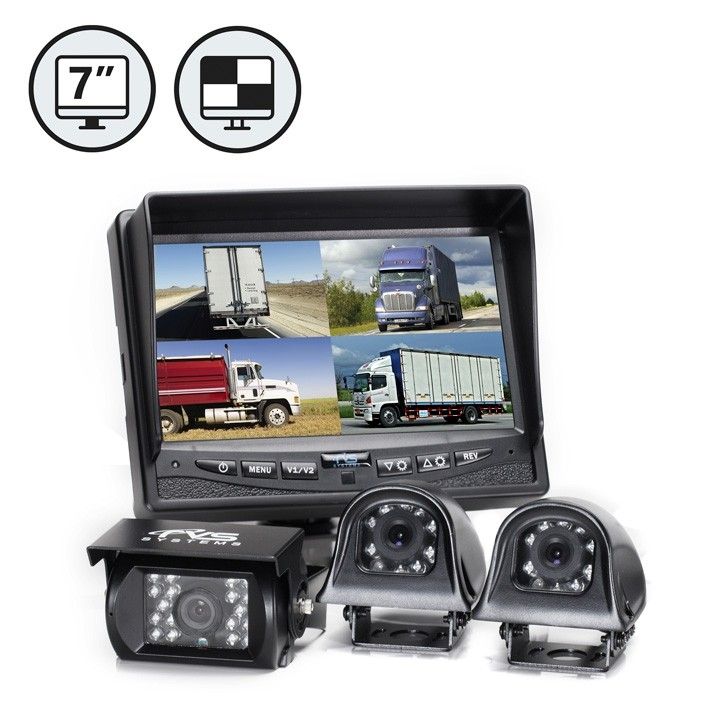

- Backup Camera System with Quad View Monitor
- 7" LED Digital Color Display with Removable Sunshade
- Single, Double, Triple and Quad Viewing Options
- Waterproof Cameras with Infra-Red Night Vision
- Provides Complete View of Blind Spots around Vehicle
Speak to an expert
The RVS-062710-26 from RVS Systems is a state-of-the-art backup camera system designed to enhance your vehicle's safety with its crystal clear 9" Digital TFT LCD monitor. This advanced system features both side and rearview cameras equipped with infrared night vision, ensuring you have a complete view of your surroundings, even in low-light conditions. The waterproof design and versatile viewing options make it an essential device for any driver looking for reliability and improved visibility while reversing.
RVS Systems RVS-062710-26 Key Features
- Backup Camera System: Integrated quad view monitor allows simultaneous connection and viewing of up to four cameras, providing comprehensive visibility around your vehicle.
- 9" LED Digital Color Display: High-resolution display with removable sunshade for better visibility in bright sunlight.
- Customizable Viewing Options: Choose between single, double, triple, and quad viewing modes to suit your driving needs.
- Waterproof Cameras: Heavy-duty backup cameras with IP69K and IP68 ratings ensure reliable performance in all weather conditions.
- Infra-Red Night Vision: Equipped with advanced infrared illuminators for superior nighttime visibility and safety.
RVS Systems RVS-062710-26 Detailed Specifications
| Monitor Size | 9" TFT LCD Digital |
| Camera Type | Heavy-Duty Backup and Side Cameras |
| Backup Camera Resolution | 410,000 pixels |
| Side Cameras Resolution | 250,000 pixels |
| Viewing Angle (Backup Camera) | 130 degrees |
| Viewing Angle (Side Cameras) | 120 degrees |
| Infra-Red Lights (Backup Camera) | 18 |
| Infra-Red Lights (Side Cameras) | 9 |
| Waterproof Rating (Backup Camera) | IP69K |
| Waterproof Rating (Side Cameras) | IP68 |
| Cable Length (Backup) | 2 x 66' |
| Cable Length (Side) | 2 x 33' |
| Impact Rating | 100G |
SKU  | RVS-062710-26 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |

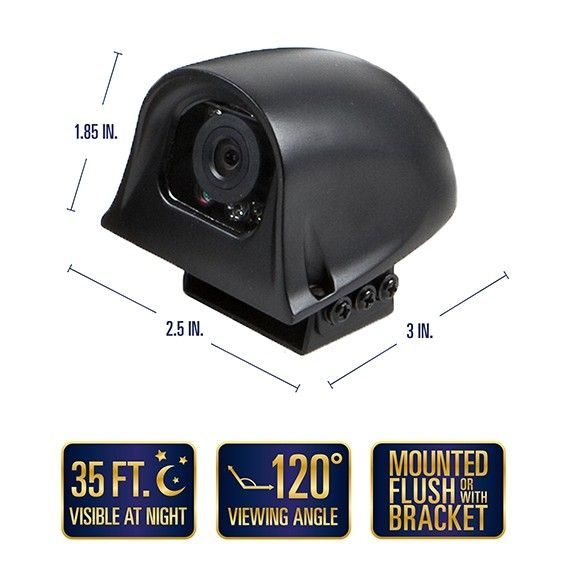

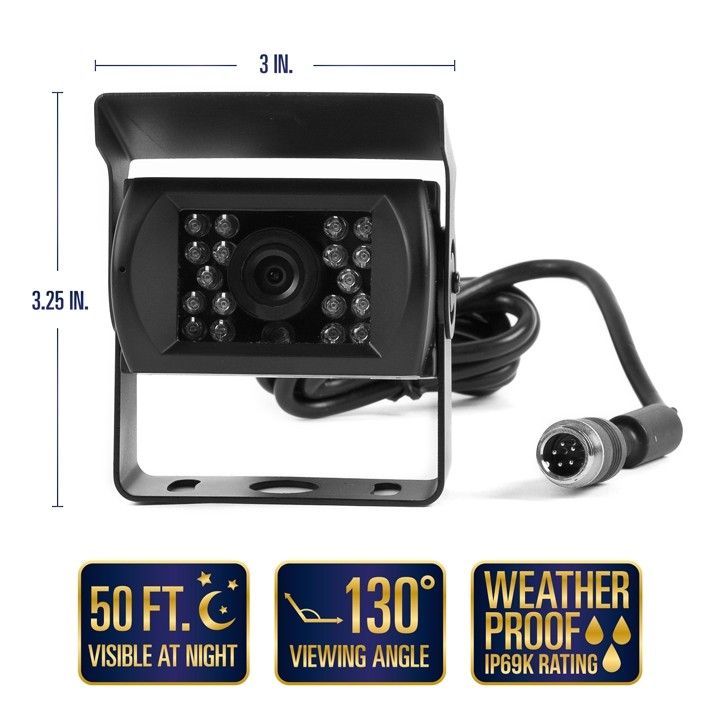

| Dimensions (W x H) | Backup Camera: 3.25" (H) x 3" (L) x 1.5" (D), Side Camera: 1.85 (H) x 2.5" (L) x 3" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | Backup Camera: 130°, Side Camera: 120° |
| Auto Gain Control | Yes |
