RVS Systems RVS-062710-20 9" 600 TVL Quad View Display, Both Side Backup Camera, 1 x 33' Cable, 2 x 16' Cable
SKU
RVS-062710-20
Model No
RVS-062710-20
$756.61
Product Highlights
- Backup Camera System with Quad View Monitor
- 7" LED Digital Color Display with Removable Sunshade
- Single, Double, Triple and Quad Viewing Options
- Waterproof Cameras with Infra-Red Night Vision
- Provides Complete View of Blind Spots around Vehicle
Speak to an expert
The RVS-062710-20 from RVS Systems is a crystal clear 9" Digital TFT LCD color monitor with multiple viewing modes designed for enhanced safety and convenience. With heavy-duty backup cameras and weatherproof capabilities, this system provides a reliable solution for monitoring your surroundings. Equipped with advanced features such as infra-red night vision, a wide viewing angle, and complete installation accessories, this camera system is perfect for those requiring a close eye on all areas of their vehicle.
RVS Systems RVS-062710-20 Camera Features
- Backup Camera System: Quad view monitor allows simultaneous viewing of up to four cameras for enhanced visibility.
- 9" TFT LCD Display: High-resolution screen with removable sunshade ensures clear visibility in all lighting conditions.
- Multiple Viewing Options: Choose between single, double, triple, and quad viewing modes tailored to your needs.
- Weatherproof Cameras: IP68 and IP69K ratings provide durability and reliability in harsh weather conditions.

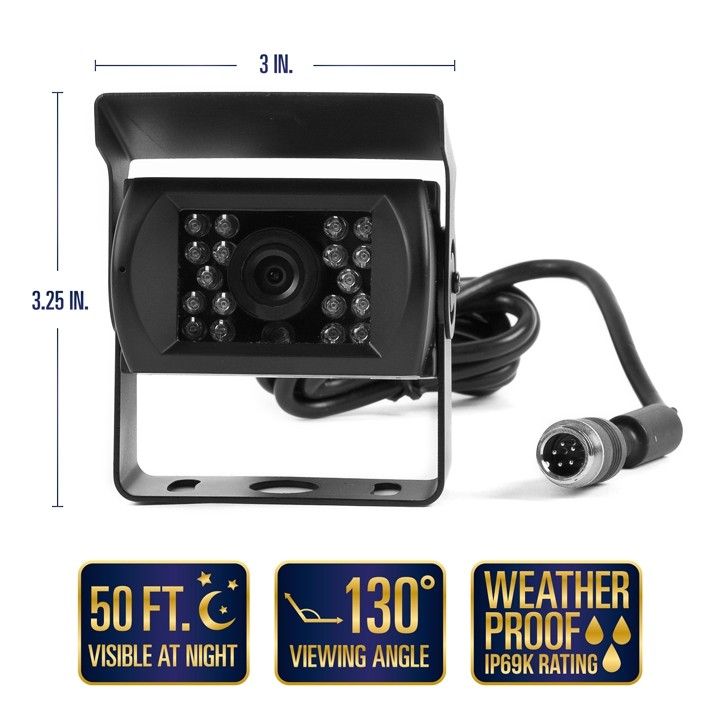

- Infra-Red Night Vision: 18 infra-red lights in the backup camera and 9 in side cameras allow for clear visibility in darkness.

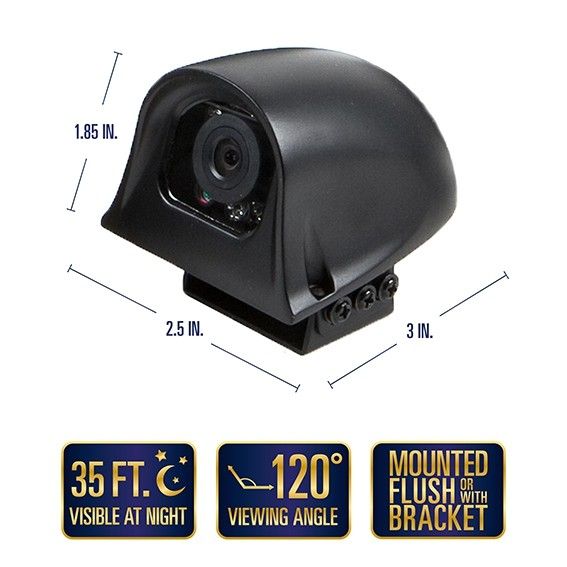

- Blind Spot Coverage: Side cameras provide essential views of areas that are typically hard to monitor.
RVS Systems RVS-062710-20 Detailed Camera Specifications
| Monitor Size | 9 inches |
| Resolution | 600 TVL |
| Backup Camera Rating | IP69K |
| Side Camera Rating | IP68 |
| Backup Camera Lens | 2.5 mm, 410,000 pixels |
| Side Camera Lens | 2.1 mm, 250,000 pixels |
| Infra-Red Lights (Backup Camera) | 18 |
| Infra-Red Lights (Side Cameras) | 9 each |
| Cabling Included | 1 x 33' cable, 2 x 16' cables |
SKU  | RVS-062710-20 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |
| Dimensions (W x H) | Backup Camera: 3.25" (H) x 3" (L) x 1.5" (D), Side Camera: 1.85 (H) x 2.5" (L) x 3" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | Backup Camera: 130°, Side Camera: 120° |
| Auto Gain Control | Yes |
