RVS Systems RVS-062710-01 7" 600 TVL Quad View Display, Both Side Backup Camera, 66' Cable
SKU
RVS-062710-01
Model No
RVS-062710-01
$850.29
Product Highlights
- Backup Camera System with Quad View Monitor
- 7" LED Digital Color Display with Removable Sunshade
- Single, Double, Triple and Quad Viewing Options
- Waterproof Cameras with Infra-Red Night Vision
- Provides Complete View of Blind Spots around Vehicle
Speak to an expert

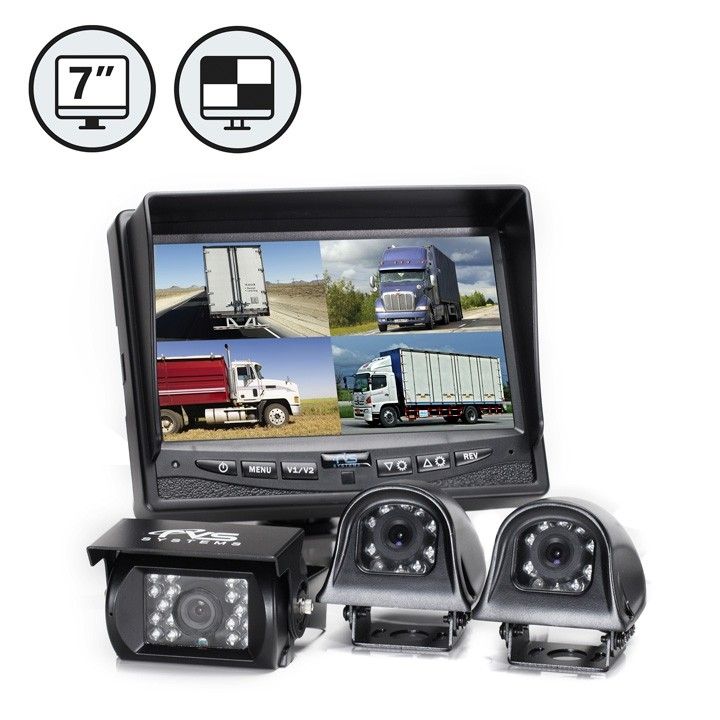

The RVS-062710-01 from RVS Systems is a crystal clear 7" Digital TFT LCD color monitor featuring single, double, triple, and quad viewing modes. Equipped with heavy-duty backup cameras, it boasts 18 infra-red lights, a 130-degree viewing angle, and an IP69K waterproof rating. The included side cameras are bullet-shaped, have a 120-degree viewing angle, and an IP68 waterproof rating. This comprehensive system includes all necessary cables, mounts, and parts for easy installation, making it an essential tool for ensuring safety while driving.
Key Features of RVS Systems RVS-062710-01
- Backup Camera System: Provides maximum visibility with up to four cameras viewable at once, ensuring blind spot coverage.
- 7" LED Digital Color Display: High-quality TFT LCD with a removable sunshade for clear visibility even in bright conditions.
- Multi-Viewing Options: Choose between single, double, triple, or quad viewing configurations for customized viewing preferences.
- Waterproof Cameras: Each camera is built to withstand various weather conditions, featuring IP68 and IP69K ratings paired with infra-red night vision for low-light capabilities.

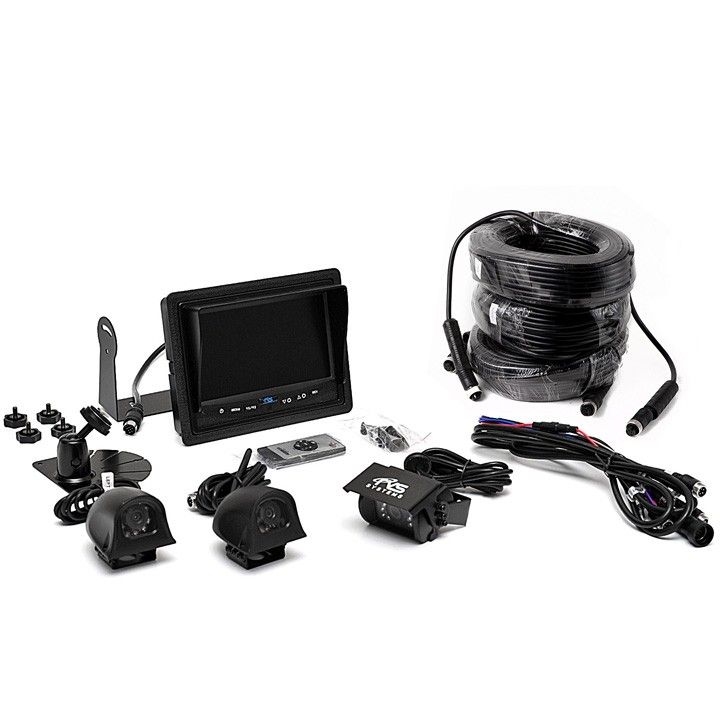

- Comprehensive Installation Kit: Comes with all required cabling and mounting hardware, ensuring a complete and straightforward installation process.
RVS Systems RVS-062710-01 Camera Features
| Feature | Detail |
| Monitor Size | 7 inches |
| Display Type | TFT LCD, Digital Color |
| Viewing Modes | Single, Double, Triple, Quad |
| Backup Camera Rating | IP69K, with 18 infra-red lights and 130° viewing angle |
| Side Camera Rating | IP68, with 9 infra-red lights and 120° viewing angle |
| Image Resolution | Backup camera at 410,000 pixels; Side cameras at 250,000 pixels |
| Cable Length | 66' Camera Cable (RVS-825N) and 33' 2 Camera Cable (RVS-826N) |
| Additional Features | Built-in microphone on backup camera for audio |
SKU  | RVS-062710-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |

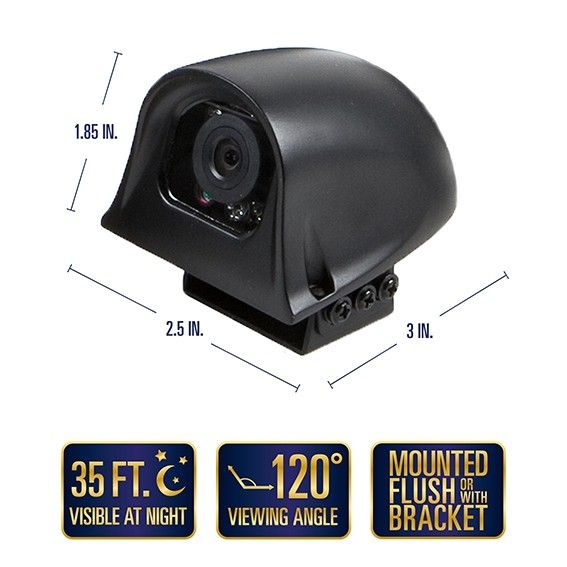

| Dimensions (W x H) | Backup Camera: 3.25" (H) x 3" (L) x 1.5" (D), Side Camera: 1.85 (H) x 2.5" (L) x 3" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | Backup Camera: 130°, Side Camera: 120° |
| Auto Gain Control | Yes |
