RVS Systems RVS-01-360-CAM Camera for Inview 360 system

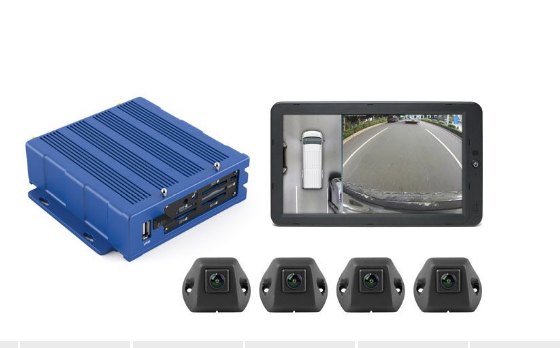

The inView 360° HD is an Around Vehicle Monitoring System that greatly reduces blind spots by giving drivers a real-time 360° view around the apparatus. The RVS-01-360 is equipped with 4 Full HD ultra-wide fish-eye cameras, which give you four unique views that seamlessly merge together to create a complete image of your vehicle and its surroundings. Use the 360° view to assist with parking, check blind spots, or navigate narrow roads. The RVS-01-360 easily integrates with our 7” or 10” HD monitor. The system features a BuiltIn DVR that records all cameras individually, making it great for insurance purposes. The latest version of the inView 360° comes with auto-calibration, the entire calibration process can be done in as little as ten minutes.

RVS Systems RVS-01-360-CAM Full Around Vehicle Monitoring (AVM)

• Full Around Vehicle Monitoring (AVM): The standard system consists of four cameras to provide a 2D, four camera stitched-around vehicle view (top view). The system is capable of connecting another 1-2 cameras to monitor other areas. All connected cameras are recorded, enhancing safety.
• Out-Of-The-Box Recording: The system records directly onto 4 solid state storage SD cards, 256 GB each, for a total storage capacity of 1TB, ensuring extended recording capabilities for all driving scenarios.
• Automatic Triggers: Set triggers to have the camera view change automatically (left/right/reverse/default), improving maneuverability without driver distraction.
• Customizable On Screen Overlay: Customize the width, length, and position of the overlay for specific applications, allowing for tailored setups to meet individual needs.
• Auto Calibration: Calibration is performed simply and easily, directly through the system monitor, making setup quick and efficient.
• Advanced Features: The RVS-01-360 has a built-in G-Sensor, and is equipped with GPS and WiFi, providing comprehensive surveillance and data tracking.
• Instant Reverse: The system activates the rear camera image with 2 seconds of ignition, enabling FMVSS-111 compliance for enhanced safety when reversing.
