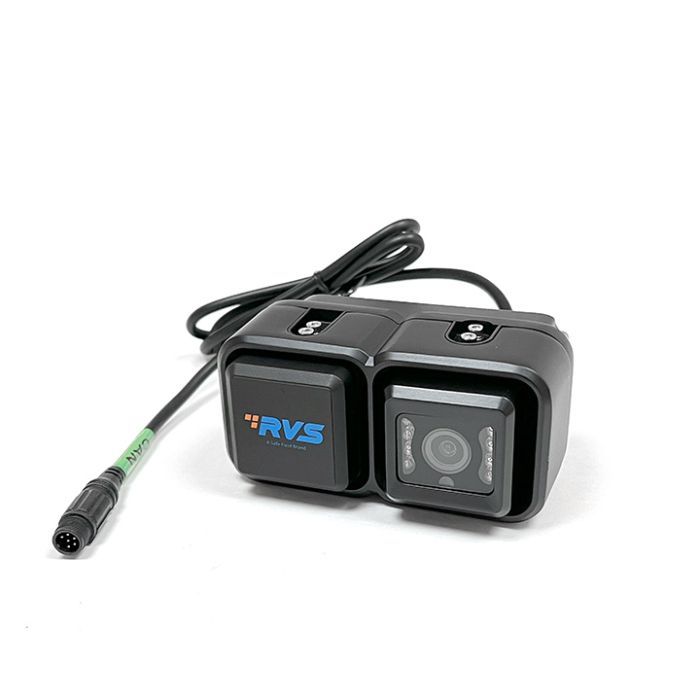

RVS Systems RD-24E1GA 1080p All-In-One Radar + Car Dash Camera System with 2.9mm Lens
SKU
RD-24E1GA
Model No
RD-24E1GA
$935.00
Product Highlights
- The All-In-One radar camera uses 24GHz FMCW technology to detect stationary objects and people in blind spots
- Detects objects and people behind vehicles up to 4.3m
- IP69K waterproof/dustproof rating
- Able to avoid false detections in busy work sites
Speak to an expert
The RVS Systems RD-24E1GA 1080p All-In-One Radar + Car Dash Camera System features advanced 24GHz FMCW technology designed to enhance driver safety by detecting stationary objects and people in blind spots. This innovative system combines high-definition video with radar alerts, offering powerful performance without the complexity of separate installations. With its commercial-grade quality and robust waterproof rating, the RD-24E1GA is an essential tool for any vehicle.
RVS Systems RD-24E1GA Camera Features
- 24GHz FMCW Technology: Detects stationary objects and people in blind spots, significantly enhancing driver awareness and preventing accidents.
- 4.3m Detection Range: Capable of notifying drivers about obstacles or vehicles located behind them, improving safety during maneuvers.
- Commercial Grade Quality: Designed for durability and reliability, ensuring long-lasting performance in various environments.
- IP69K Waterproof/Dustproof Rating: Provides protection against harsh weather and dust, making it suitable for outdoor and industrial applications.
- Reduced False Detections: Optimized for busy work sites to minimize unnecessary alerts, allowing drivers to focus on critical safety information.
RVS Systems RD-24E1GA Detailed Specifications
| Feature | Details |
|---|---|
| Model | RD-24E1GA |
| Camera Resolution | 1080p Full HD |
| Lens Type | 2.9mm Lens |
| Radar Frequency | 24GHz FMCW |
| Detection Range | Up to 4.3m |
| Waterproof Rating | IP69K |
| Installation | Single cable connection from radar to monitor |
| Warnings | Audible notifications for detected objects |
SKU  | RD-24E1GA |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 2 Megapixel |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Durability | Weather Resistant |
| Image Pixels Total | 2000(H) X 1121(V) |
| Image Pixels-Effective | 1984(H) X 1105(V) , 2.19MP |
| Minimum Scene Illumination | 0Lux (With IR LED) , 6Lux : LED ON , 25Lux : LED OFF |
| Operating Temperature | -30°C ~ 85°C |
| Dimensions (W x H) | 4.3" (H) x 4.2" (L) x 1.3" (D) |
| Signal System | AHD , Internal , Option (CVBS, 960H) |
| Angle of View | 140° |
| Audio | Yes |
| Day/Night | Yes |
| Auto Gain Control | Yes |
