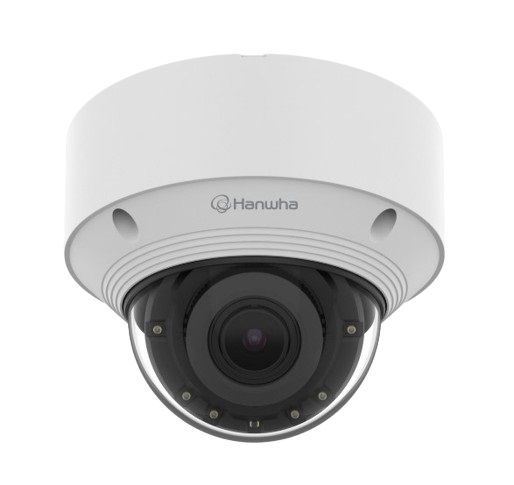

Hanwha Vision QNV-C8083R 5 Megapixel Network Outdoor Dome Camera with 3.2-10.2mm Lens
SKU
QNV-C8083R
Model No
QNV-C8083R
$459.95
Product Highlights
- 5MP resolution
- 3.2 ~ 10.2mm (H: 95°~29° / V: 69°~21°) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine)
- Day & Night (ICR), WDR (120dB)
Now the Wisenet Q series meets AI with advanced Object Detection and WiseMD for accurate Motion Detection of AI Objects, eliminating false positives from foliage, lighting changes, etc.
Features
- 5MP resolution
- 3.2 ~ 10.2mm (H: 95°~29° / V: 69°~21°) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine)
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Appear/Disappear, Tampering, WiseMD based on AI engine, AI Object Detection - Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- People Counting, Heatmap, Queue Management, & Vehicle Counting
- micro SD (256GB) memory slot
- PoE / 12V DC
- IR viewable length 30m (98ft)
- IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
- USB for easy installation, open platform
- Audio I/O & Alarm I/O is supported through an optional cable (SPP-C7400)
- Conduit access with optional SBO-147BA adapter accessory
- Operating temperature -30°C~+55°C(-22°F ~ +131°F), white color
SKU  | QNV-C8083R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.2-10.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | ø140x110.2mm(ø5.51x4.34"), |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.07Lux (F1.6, 1/30sec) BW: 0.007Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Operating Humidity | 0~95% RH(non-condensing |
| Operating Temperature | -30°C~+55°C(-22°F ~ +131°F) |
| Power Consumption | PoE: Max 12.95W, typical 5.3W |
| Privacy Zone | 32ea, 4point quadrangle zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNRâ…¤, WiseNRâ…¡(Based on AI engine) |
| Angle of View | H: 95°(Wide)~29°(Tele), V: 69°(Wide)~21°(Tele), D: 126°(Wide)~36°(Tele) |
| Rotation Angle | Flip, Mirror, Hallway view(90°/270°) |
| Motion Detection Tracking | 8ea, 8point Polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
