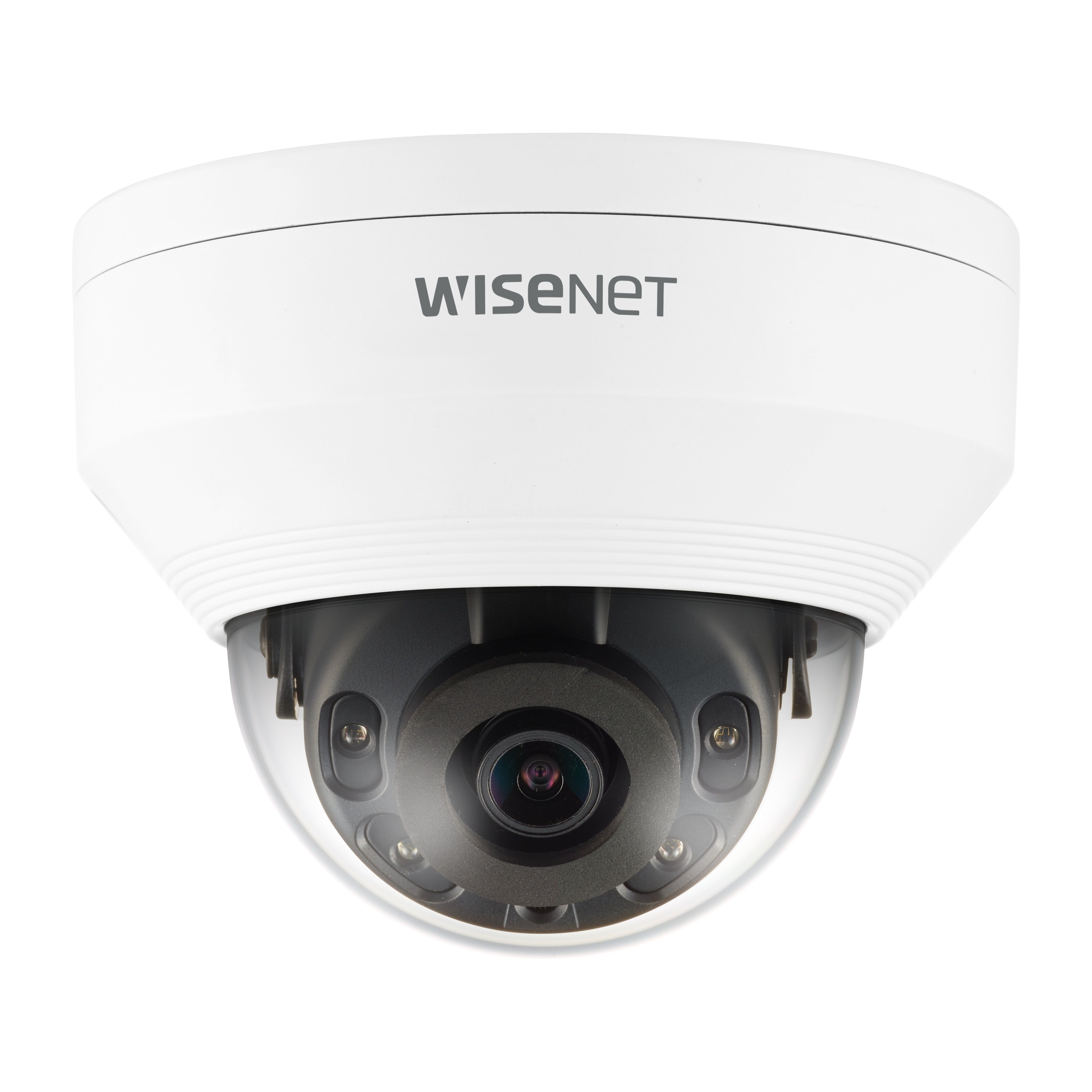

Samsung QNV-6012R 2 Megapixel Network IR Outdoor Dome Camera, 2.8mm Lens
SKU
QNV-6012R
Model No
QNV-6012R
$240.18
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- 0.1Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
Speak to an expert
2 Megapixel Network IR Outdoor Dome Camera, 2.8mm Lens
- The Hanwha Vision QNV-6012R 2 Megapixel Network IR Outdoor Dome Camera is designed for high-performance surveillance in various environments. With advanced features like WiseStream II compression technology, 120dB True WDR, and intelligent video analytics, this camera ensures clear and reliable monitoring. Its durable design, combined with powerful IR capabilities and flexible installation options, makes it an excellent choice for security needs.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Max. 2megapixel (1920 x 1080) resolution | Motion detection, Tampering, Defocus detection |
| 0.1Lux (Color), 0Lux (B/W, IR LED on) | Hallway view (90°/270°), LDC support |
| Max. 30fps@2M all resolutions (H.265/H.264) | Micro SD/SDHC/SDXC memory slot (Max. 128GB) |
| H.265, H.264, MJPEG codec supported, Multiple streaming | IP66, IK10, PoE, 12VDC |
Additional Hanwha Vision Products
SKU  | QNV-6012R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø120.3 x 91.7mm (Ø4.74 x 3.61") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/2.8" 2MP CMOS |
| Minimum Scene Illumination | Color : 0.1Lux (F2.0, 1/30sec), BW : 0Lux (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | PoE : Max 7.4W, typical 6W, 12VDC : Max 6.4W, typical 5.1W |
| Privacy Zone | 6ea, rectangular zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNR |
| Angle of View | H: 113.74, V: 61.5°, D: 134.45° |
| Motion Detection Tracking | 4ea, polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 20m/65.62ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
