Hanwha Vision QNO-6022R 2 Megapixel Network IR Outdoor Bullet Camera, 4mm Lens

Name: Hanwha Vision QNO-6022R 2 Megapixel Network IR Outdoor Bullet Camera, 4mm Lens
Brand: Hanwha Vision
SKU: QNO-6022R
Price: 240.18 USD
Availability: InStock

SKU

QNO-6022R

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision QNO-6022R 2 Megapixel Network IR Outdoor Bullet Camera, 4mm Lens QNO-6022R by Hanwha Vision

Model No

QNO-6022R

$240.18

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

2 Megapixel (1920 x 1080) resolution
0.1Lux (Color), 0Lux (B/W, IR LED on)
30fps@2 MP (H.265/H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

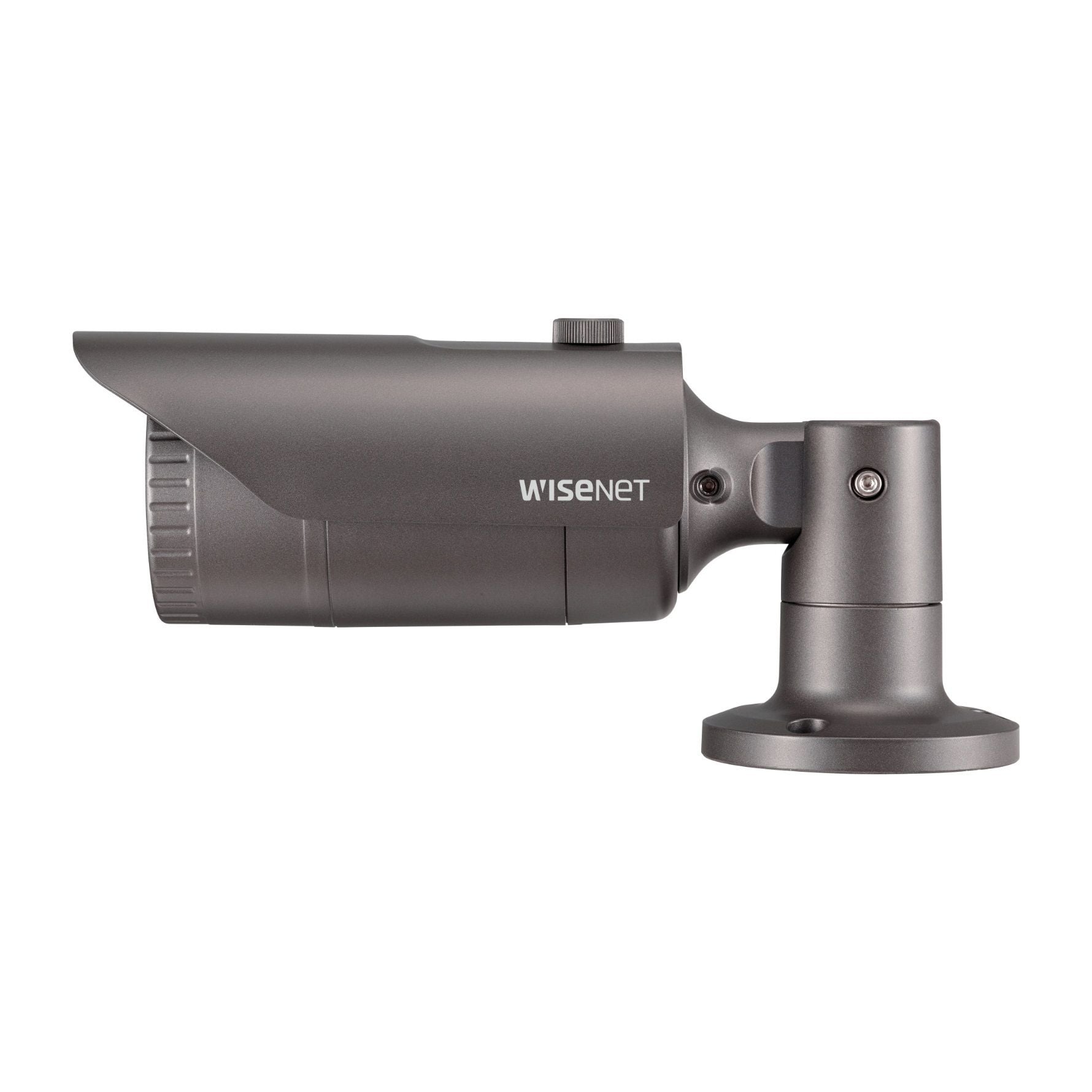

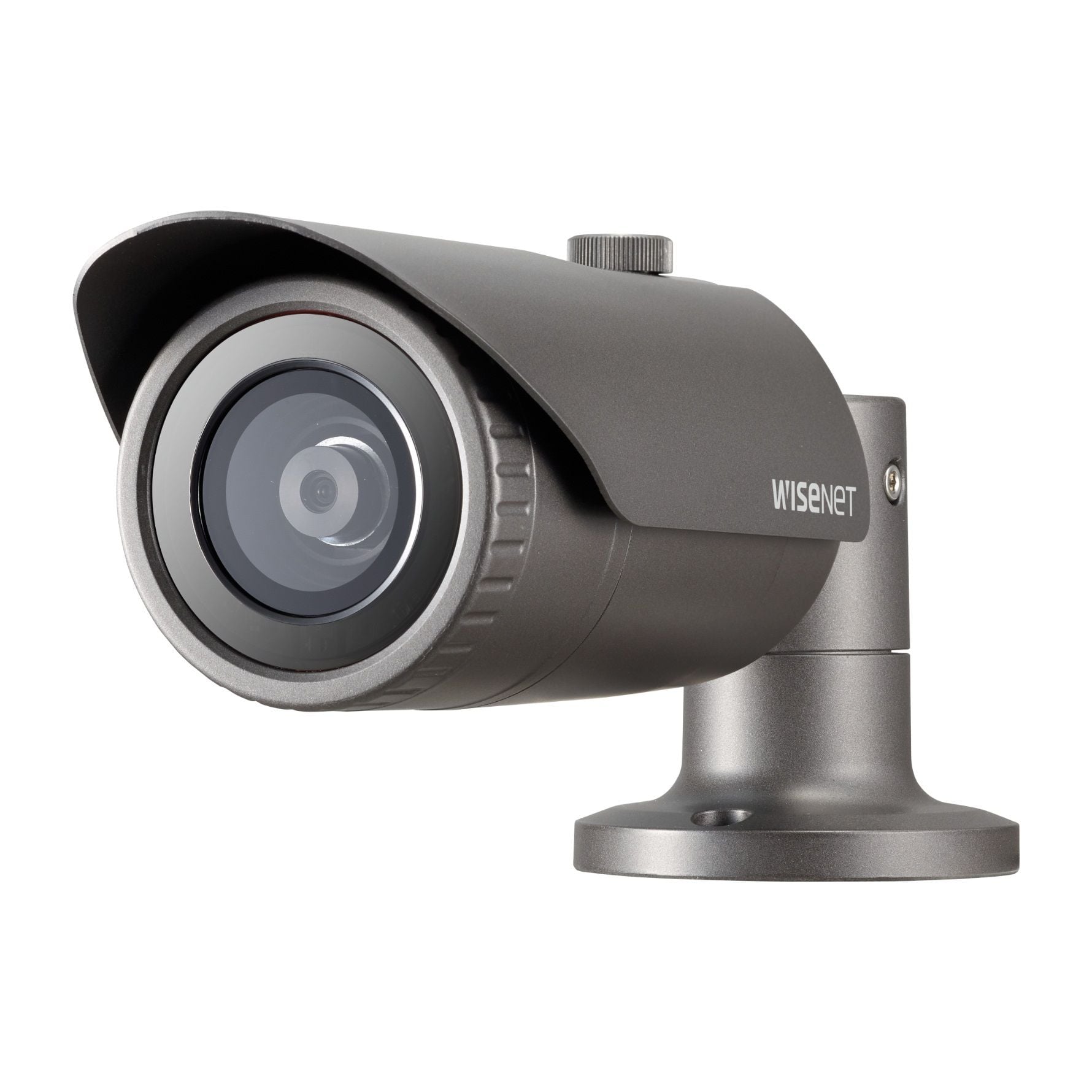

2 Megapixel Network IR Outdoor Bullet Camera, 4mm Lens

The QNO-6022R from Hanwha's Q Series affordable network camera line is a 2 Megapixel bullet network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 4mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Flickerless

Mirror

Motion Detection

On Screen Display Menu

ONVIF

Privacy Masking

Vandal Resistant

Weather Resistant

WDR

Camera Features


2 Megapixel (1920 x 1080) resolution	Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering
0.1Lux (Color), 0Lux (B/W, IR LED on)	Hallway view (90°/270°), LDC support
30fps@2 MP (H.265/H.264)	Micro SD/SDHC/SDXC memory slot (Maximum 128GB)
H.265, H.264, MJPEG codec supported, Multiple streaming	IP66, IK10, PoE, 12VDC

Specifications

SKU	QNO-6022R
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
NDAA	Compliant
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	2 Megapixel
Lens Type	Fixed
Lens Size	4mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG, H.265
Durability	Vandal Resistant, Weather Resistant
Voltage	12vDC, PoE
Dimensions (W x H)	Ø70.0 x 246.0mm (Ø2.76 x 9.69")
Electronic Shutter	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Image Device	1/2.8" 2 MP CMOS
Minimum Scene Illumination	Color : 0.1Lux (F1.6, 1/30sec), BW : 0Lux (IR LED on)
Operating Humidity	Less than 90% RH
Operating Temperature	-30°C ~ +55°C (-22°F ~ +131°F)
OSD Menu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Power Consumption	PoE : Maximum 7W, typical 5.2W, 12VDC : Maximum 6.1W, typical 4.5W
Privacy Zone	6ea, rectangular zones
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Weatherproof	IP66
Digital Noise Reduction	SSNR
Angle of View	H: 87.6, V: 46.4°, D: 104.5°
Motion Detection Tracking	4ea, polygonal zones
Back Light Compensation	BLC, WDR, SSDR
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor
IR Distance	25m/82ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
