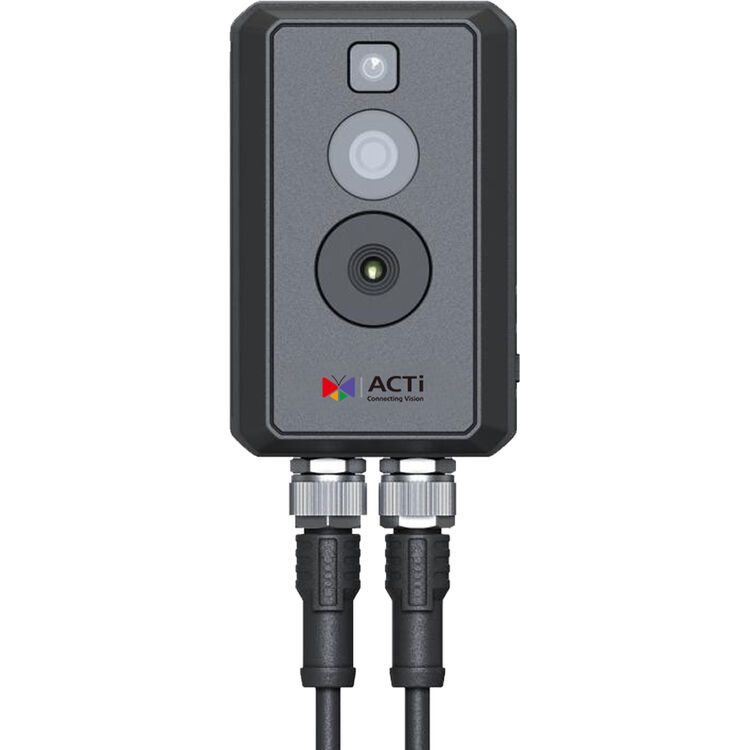

ACTi Q170 4 Megapixel Network IP Thermal Cube Camera with 2.1mm Lens
SKU
Q170
Model No
Q170
$4,490.10
Product Highlights
- 4 Megapixel, f2.1mm, Thermal Cube
- Aperture F2.2
- DORI (28 / 11.3 / 5.6 / 2.8m)
- Weatherproof (IP68), Vandal proof (IK10)
- Overheating Detection, Thermal Surveillance
Speak to an expert
The ACTi Q170 is a compact thermal cube camera that combines 4MP visible-light imaging with integrated thermal sensing in a discreet, indoor-friendly cube form factor. It is ideal for installations where space is limited and non-intrusive camera design is desired, while still requiring reliable heat-signature detection.
Features
- 4 Megapixel, f2.1mm, Thermal Cube
- Aperture F2.2
- DORI (28 / 11.3 / 5.6 / 2.8m)
- Weatherproof (IP68), Vandal proof (IK10)
- Overheating Detection, Thermal Surveillance
- NETD <40mK
SKU  | Q170 |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Digital Zoom, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (W x H x D): 56mm x 38.9mm x 111.2mm (2.20" x 1.53" x 4.38") |
| Image Device | Progressive Scan CMOS + Thermal sensor |
| Minimum Scene Illumination | Color: 0.06 lux at F2.2 (AGC on); B/W: 0 lux (Light on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Power Consumption | 5 W (DC) |
| S/N Ratio | 75 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle (Thermal camera) 90° (Visual camera) 96.9° Vertical Viewing Angle (Thermal camera) 64.2° (Visual camera) 77.2° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
