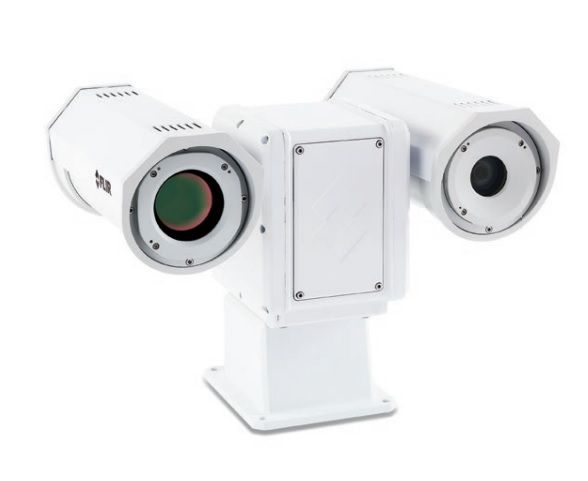

Flir PT-612-HD-PS 640 x 480 Outdoor Network Thermal Camera, 50mm, 8.3HZ, PAL
SKU
PT-612-HD-PS
Model No
427-0075-04-00S
$27,663.41
Product Highlights
- High-performance thermal lens with 4X optical zoom and auto-focus
- 1080p HD camera with 30X optical zoom and outstanding low light performance
- Deicing and de-fogging capabilities
- Sun-safe VOx uncooled thermal sensor technology
- Rated IP66 for dust and water ingress
Speak to an expert
The PT-612-HD-PS from Flir is a 640 x 480 outdoor network thermal imaging camera, 50mm, 8.3HZ, PAL. The FLIR Triton PT-Series HD is our most advanced dual-sensor security system, combining a cooled or uncooled thermal sensor with 640 × 480 resolution, a 1080p HD visible-light imaging sensor, and a high speed, precision pan/tilt system. The Triton PT-Series HD integrates easily with FLIR United VMS 8.0, as well as other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Features
Flir PT-612-HD-PS Camera Features
- Superior Image Quality: PT-Series HD provides unmatched perimeter protection, regardless of lighting conditions.
- 640x480 resolution: thermal camera sees clearly in complete darkness or bright sunlight, through smoke, dust and light fog
- High-performance thermal lens: with 4X optical zoom and auto-focus
- 1080p HD camera: with 30X optical zoom and outstanding low light performance
Flir PT-612-HD-PS Rugged Housing
- Weather-resistant design: withstands harsh environments, reducing maintenance time.
- Deicing and de-fogging capabilities: ensure optimal performance in adverse weather
- Sun-safe VOx technology: uncooled thermal sensor technology
- IP66 rated: for dust and water ingress protection
- Vandal-resistant: housing adds durability
Flir PT-612-HD-PS System Integration
- Enhanced control: when using FLIR United VMS for advanced features
- Plug-and-play integration: with 3rd party VMSs and devices using open IP standards
- Simultaneous outputs: for IP and analog thermal and visible-light video
- ONVIF compliant: ensuring compatibility
Flir PT-612-HD-PS Detailed Specifications
| Model | PT-612-HD-PS |
| Resolution | 640 x 480 |
| Lens | 50mm |
| Frame Rate | 8.3Hz |
| Type | Outdoor Network Thermal Camera |
| Video Outputs | Simultaneous IP and analog |
| Integration | FLIR United VMS |
| IP Rating | IP66 |
| Zoom | 30X optical for HD, 4X for thermal |
| Weight | Specify weight |
SKU  | PT-612-HD-PS |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Heater & Fan, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 480 |
| Lens Type | Fixed |
| Lens Size | 50mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC |
| Automatic Gain Control (AGC) | On |
| Dimensions (W x H) | 13.7, 18.4, 12.8” (348, 467,326 mm) |
| Image Device | 1/2.8-type Exmor R CMOS |
| Image Pixels-Effective | 307,200 pixels |
| Operating Humidity | 0-95% relative |
| Operating Temperature | -40°C to 70°C |
| Power Consumption | 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters), 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters) |
| Protocols | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
| Weatherproof | IP66 |
| Angle of View | 12°×10° |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
