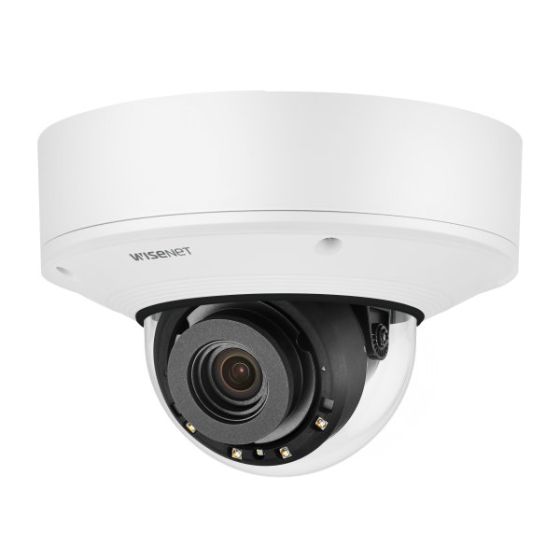

Hanwha Vision PNV-A9081RLP 4K Outdoor IR Vandal Dome AI camera with Wisenet Road AI with 4.5-10mm Lens
SKU
PNV-A9081RLP
Model No
PNV-A9081RLP
$1,786.69
Product Highlights
- 4K resolution
- [email protected] (Color), 0Lux (B/W, IR LED on)
- Day & Night(ICR), WDR(120dB)
- IR Viewable Length 30m (98.42ft)
- H.265, H.264, MJPEG codec, WiseStreamIII
Speak to an expert
4K Outdoor IR Vandal Dome AI camera with Wisenet Road AI with 4.5-10mm Lens
- The PNV-A9081RLP from Hanwha Vision is a state-of-the-art 4K outdoor IR vandal dome AI camera that combines advanced surveillance technology with robust features. Equipped with Wisenet Road AI and a versatile 4.5-10mm lens, this camera ensures high-quality imaging and intelligent analytics, making it an ideal choice for comprehensive security applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 4K resolution | Wisenet Road AI application (Pre-installed) |
| [email protected] (Color), 0Lux (B/W, IR LED on) | License Plate Recognition (LPR) |
| Day & Night (ICR), WDR (120dB) | Make/Model/Color Recognition |
| IR Viewable Length 30m (98.42ft) | Allow / Deny list notification |
| H.265, H.264, MJPEG codec, WiseStreamIII | Smart Search (LP, Country, brand, model, color) |
Additional Hanwha Vision Products
SKU  | PNV-A9081RLP |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.5-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | Ø180x125mm (7.09x4.92") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/1.8" CMOS |
| Minimum Scene Illumination | Color: 0.05Lux (F1.6, 1/30sec) BW: 0.005Lux (F1.6, 1/30sec), 0Lux (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -40°C ~ +55°C(-40°F ~ +131°F) |
| Power Consumption | PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W |
| Privacy Zone | 6ea, rectangle zones - Color: GrayBlack/White |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Weatherproof | IP66/IP67/IP6K9K |
| Zoom Ratio | 2.2x |
| Digital Noise Reduction | SSNRâ…¤ |
| Angle of View | H: 101.4°(Wide)~45.5°(Tele) / V: 53.6°(Wide)~25.5°(Tele) / D: 120.7°(Wide)~52.3°(Tele) |
| Motion Detection Tracking | 8ea, polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
