Hanwha Vision PNV-A6081R-E2T 2 Megapixel Network Outdoor Dome Camera with 4.38-9.33mm Lens
SKU
PNV-A6081R-E2T
Model No
PNV-A6081R-E2T
$2,112.50
Product Highlights
- NDAA, FCC & UL compliant
- Includes 1-channel WAVE Professional camera license
- A complete server-less VMS solution
- Capable of recording up to 5 additional cameras for a total recording solution, up to 6 total cameras (32Mbps total recording throughput)
- 2MP resolution up to 120fps
Speak to an expert

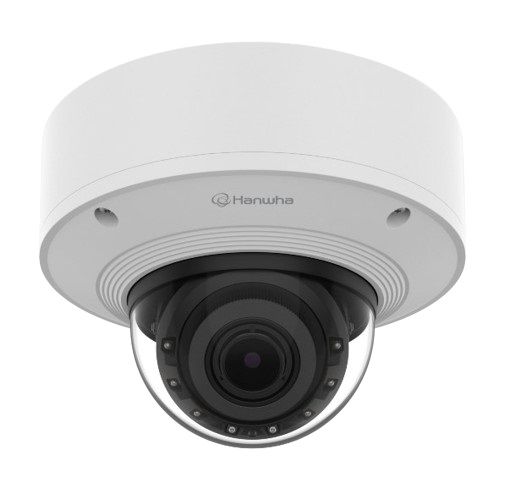

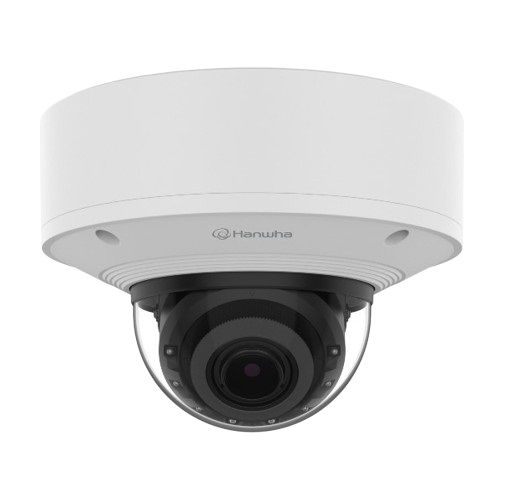

2 Megapixel Network Outdoor Dome Camera with 4.38-9.33mm Lens

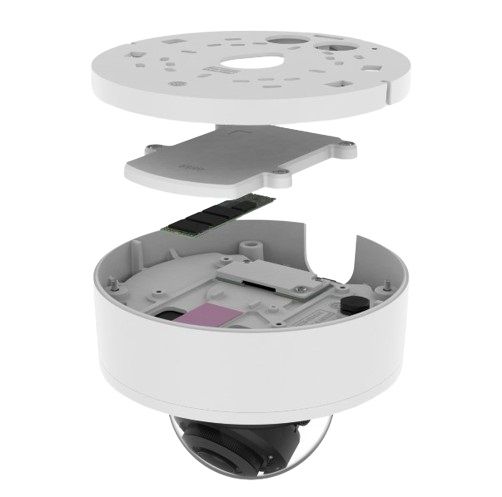

- The Hanwha Vision PNV-A6081R-E2T is a high-performance 2 Megapixel Network Outdoor Dome Camera designed for robust surveillance needs. Equipped with a 4.38-9.33mm motorized varifocal lens, this camera provides exceptional image clarity with up to 120fps and advanced features such as Wise IR technology for optimal night vision. Its built-in 2TB SSD and pre-installed WAVE server offer a complete recording solution, capable of managing up to 6 cameras, making it ideal for comprehensive security setups.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| NDAA, FCC & UL compliant | WiseStream II compression technology to save bandwidth & storage |
| Includes 1-channel WAVE Professional camera license | USB, analog video output ports for easy installation |
| A complete server-less VMS solution | Ture D/N |
| Capable of recording up to 5 additional cameras for a total recording solution, up to 6 total cameras (32Mbps total recording throughput) | Hard-coated dome bubble |
| 2MP resolution up to 120fps | PoE+ (IEEE802.3at type 2, Class4), 12VDC, Power redundancy failover |
| WiseIR 131.23ft | IP66/IP67/IP6K9K, NEMA4X, IK10 |
| WDR (120dB) | TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery |
| 4.38~9.33mm (2.13x) motorized varifocal lens with Simple focus for easy remote adjustments | 19.1mm (3/4") (M25) conduit hole, single, double, 4" octagon, 4" square gangbox compatibility |
| Triple codec H.265/H.264/MJPEG |
Additional Hanwha Vision Products
SKU  | PNV-A6081R-E2T |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.38-9.33mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | ø180x130mm(ø7.09x5.12") |
| Electronic Shutter | Minimum / Maximum / Prefer / Anti flicker(1/5~1/12,000sec) |
| Image Device | 1/2" CMOS |
| Operating Humidity | 0~95%RH(non-condensing) |
| Operating Temperature | -30°C~+55°C(-22°F~+131°F) |
| Power Consumption | PoE+: Max 19.2W, typical 14.4W 12VDC: Max 17.5W, typical 12.7W Power redundancy failover |
| Privacy Zone | 6ea, Rectangular zones - Color: Gray/Black/White |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNR, SSNRâ…¤ |
| Angle of View | H: 104°(Wide)~44°(Tele) V: 55°(Wide)~24°(Tele) D: 124°(Wide)~51°(Tele) |
| Rotation Angle | Flip, Mirror, Hallway view(90°/270°) |
| Motion Detection Tracking | 8ea, 8point Polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 40m/131.23ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
