Hanwha Vision PNM-C32084RQZ-8XE256G 3840 X2160 AI Network Outdoor Multi-Sensor Dome Camera with 4.38-9.33mm Lens
- Wise AI based WiseNRII, Auto prefer shutter control, WiseStreamIII
- Supports hallway mode
- Max. 20fps(@8MP Max. 5fps)
- 8MP@20fps (AI Off , H.265/H.264) / 4-channels x 8MP@15fps (AI ON, H.265/H.264)
- Reinforced durability (IP66, IK10, NEMA4X)
3840 X2160 AI Network Outdoor Multi-Sensor Dome Camera with 4.38-9.33mm Lens
- The Hanwha Vision PNM-C32084RQZ-8XE256G is a cutting-edge outdoor multi-sensor dome camera designed for high-performance surveillance. With its advanced AI capabilities and robust construction, this camera offers exceptional clarity, versatility, and durability, making it ideal for any security application..
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 360° Analytics events: Defocus detection, Motion detection, | Max. 20fps (@8MP Max. 5fps) |
| Tampering, Audio detection, Sound classification | Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2) |
| AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ | Reinforced durability (IP66, IK10, NEMA4X) |
| Supports hallway mode |

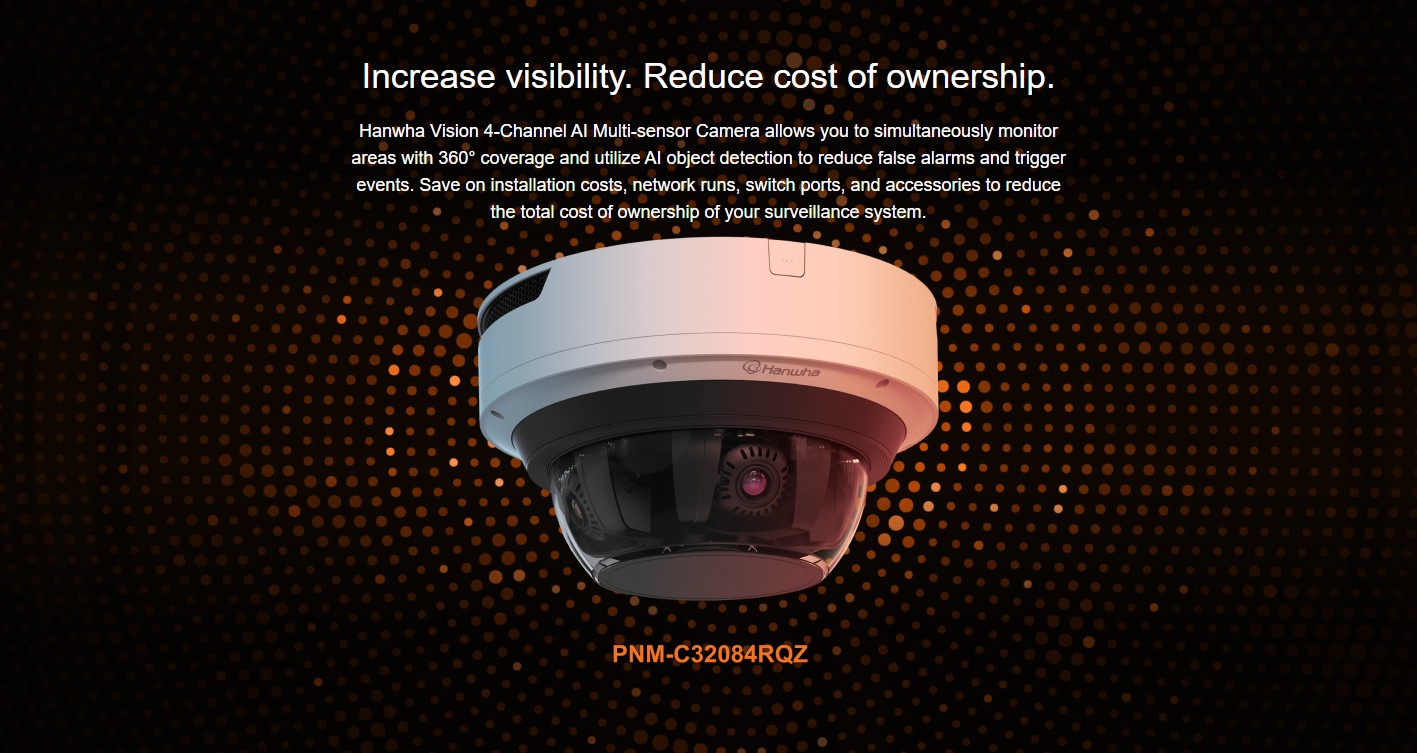

Increase visibility. Reduce cost of ownership.

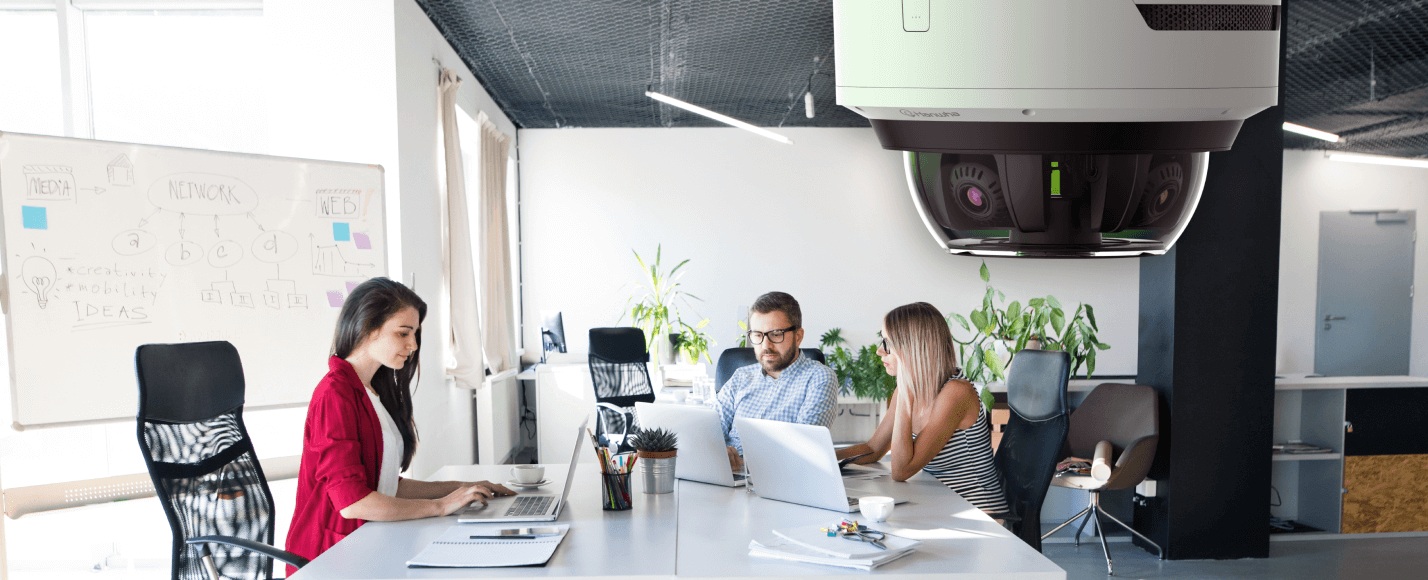

Powered by advanced analytics
Utilize Jetson performance and third-party AI apps from NVIDIA ecosystem to provide unmatched performance and accuracy for your security system. It also supports NVIDIA’s AI analytics platform, Deep Stream, and has integrated APIs, making adding applications from its ecosystem easy.
AI Object Detection
The detection of humans and vehicles is saved as metadata, optimizing forensic search.
Remote field of view adjustment
Each motorized lens can be remotely adjusted for pan, tilt, rotation, and zoom, allowing for easy field of view setup during and after installation.
Detect entry, exit or loitering
Set up virtual areas and lines to receive alerts when classified objects or people enter, exit, intrude or loiter in designated locations.
See bright in low light
The new 4-Channel AI IR PTRZ Multi-directional camera has four independent IR zones. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby obstructions.
Additional Hanwha Vision Products
SKU  | PNM-C32084RQZ-8XE256G |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3840 X 2160 |
| Lens Type | Varifocal |
| Lens Size | 4.38-9.33mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | ø315x180mm(ø12.40x7.09" |
| Electronic Shutter | 1/5 ~ 1/12,000sec |
| Image Device | 1/1.8" CMOS |
| Minimum Scene Illumination | Color: 0.07Lux (F1.3, 1/30sec, 30IRE), BW: 0Lux (IR LED on) |
| Operating Humidity | 0~100% RH(condensing) |
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) |
| Power Consumption | Max 66.0W |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNRV, WiseNRII (Based on AI engine) |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 25m/82ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
PNM-C32084RQZ-8XE256G-Specsheet PNM-C32084RQZ-8XE256G-Quick-Guide
