Hanwha Vision PNM-C32083RVQ 32 Megapixel Network Outdoor Dome Camera with 3.3-5.7mm Lens

Name: Hanwha Vision PNM-C32083RVQ 32 Megapixel Network Outdoor Dome Camera with 3.3-5.7mm Lens
Brand: Hanwha Vision
SKU: PNM-C32083RVQ
Price: 1847.99 USD
Availability: InStock

SKU

PNM-C32083RVQ

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision PNM-C32083RVQ 32 Megapixel Network Outdoor Dome Camera with 3.3-5.7mm Lens PNM-C32083RVQ by Hanwha Vision

Model No

PNM-C32083RVQ

was $1,874.56 Special Price $1,847.99

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

8MP x 4ch multi-directional camera, using one IP address
15fps@8MP (H.265, H.264) AI ON, 20fps@8MP (H.265, H.264) AI OFF
3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorized varifocal lens
Integrated IR that rotates with camera head, IR viewable length [PoE+] 15m (49ft) / [HPoE*] 20m (65ft)
H.265, H.264, MJPEG codec, Multi-streaming

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

32 Megapixel Network Outdoor Dome Camera with 3.3-5.7mm Lens

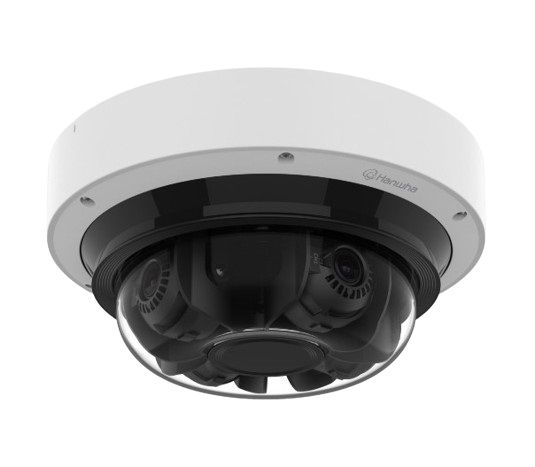

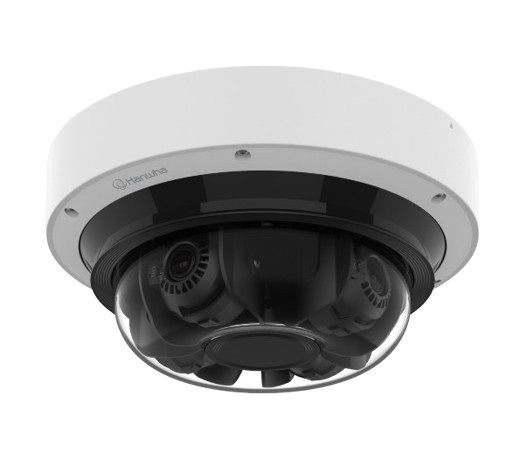

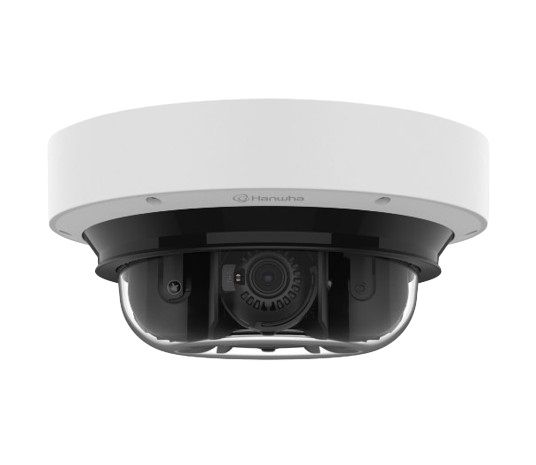

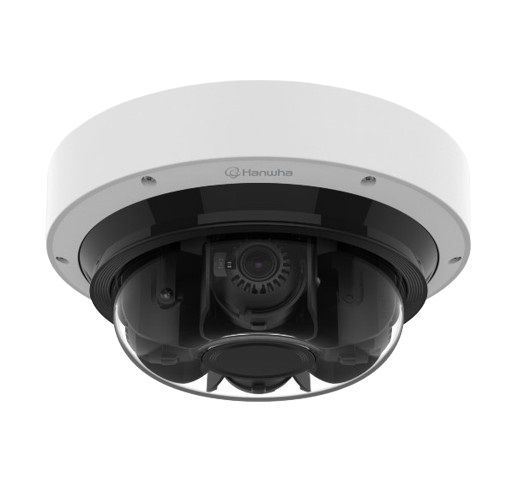

The PNM-C32083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 8MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoom, & focus control. The powerful AI capabilities enhance the license-free video analytics to reduce false alarms and provide quick and accurate forensic search with a compatible VMS.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Mirror

Motion Detection

ONVIF

Privacy Masking

Vandal Resistant

Weather Resistant

WDR

Camera Features


8MP x 4ch multi-directional camera, using one IP address	I/O Box compatibility for audio & alarm I/O
15fps@8MP (H.265, H.264) AI ON, 20fps@8MP (H.265, H.264) AI OFF	TPM with FIPS 140-2 level 2
3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorized varifocal lens	micro SD card 512GB x2
Integrated IR that rotates with camera head, IR viewable length [PoE+] 15m (49ft) / [HPoE*] 20m (65ft)	Operating Temperature: -40°C~+55°C (-40°F~+131°F)
H.265, H.264, MJPEG codec, Multi-streaming	PoE+ / HPoE* powered
120dB WDR	Hard-coated dome bubble
USB port for easy installation	IP66, IK10, NEMA4X
Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle) ], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear	Easy Gangbox mounting installation
WiseNR …¡ (using AI engine), WiseStream…¢ (Based on AI engine)	HPoE injector not included. HPoE / 20m IR performance will be available via a future firmware update

Specifications

SKU	PNM-C32083RVQ
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	0~60 Feet
Resolution	32 Megapixel
Lens Type	Varifocal
Lens Size	3.3-5.7mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG, H.265
Durability	Vandal Resistant, Weather Resistant
Voltage	PoE+
Automatic Gain Control (AGC)	Low / Middle / High
Dimensions (W x H)	ø250x114.2mm(ø9.84x4.50")
Electronic Shutter	Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine)
Image Device	1/2.8" CMOS x 4CH
Minimum Scene Illumination	Color: 0.1Lux(F1.5, 1/30sec, 30IRE) BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on)
Operating Humidity	0~95% RH(non-condensing)
Operating Temperature	-40°C~+55°C(-40°F~+131°F)
Power Consumption	PoE+: Max 25.5W, typical 22.0W
Privacy Zone	6ea, rectangular zones - Color: Grey/Black/White
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
Weatherproof	IP66
Digital Noise Reduction	SSNRⅤ, WiseNRⅡ(Based on AI engine)
Angle of View	H: 109°(Wide)~56°(Tele) V: 55°(Wide)~31°(Tele) D: 136°(Wide)~65°(Tele)
Rotation Angle	Flip, Mirror, Hallway view(90°/270°) - Each channel separately
Motion Detection Tracking	8ea, 8point Polygonal zones
Back Light Compensation	BLC, WDR, SSDR
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor
IR Distance	15m/49.21ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
