Hanwha Vision PNM-A13022RV 13 Megapixel AI Network Outdoor IR Multi-Sensor Panoramic Camera with 3mm Lens
SKU
PNM-A13022RV
Model No
PNM-A13022RV
$2,155.43
Product Highlights
- Max.13MP panoramic stitching image
- Horizontal 194°, Vertical 93° field of view
- H.265/H.264/MJPEG Max. 30fps
- Analytics events based on AI engine:
- Object detection (Person/Face/Vehicle/License plate)
Speak to an expert
13 Megapixel AI Network Outdoor IR Multi-Sensor Panoramic Camera with 3mm Lens
- The Hanwha Vision PNM-A13022RV is a cutting-edge 13 Megapixel AI network outdoor IR multi-sensor panoramic camera, designed to deliver exceptional surveillance capabilities. Its advanced imaging technology and robust performance ensure detailed monitoring over expansive areas, making it ideal for various outdoor settings.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Max.13MP panoramic stitching image | Business intelligence based on AI engine: |
| Horizontal 194°, Vertical 93° field of view | People/Vehicle/Crowd counting, Queue management, Heatmap |
| H.265/H.264/MJPEG Max. 30fps | Support BestShot and full attributes |
| Analytics events based on AI engine: | WiseNRⅡ (Based on AI engine) , WiseStream (Based on AI engine) |
| Object detection (Person/Face/Vehicle/License plate) , | WiseIR: IR viewable length 20m (65.6ft) |
| IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) , | IP66, NEMA4X, IK10 |
| Slip&Fall detection, Face mask detection, | Device certificate (Hanwha Vision Root CA) , |
| Social distancing detection, Motion detection | Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified) |
Crisp 13MP Panoramic Clarity
13MP high-resolution imaging provides a clear, panoramic angle, making it ideal for monitoring wide parks, streets, and urban areas.

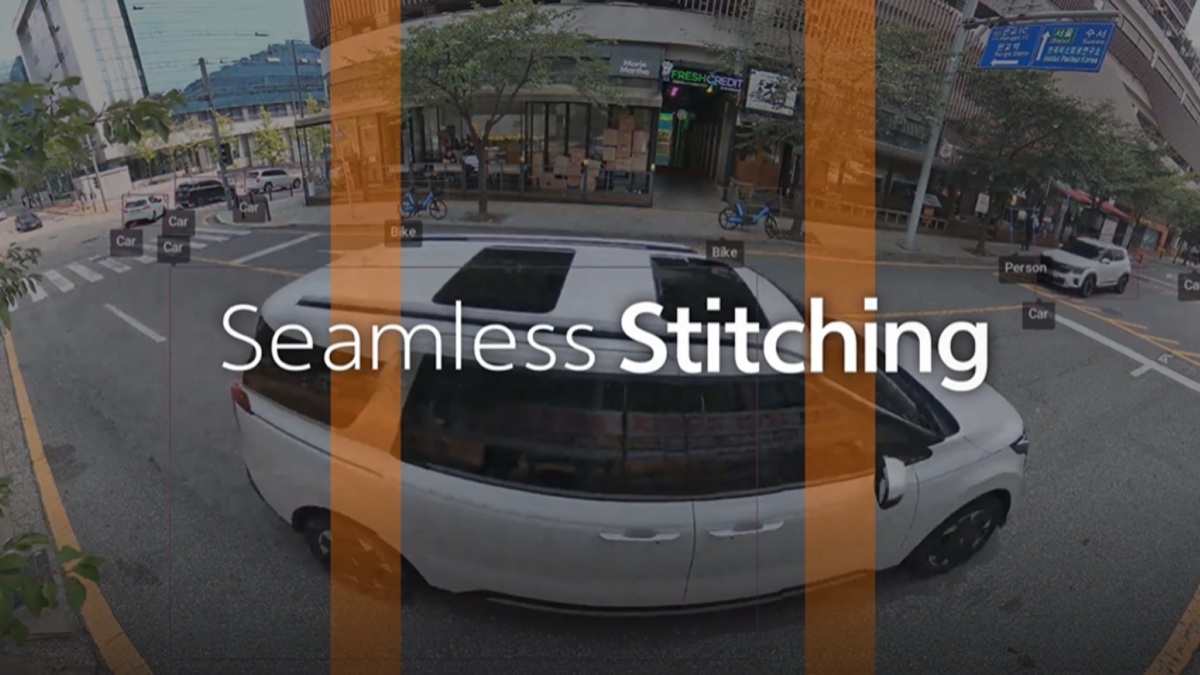

Seamless Image Stitching
3 sensors are seamlessly stitched to form 1 clear video image, minimizing distortion.
Wide area monitoring with Panoramic camera
The panoramic camera delivers high-definition monitoring with an expansive 194 ° horizontal and 93 ° vertical field of view.

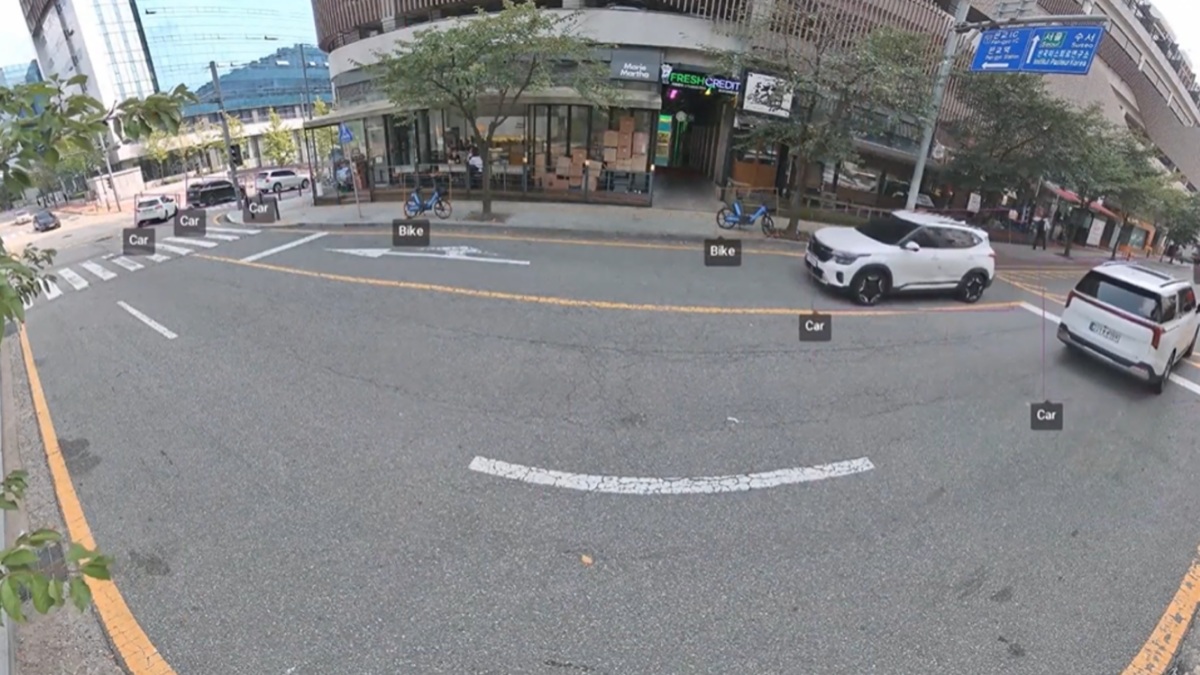

AI-Powered Detection
Smarter, faster analytics for real-time, accurate event alerts while providing the panoramic camera’s wide field of view.
Additional Hanwha Vision Products
SKU  | PNM-A13022RV |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 13 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Low, Middle, High |
| Dimensions (W x H) | ø253x170mm(9.96x6.69") |
| Electronic Shutter | 2~1/12,000sec |
| Image Device | 1/2.8" CMOS |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 0.01 |
| Operating Humidity | 0~100% RH(condensing) |
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) |
| Power Consumption | Max 22.3W, typical 11.5W |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Automatic White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| IR Distance | 20m/65ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
PNM-A13022RV-Specsheet PNM-A13022RV-Manual PNM-A13022RV-Quick-Guide
