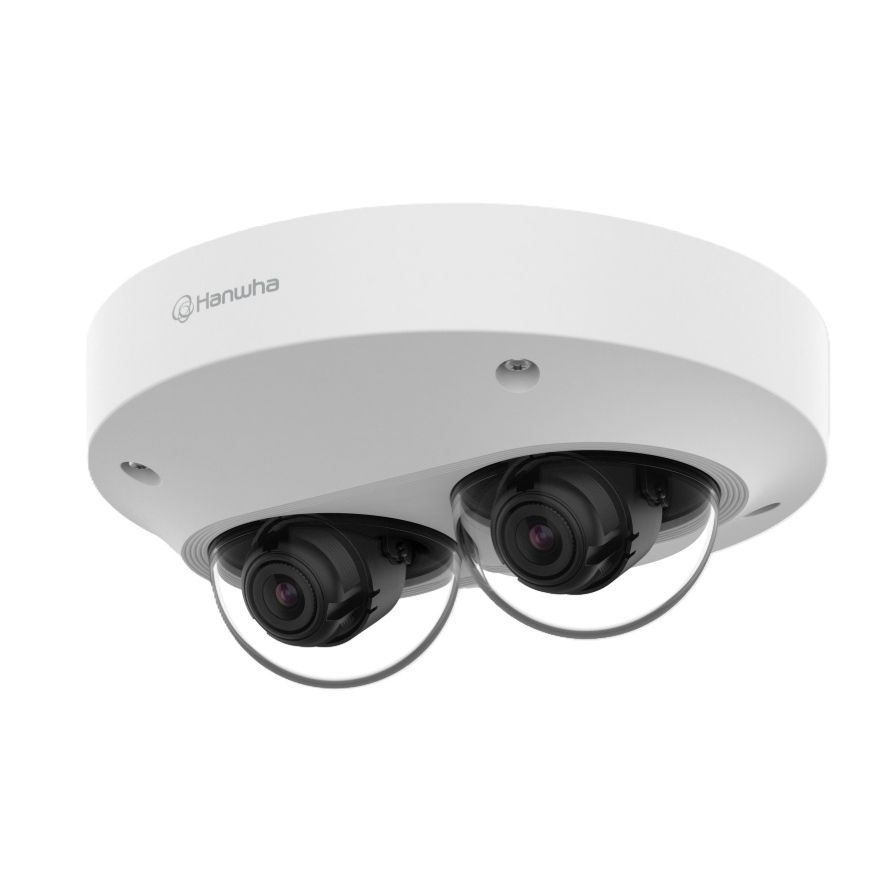

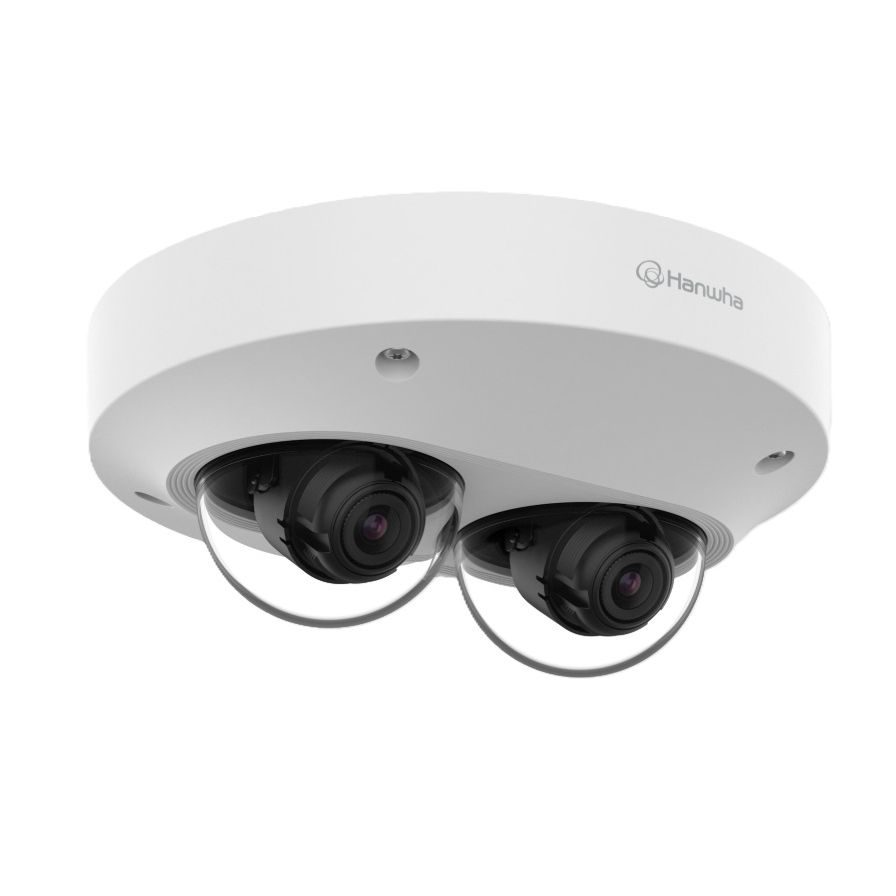

Hanwha Vision PNM-9000VD 2x 5 Megapixel Multi-Sensor, Multi-directional Camera
SKU
PNM-9000VD
Model No
PNM-9000VD
$650.76
Product Highlights
- Interchangeable 2 x 5 MP lens modules
- 3.7mm, 4.6mm, 7mm fixed lens options
- 30fps@all resolution (H.265 / H.264)
- Micro SD / SDHC / SDXC memory slots x 2
- IP66, IK10, PoE
Speak to an expert
The PNM-9000VD from Hanwha Vision is a cutting-edge dual-head network vandal outdoor multi-sensor dome camera that offers outstanding surveillance capabilities. With two 5MP sensors, this camera provides exceptional image quality and performance. Key features include triple codec support with WiseStream II technology for efficient bandwidth usage, robust weatherproofing with IP66 and IK10 ratings, and intelligent video analytics for enhanced security monitoring. Ideal for diverse environments, it operates effectively in extreme temperatures and delivers reliable performance with built-in storage options.
Hanwha Vision PNM-9000VD Camera Features
- Interchangeable 2 x 5 MP lens modules for flexible installation and adaptability to various surveillance needs.
- 3.7mm, 4.6mm, 7mm fixed lens options allow for tailored field of view, ensuring optimal coverage.
- 30fps@all resolution (H.265 / H.264) ensures smooth video playback, enhancing real-time monitoring.
- H.265, H.264, MJPEG codec, Multi streaming support enables high-quality video transmission while minimizing bandwidth consumption.
- Intelligent video analytics, WiseStream II optimizes storage and bandwidth, providing efficient video management.
- Micro SD / SDHC / SDXC memory slots x 2 offer ample storage for recorded footage, enhancing reliability.
- IP66, IK10, PoE ratings ensure durability against environmental conditions and ease of installation.
Detailed Camera Specifications for Hanwha Vision PNM-9000VD
| Camera Type | Dual-head Multi-sensor Dome |
| Resolution | 10MP (2 x 5MP) |
| Frame Rate | 30fps at all resolutions |
| Lens Options | 3.7mm, 4.6mm, 7mm fixed focal lenses |
| Codec Support | H.265, H.264, MJPEG |
| Video Analytics | Intelligent analytics with WiseStream II |
| Storage | 2 x Micro SD/SDHC/SDXC slots |
| Weatherproof Rating | IP66 |
| Vandal Resistance | IK10 |
| Power Supply | PoE (Power over Ethernet) |
| Temperature Range | -40°C to +55°C (-40°F to +131°F) |
SKU  | PNM-9000VD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm, 4.6mm, 7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | Ø197.6 x 84mm (7.78x3.31") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Image Device | 1/1.8" 5MP CMOS |
| Image Pixels-Effective | 2616(H) x 1976(V) |
| Minimum Scene Illumination | Color : 0.16Lux (F1.6, 1/30sec, 30IRE), B/W : 0.16Lux (F1.6, 1/30sec, 30IRE) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -40°C~+55°C (-40°F~+131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | PoE : maximum 12.95W, typical 12.00W |
| Privacy Zone | 32ea, polygonal zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Weatherproof | IP66 |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
