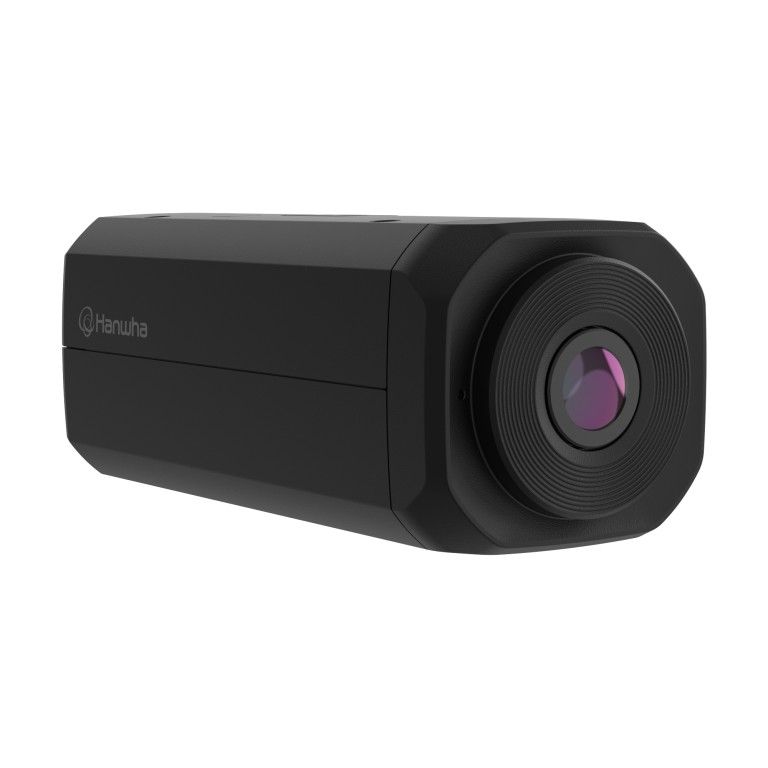

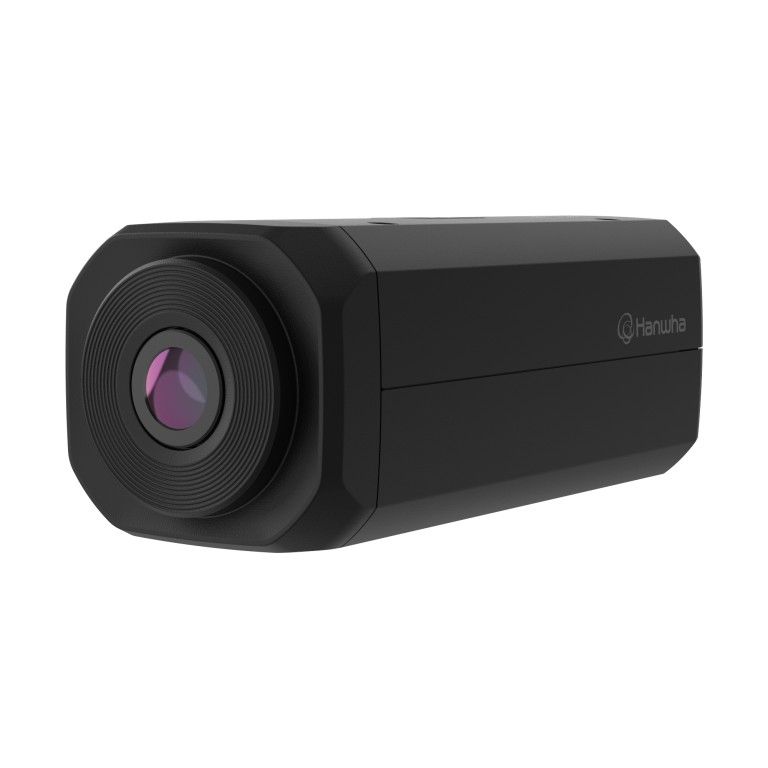

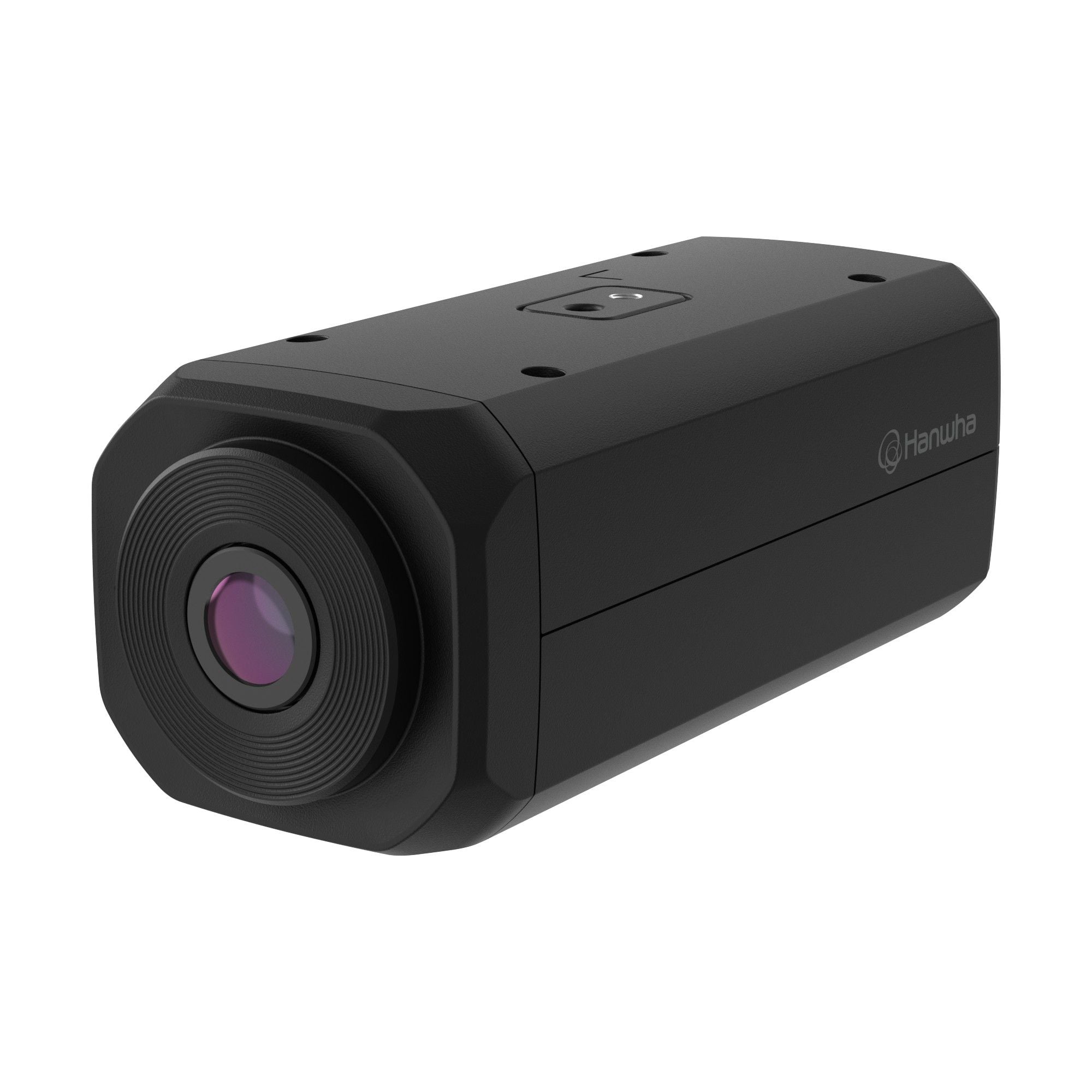

Hanwha Vision PNB-A9082 8 Megapixel Network IP AI Box Camera with 5.9-13.3mm Lens
SKU
PNB-A9082
Model No
PNB-A9082
$1,341.25
Product Highlights
- Powered by WN9, Network AI Box Camera
- 8MP Max Resolution 3840x2160 @ 30FPS
- Color: 0.015Lux(F1.5. 1/30sec, 30IRE)
- BW: 0.015Lux(F1.5. 1/30sec, 30IRE)
- 5.9~13.3mm (2.25x)
Speak to an expert
8 Megapixel Network IP AI Box Camera with 5.9-13.3mm Lens
- Hanwha Vision P series cameras come equipped with Wisenet 9, built with a dual NPU architecture to execute advanced AI analytics models and image optimization for exceptional performance.
See the details that matter
Leverage advanced license-free AI analytics with intelligent attribute extraction and expandable AI analytics packs tailored for any industry.More insights
Gain deeper insights with improved AI object detection, now including age, color and gender attributes.License-free analytics
Utilize AI-based video analytics for increased efficiency and custom notifications to maximize the performance of your security system.AI-based sound classification
The P series Gen 2 cameras use intelligent sound classification to automatically classify detected noise into predefined classes based on its acoustic characteristics.Dynamic privacy masking
P series cameras use Dynamic Privacy Masking (DPM) to protect sensitive objects, such as people, vehicles and license plates, ensuring compliance with privacy regulations without compromising security.Robust rules engine
Trigger recording, alerts, notifications and more using license-free analytics. Combine up to 3 event conditions to create custom triggers to maximize system efficiency.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Facial Recognition
Camera Features
| Powered by WN9, Network AI Box Camera | WiseNR …¡ (using AI engine) |
| 8MP Max Resolution 3840x2160 @ 30FPS | Day & Night (ICR) |
| Color: 0.015Lux (F1.5. 1/30sec, 30IRE) | extremeWDR (120dB) |
| BW: 0.015Lux (F1.5. 1/30sec, 30IRE) | DIS with Built-In Gyro Sensor |
| 5.9~13.3mm (2.25x) | Handover |
| FoV H:109°~49° | Dynamic Privacy Mask |
| Motorized Varifocal Lens | Operating Temp: -10°C~+55°C (14°F~+131°F) |
| H.265/H.264/MJPEG Codec | Secure element with FIPS 140-3 level3 |

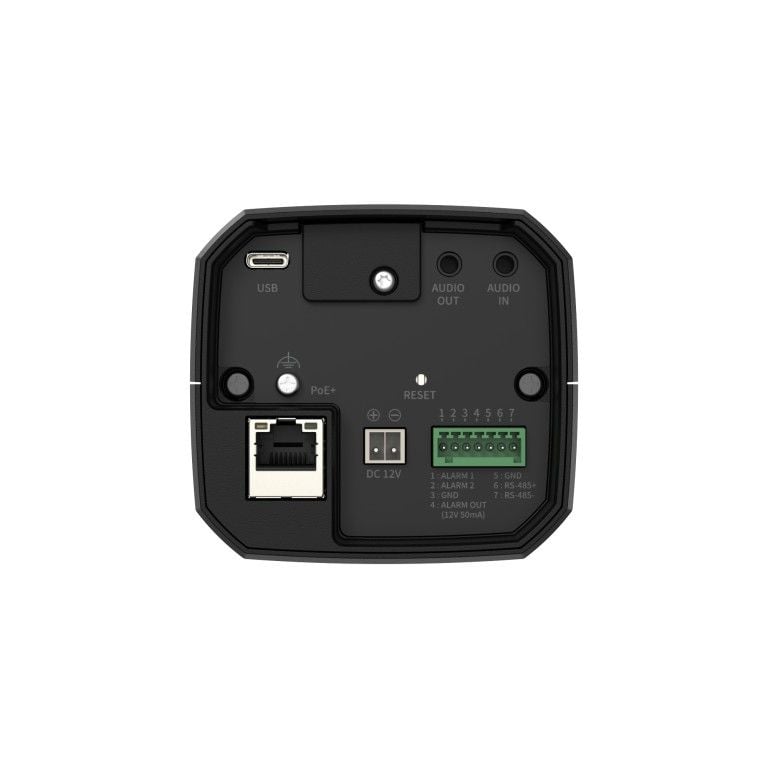

| USB Port for Easy Installation | Built-In MicroSD Card Slot (1TBx2) |
| Selectable microphone input (mic in/line in/built-in) | Power: PoE+/12VDC |
| AI-Based WiseStream | Metal shielded RJ-45 |
Additional Hanwha Vision Products
SKU  | PNB-A9082 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 5.9-13.3mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | PoE+, 12vDC |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | 82(W)x76(H)x190(D)mm(3.23x2.99x7.48") |
| Electronic Shutter | 2~1/30,000sec |
| Image Device | 1/1.2" CMOS |
| Minimum Scene Illumination | Color(1/30sec, 30IRE) 0.015 , BW(1/30sec, 30IRE) 0.0015 |
| Operating Humidity | 0~95% RH(non-condensing) |
| Operating Temperature | -10°C~+55°C(+14°F~+131°F) |
| Power Consumption | PoE Max. 13.6W, typical 12.7W , 12VDC Max. 11.5W, typical 10.9W |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | Horizontal 109°~49° , Vertical 59°~27° , Diagonal 128°~56° |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
