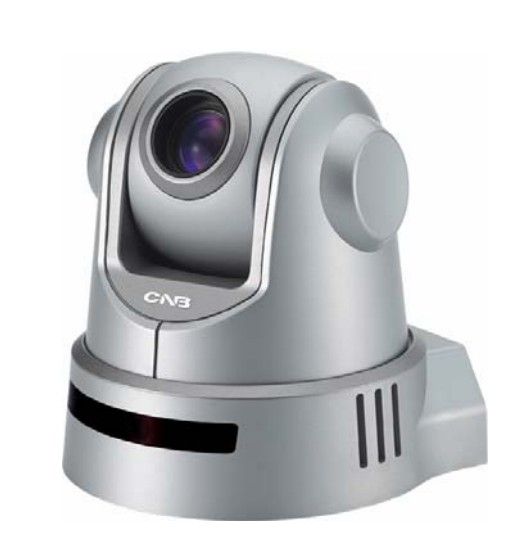

CNB PM3063N Indoor Mini Speed Dome Camera
SKU
PM3063N
Model No
PM3063N
$7.26
Product Highlights
- 100x Zoom(10x Optical / 10x Digital)
- Maximum speed Pan 360?/sec, Tilt 180 ?/sec
- Angular Speed : Pan 360?, Tilt 190 ?
- 127 preset positions, 8 Swings, 4 Patterns, 8 Groups
- Auto Flip, Auto Parking
Speak to an expert
The CNB PM3063N Indoor Mini Speed Dome Camera offers advanced surveillance capabilities with its high image quality and versatile features. Equipped with a powerful zoom and rapid pan and tilt speeds, this camera is ideal for various indoor applications. Its true day/night functionality, combined with impressive preset options, ensures comprehensive monitoring with ease and reliability.
CNB PM3063N Camera Features
- 100x Zoom (10x Optical / 10x Digital): Allows for detailed close-ups, ensuring clarity of distant subjects.
- Maximum speed Pan 360°/sec, Tilt 180°/sec: Enables quick repositioning, ensuring no area goes unmonitored.
- Angular Speed: Pan 360°, Tilt 190°: Facilitates rapid movement for dynamic tracking of moving subjects.
- 127 preset positions, 8 Swings, 4 Patterns, 8 Groups: Offers customizable surveillance routines for thorough coverage and efficiency.
- Auto Flip, Auto Parking: Enhances user convenience by automatically adjusting the camera's position.
- TDN (ICR), DSS, OSD, SDNR: Provides advanced imaging features for improved low-light performance and user display options.
- Auto focus, Auto parking functions: Simplifies operation, ensuring optimal focus and positioning without manual adjustments.
- Electric Flip function: Allows seamless transitions, enhancing the camera's ability to track targets smoothly.
CNB PM3063N Detailed Camera Specifications
| Image Sensor | ¼” IT CCD |
| Resolution | 500 TV Lines |
| Effective Pixels | 768 x 494 |
| S/N Ratio | 50 dB |
| Digital Zoom | 10x |
| Power Supply | DC 12V |
| Communication | RS-485 Compatible |
| Additional Features | DSS, OSD, SDNR, USB Port |
SKU  | PM3063N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Privacy Masking |
| Manufacturer | CNB |
Camera Signal  | Analog |
| Resolution | 500 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Motorized Zoom |
| Lens Size | 10X |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 ~ 1/120,000 sec |
| Image Device | 1/4 Inch IT CCD |
| Image Pixels Total | 811(H) x 508(V) 410K |
| Image Pixels-Effective | 811(H) x 508(V) 410K |
| Minimum Scene Illumination | 0.7 Lux (Color) / 0.02 Lux (B/W), 50IRE |
| Power Consumption | 3.5W |
| S/N Ratio | More than 50dB (AGC Off) |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 59.94Hz |
| Signal System | NTSC |
| Video Output | 1.0Vp-p (75 ohm, composite) |
| Zoom Ratio | 10x |
| Digital Noise Reduction | Low / Middle / High / Off |
| Automatic White Balance | Auto/Manual (Red, Blue Gain Adjustable) |
| Flickerless | Low / Middle / High / Off |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
PM3063N-Specsheet PM3063N-Instruction-Manual
