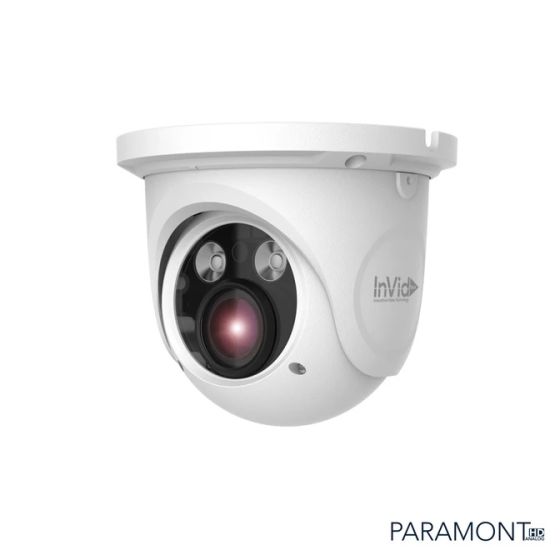

InVid PAR-C5TXIRA2812 5 Megapixel TVI / AHD / CVI / CVBS Outdoor IR Dome Camera, 2.8-12mm Lens
SKU
PAR-C5TXIRA2812
Model No
PAR-C5TXIRA2812
$120.00
Product Highlights
- 5 Megapixel Resolution (2592 x 1944)
- Motorized Auto-Focus 2.8-12mm Lens
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- 98’ Smart IR Range
- True Day/Night
The PAR-C5TXIRA2812 from InVid is a 5 megapixel TVI / AHD / CVI / CVBS outdoor IR dome camera, 2.8-12mm lens.
Features
- 5 Megapixel Resolution (2592 x 1944)
- Motorized Auto-Focus 2.8-12mm Lens
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- 98’ Smart IR Range
- True Day/Night
- D-WDR
- Up The Cable (UTC) Function
- IP66 Weather Resistant
- 12VDC Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
SKU  |
PAR-C5TXIRA2812 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
InVid |
Camera Signal  |
Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution |
5 Megapixel |
| Lens Type |
Varifocal |
| Lens Size |
2.8-12mm |
| Infrared Distance |
101 Feet + |
| Durability |
Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC |
| Electronic Shutter |
Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC ) |
| Image Device |
1 / 2.7 “CMOS |
| IR Distance |
98m/321ft |
| Minimum Scene Illumination |
Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
| Operating Humidity |
10 % ~ 90 % (relative humidity) |
| Operating Temperature |
-22°F ~ 122°F(-30 °C ~ 50 °C) |
| Dimensions (W x H) |
5.1 x 4.2 in (130.3 x 109mm) |
| Power Consumption |
IR OFF : < 1W; IR ON : < 3W |
| S/N Ratio |
≥52dB ( AGC OFF ) |
| Signal System |
PAL / NTSC |
| Video Output |
CVBS |
| Weatherproof |
IP66 |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Mirror |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
| Auto Gain Control |
Yes |
