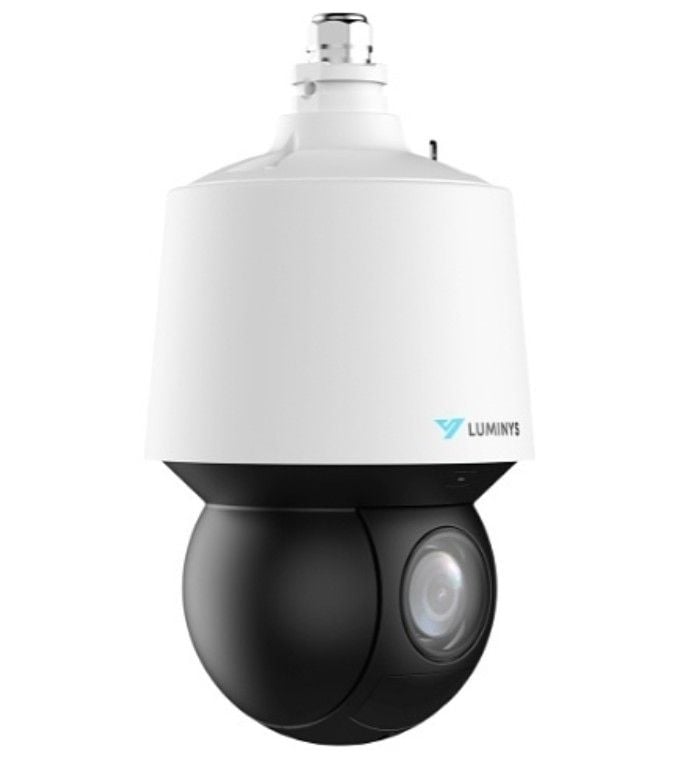

Luminys P45-8RA25 8 Megapixel Network IP PTZ Camera with 25X Lens
SKU
P45-8RA25
Model No
P45-8RA25
$1,687.49
Product Highlights
- 8MP Dome Housing
- 25x Maximum Optical Zoom
- Video Content Analytics: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- Face Detection, People Counting
- iMD, LumiTracking, LumiFocus
Speak to an expert
The P45-8RA25 is part of Luminys’s mainstream series of security devices, offering a robust suite of advanced LumiTechnologies tailored for modern security needs. With exceptional image quality and intelligent analytics, this camera is designed to enhance surveillance capabilities for a variety of environments.
Luminys P45-8RA25 Camera Features
- 8MP Dome Housing: Provides high-resolution imaging for detailed surveillance footage.
- 25x Maximum Optical Zoom: Allows for clear imaging from a distance, making it perfect for expansive areas.
- Video Content Analytics: Features like Line Crossing, Intrusion, Loitering Detection, and Parking Detection improve threat detection and response times.
- Face Detection, People Counting: Enhances security by accurately identifying individuals and monitoring crowd dynamics.
- iMD, LumiTracking, LumiFocus: Intelligent functions that optimize image clarity and tracking capabilities in various conditions.
- LumiPolarPro and LumiDesertPro: Specialized imaging technologies for distinct lighting conditions ensuring reliable performance.
Detailed Specifications for Luminys P45-8RA25
| Camera Type | Dome |
| Resolution | 8 Megapixels |
| Optical Zoom | 25x |
| Analytics Features | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Face Detection | Yes |
| People Counting | Yes |
| Special Technologies | iMD, LumiTracking, LumiFocus, LumiPolarPro, LumiDesertPro |
SKU  | P45-8RA25 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 25X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 24vDC |
| Dimensions (W x H) | Φ191.0 mm × 332.0 mm (Φ7.5 in. × 13.1 in.) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/1.8-in. 8MP Progressive CMOS |
| IR LEDs | Four (4) |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.6 , Black/White: 0.0005 Lux at F1.6 0 Lux With IR On |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| OSD Menu | 23 W (Max.) |
| Privacy Zone | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Protocols | > 55 dB |
| Video Output | IP67, IK10 |
| Synchronization | 3D NR |
| Processor | Horizontal: 61.6° to 3.6° , Vertical: 35.7° to 2.0° , Diagonal: 66.6°to 4.0° |
| Rotation Angle | Supported with Alarms for Vehicles and Humans |
| Back Light Compensation | 180° |
| Automatic White Balance | Yes |
| IR Distance | 150m/492.1ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
