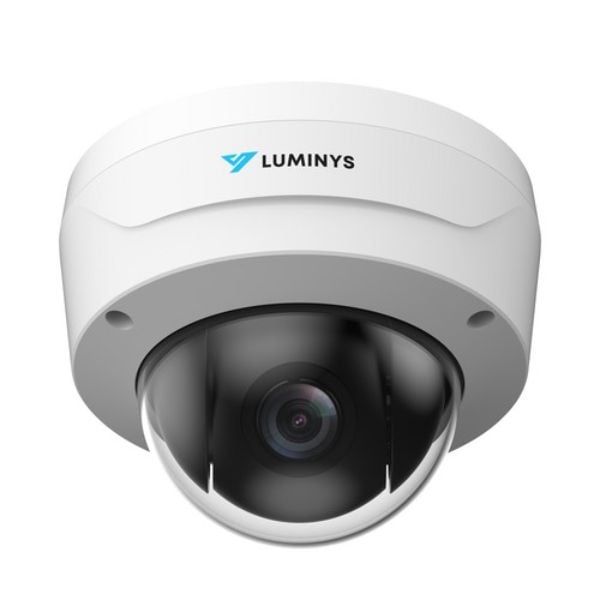

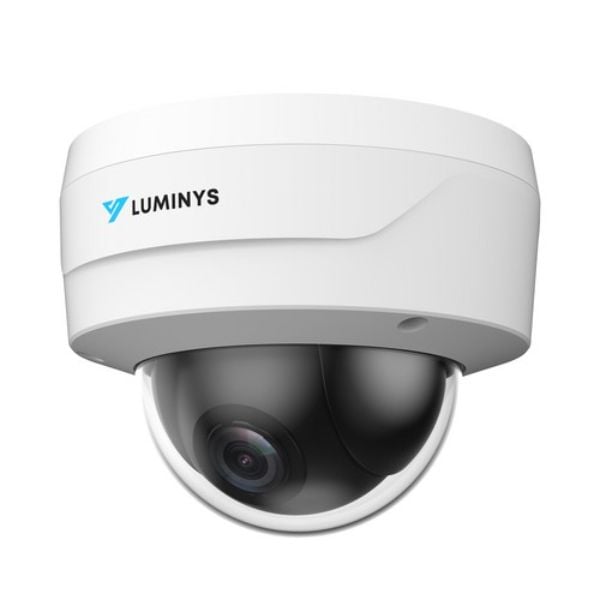

Luminys P22-4TA4 4 Megapixel Network IP PTZ Camera with 4X Lens
SKU
P22-4TA4
Model No
P22-4TA4
$680.38
Product Highlights
- 4MP Dome Housing
- 4x Maximum Optical Zoom
- Video Content Analytics: Line Crossing, Intrusion
- Face Detection
Speak to an expert
The Luminys P22-4TA4 4 Megapixel Network IP PTZ Camera is designed to deliver high-quality surveillance with advanced features for enhanced security. With its 4MP resolution and 4X optical zoom, this camera provides clear, detailed images, while powerful video analytics, including line crossing and intrusion detection, ensure proactive monitoring. Perfect for both indoor and outdoor installations, it offers robust performance for all your surveillance needs.
Luminys P22-4TA4 Camera Features
- 4MP Dome Housing: Ensures high-resolution imaging for clear visibility over a large area, making it ideal for security in various environments.
- 4x Maximum Optical Zoom: Allows you to zoom in on specific areas for detailed observation without losing image quality.
- Video Content Analytics: Features like line crossing and intrusion detection enable smart monitoring by automatically alerting users to suspicious activities.
- Face Detection: Enhances security by identifying and tracking individuals, making it easier to manage access control.
Detailed Specifications for Luminys P22-4TA4
| Camera Type | Network IP PTZ Camera |
| Resolution | 4 Megapixels |
| Zoom Capability | 4x Optical Zoom |
| Video Analytics | Line Crossing, Intrusion Detection |
| Face Detection | Yes |
| Housing Type | Dome |
SKU  | P22-4TA4 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 4X |
| Mount Type | Ceiling, Wall |
| Compression Method | Smart H.264, Smart H.265, Smart H.265+, Smart H.264+, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 89.0 mm × Φ122.0 mm (3.5 in. × Φ4.8 in.) |
| Electronic Shutter | 1/1 s to 1/30,000 s |
| Image Device | 1/2.8-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.6 Black and White: 0.0005 Lux at F1.6 |
| Operating Temperature | –30 °C to 60 °C (–22 °F to 140 °F) |
| Power Consumption | 2.3 W (Basic), 6.2 W (Max.) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UpnP, ICMP, SNMP, SNMPv1/v2c/v3(MIB-2), GMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| S/N Ratio | > 55 dB |
| Weatherproof | IP66, IK10 |
| Digital Noise Reduction | 3D NR |
| Angle of View | Horizontal: 90° to 29° Vertical: 49° to 17° Diagonal: 106° to 34° |
| Automatic White Balance | Automatic, Indoor, Outdoor, ATW, Manual, Sodium Lamp, Natural Light, Street Lamp |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
