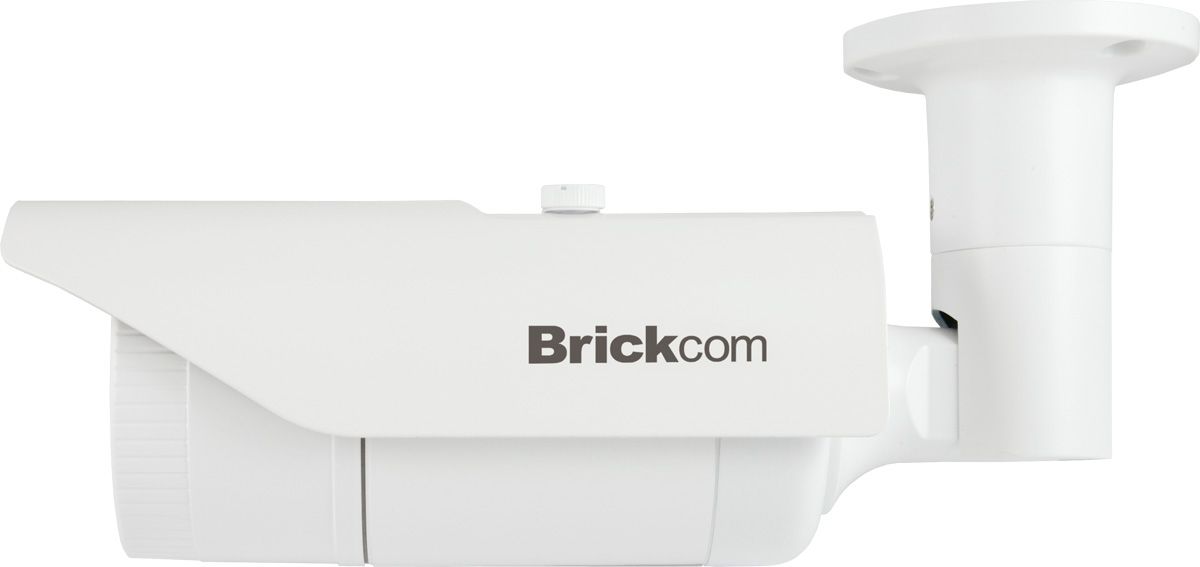

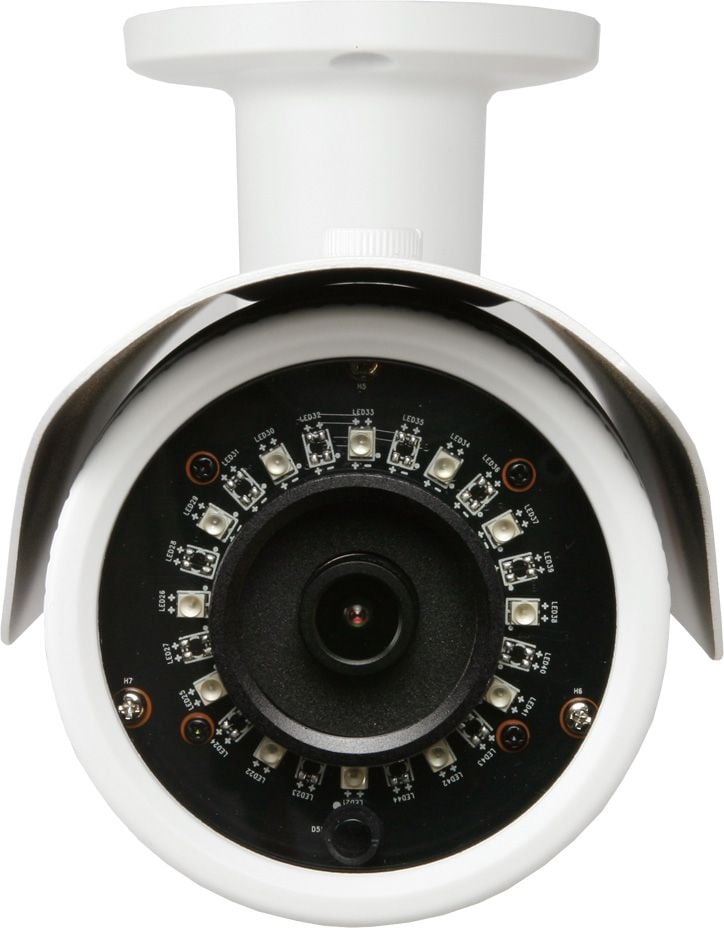

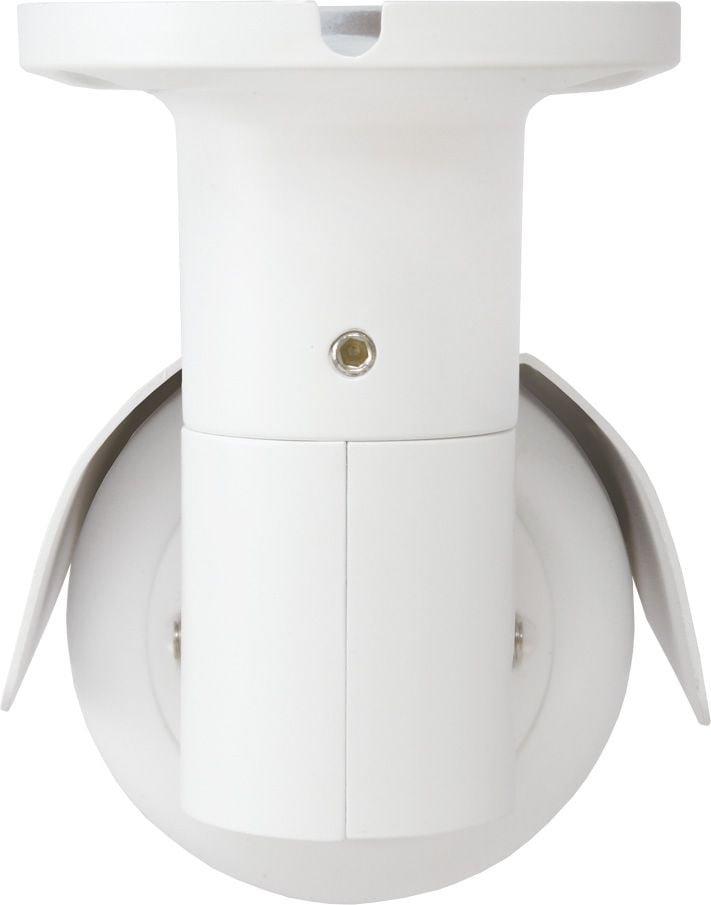

Brickcom OB-202Ae-V5 2 Megapixel Outdoor Bullet Network Camera
SKU
OB-202Ae-V5
Model No
OB-202Ae-V5
$249.48
Product Highlights
- Most Intelligent, Compact and Affordable 2M Outdoor Bullet Camera
- Cost Effective/ Full Features Camera
- HDTV Quality (Full HD 1080p @ 30fps Streaming)
- Intelligent Multi-Profile Sensor Management® for Different Environments
- Removable IR-cut Filter /Auto Light Sensor for Day and Night
Speak to an expert
2 Megapixel Outdoor Bullet Network Camera.
CCTV Resolution Comparison
Features
- Most Intelligent, Compact and Affordable 2M Outdoor Bullet Camera
- Cost Effective/ Full Features Camera
- HDTV Quality (Full HD 1080p @ 30fps Streaming)
- Intelligent Multi-Profile Sensor Management® for Different Environments
- Removable IR-cut Filter /Auto Light Sensor for Day and Night
- Unique Design for Low Lux Application (1/2.5” Sensor)
- Built-in Micro SD/SDHC Memory Card Slot for Local Storage
- IP66 Outdoor Enclosure
- 1 DI/DO for External Alarm and Sensor Device
- Power over Ethernet
SKU  | OB-202Ae-V5 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, ONVIF, Weather Resistant |
| Manufacturer | Brickcom |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.3-10.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | 1X~32X |
| Dimensions (W x H) | 288.6 (L) 122.9 (W) X 127.5 (H) mm |
| Image Device | 1/2.5” CMOS Sensor |
| IR LEDs | 12 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 0 Lux (IR ON, B/W), 0.008 Lux (IR OFF, B/W), 0.01 Lux (F1.4, Color) |
| Operating Humidity | 10% ~ 80% |
| Operating Temperature | -20°C ~ 50°C (-4°F ~122°F) |
| Power Consumption | 8 Watts |
| Protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6 |
| S/N Ratio | 38.1 dB |
| Weatherproof | IP66 |
| Automatic White Balance | 2000K~7000K |
| IR Distance | up to 15m |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| ONVIF | Yes |
