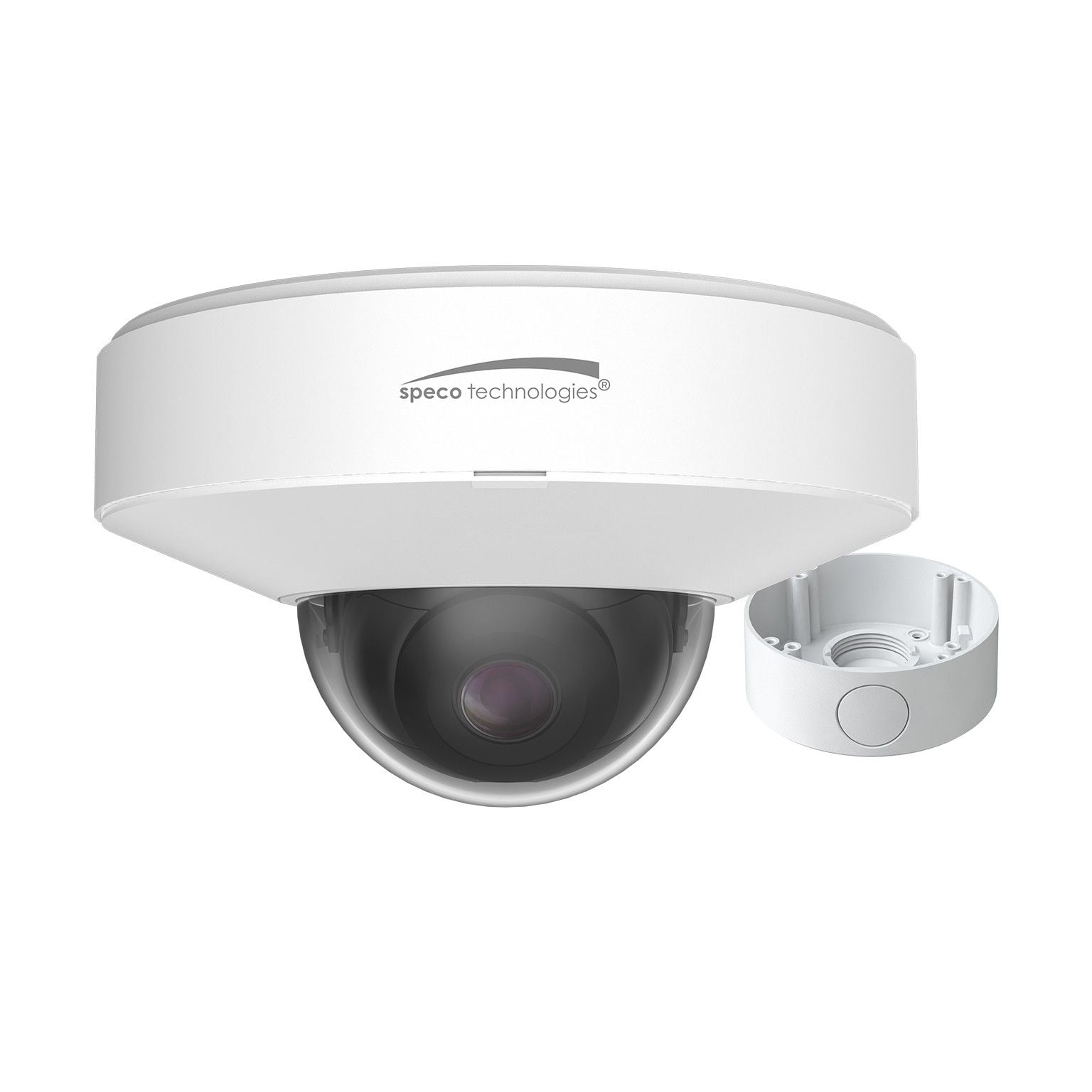

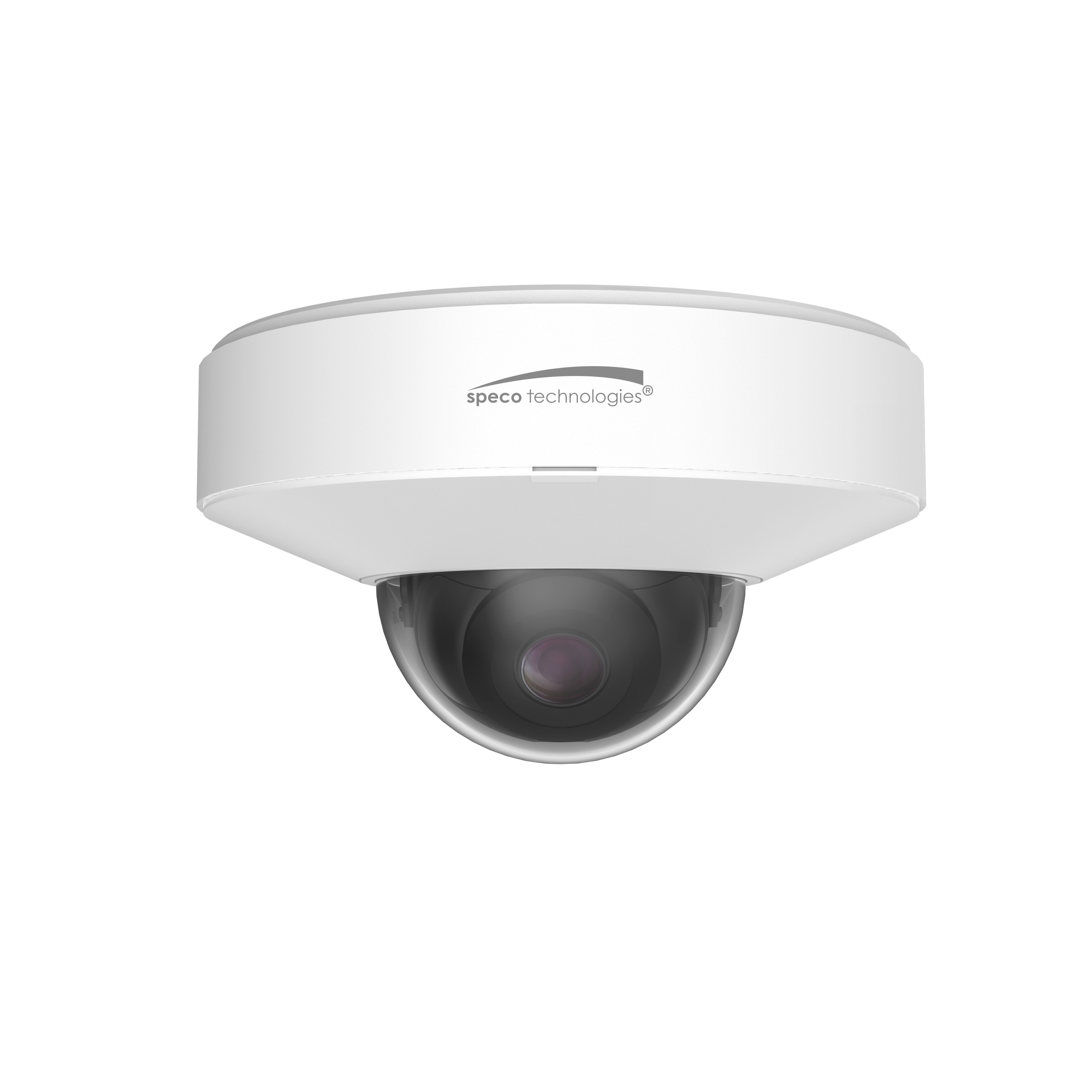

Speco O8P4N 8 Megapixel Network IP Advanced Analytics Mini-Dome Camera with 2.8mm Lens, White Housing
SKU
O8P4N
Model No
O8P4N
$312.34
Product Highlights
- Supports up to 8MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- H.265/H.264/MJPEG compression supported
- True Day/Night operation (IR cut filter)
- Adaptive IR LEDs reduce IR saturation
Speak to an expert
The Speco O8P4N 8 Megapixel Network IP Advanced Analytics Mini-Dome Camera delivers exceptional image quality and advanced features, perfect for both residential and commercial surveillance needs. With high-resolution capabilities and intelligent analytics, this camera ensures reliable performance day and night, making it a valuable asset for security monitoring.
Speco O8P4N Camera Features
- Resolution: Supports up to 8MP at 30 frames per second for crystal-clear imaging.
- Power Efficiency: Built-in standard Power over Ethernet (PoE, IEEE 802.3af) simplifies installation and reduces cabling requirements.
- Versatile Compression: Supports H.265, H.264, and MJPEG compression formats to optimize storage and bandwidth.
- Day/Night Functionality: True Day/Night operation with an IR cut filter ensures optimal performance in varying light conditions.
- Adaptive IR Technology: IR LEDs reduce saturation while providing effective night vision, enhancing surveillance in low-light environments.
Detailed Specifications for Speco O8P4N
| Model | Speco O8P4N |
| Image Sensor | 8 Megapixel |
| Lens | 2.8mm |
| Frame Rate | Up to 30fps |
| Power Supply | PoE (IEEE 802.3af) |
| Compression Formats | H.265/H.264/MJPEG |
| Day/Night Function | True Day/Night with IR cut filter |
| IR LEDs | Adaptive for reduced saturation |
SKU  | O8P4N |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Mirror, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Speco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 4.346”Ø x 2.441”(H) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Image Device | Progressive scan 1/2.8” CMOS |
| Minimum Scene Illumination | 0.02lux @ F1.6(AGC ON) ; 0 lux with IR |
| Operating Humidity | Less than 95 % (non-condensing) |
| Operating Temperature | -22°F - 140°F |
| Power Consumption | 7W (max) |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal: 104°, vertical: 55°, Diagonal: 125° |
| Rotation Angle | 0° ~ 350° |
| Automatic White Balance | Auto, Indoor, Outdoor, Manual |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
