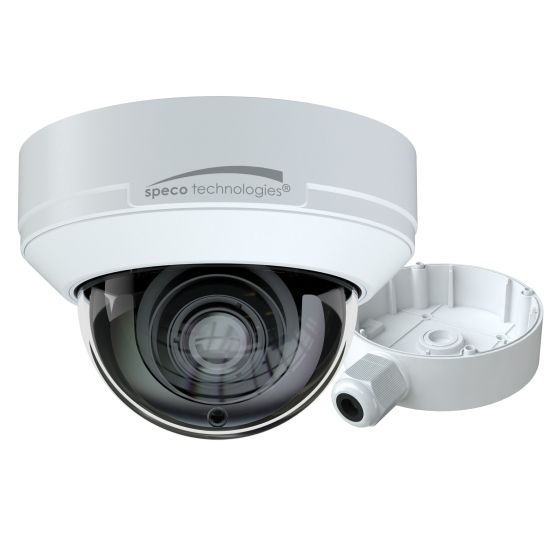

Speco O8D9M 8 Megapixel Network IR Outdoor Dome Camera with 2.8-12mm Lens

SKU
O8D9M
Model No
O8D9M
$441.83
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Captures up to 8MP @ 30fps
  • Up to 4x optical zoom
  • Built-in standard PoE (IEEE 802.3af)
  • True Day/Night operation (IR cut filter)
  • IR range: up to 98' to 164'(depending on scene reflection)

The O8D9M from Speco is a powerful 8-megapixel network IR outdoor dome camera featuring a versatile 2.8-12mm lens, designed for high-quality surveillance in various environments. With advanced features such as true WDR operation, dual-way audio capability, and exceptional weather resistance, this camera ensures reliable monitoring day and night.

Speco O8D9M Camera Features

  • High Resolution: Captures up to 8MP @ 30fps for crystal clear images, providing enhanced detail for better surveillance.
  • Optical Zoom: Up to 4x optical zoom allows for flexible viewing angles and greater detail from a distance.
  • Built-in PoE: Standard PoE (IEEE 802.3af) makes installation easier by eliminating the need for additional power cables.
  • True Day/Night Operation: Equipped with an IR cut filter for optimal performance in both day and night conditions.
  • IR Range: Infrared vision range of up to 164’, ensuring visibility even in total darkness.
  • True WDR: Wide dynamic range technology helps to balance bright and dark areas within a scene for clearer images.
  • Micro SD Card Slot: Supports cards up to 256GB (card not included) for local storage of recorded footage.
  • Smart Detection: Features line crossing, region intrusion, and video blurring detection for advanced security alerts.
  • Face/People/Vehicle Detection: Intelligent algorithms detect specific objects, enhancing monitoring efficiency.
  • Two-way Audio: Built-in microphone and speaker support communication for interactive surveillance.
  • Weather Resistance: IP67 rating protects against dust and water ingress, allowing outdoor use in various conditions.
  • Vandal Resistance: IK10 rating ensures durability against impact damage, making it suitable for high-risk areas.
  • Junction Box: Included junction box compatible with NPT/BSP specifications for easy mounting.
  • ONVIF Conformance: Supports ONVIF Profile G/S/T for easy integration with other security systems.
  • NDAA Compliance: Ensures adherence to the National Defense Authorization Act, supporting secure purchasing practices.

Detailed Specifications for Speco O8D9M

ModelO8D9M
TypeOutdoor Dome Camera
Resolution8 Megapixels
Frame Rate30fps
Lens2.8-12mm
Optical ZoomUp to 4x
Infrared RangeUp to 164’
Power Over EthernetYes (IEEE 802.3af)
StorageMicro SD card slot (up to 256GB)
AudioTwo-way audio support
Weather ResistanceIP67
Vandal ResistanceIK10
IntegrationONVIF Profile G/S/T
ComplianceNDAA Compliant
SKU  O8D9M
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Speco
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  5.55” (Dia.) x 3.94” (H) (141mm x 100.2mm)
Electronic Shutter    1 sec. ~ 1/100000 sec.
Image Device    Progressive scan 1/2.8” CMOS, 8MP
Minimum Scene Illumination  0.015lux @ F1.4, AGC ON; 0 lux with IR
Operating Humidity    Less than 95 % (non-condensing)
Operating Temperature    -40°F ~ 140°F (-40°C ~ 60°C)
Power Consumption  10.5W (max)
Protocols  UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    (H): 96° ~ 32°; (V): 64° ~ 18.4°; (D): 103.8° ~ 36.5°
IR Distance  49m/164ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
