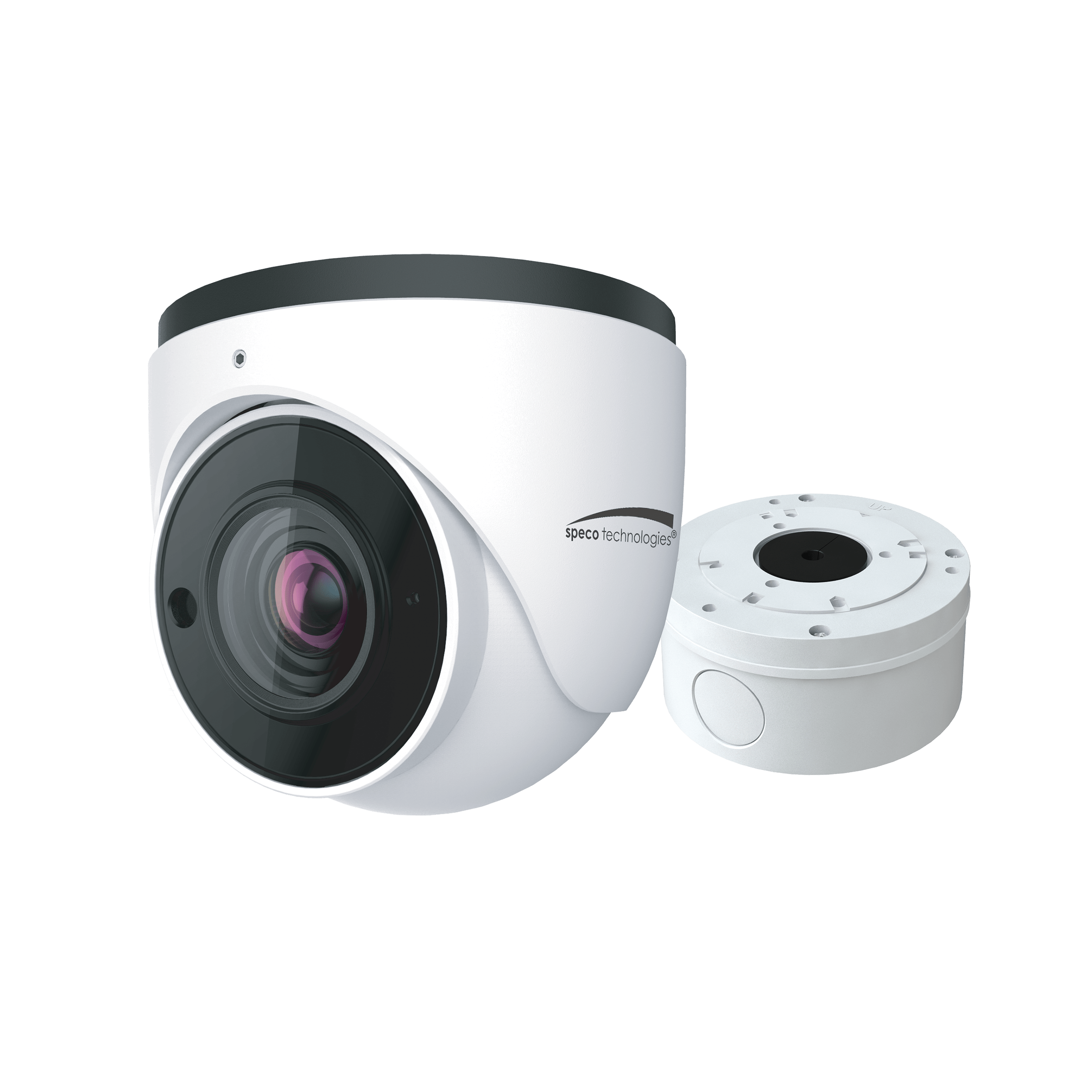

Speco O4VT1M 4 Megapixel Outdoor IP Turret Dome Camera, 2.8-12mm Lens, White housing
SKU
O4VT1M
Model No
O4VT1M
$165.48
Product Highlights
- Captures up to 4MP @ 30fps
- H.265/H.264 compression supported
- Built-in standard PoE (IEEE 802.3af)
- True Day/Night operation (IR cut filter)
- IR range: Up to 167™ (depending on scene reflection)
Speak to an expert
The O4VT1M from Speco is a 4 megapixel outdoor IP turret dome camera with analytics, 2.8-12mm lens, white housing. This camera offers impressive video quality, built-in analytics, and weather-resistant durability, making it perfect for various outdoor surveillance applications.
Speco O4VT1M Camera Features
- Captures: Up to 4MP @ 30fps for crystal-clear video and enhanced detail in any lighting conditions.
- Video Compression: H.265/H.264 compression supported, ensuring efficient storage and bandwidth usage without compromising quality.
- Power Supply: Built-in standard PoE (IEEE 802.3af) allows for easy installation and simplifies wiring by using a single cable for both power and data.
- Day/Night Functionality: True Day/Night operation with an IR cut filter provides reliable performance day and night.
- IR Range: Infrared range of up to 167’ depending on scene reflection for improved low-light visibility.
- Digital WDR: Digital Wide Dynamic Range enhances image details in challenging light conditions.
- Storage: Micro SD card slot supports up to 128GB (card not included) for local video storage.
- Audio: 1ch Built-in Microphone captures audio for a complete surveillance experience.
- Compliance: ONVIF Profile T Compliant, ensuring compatibility with various security systems and software.
- Smart Analytics: Features like line crossing, object detection, region intrusion, and video blurring detection for proactive security monitoring.
- Weather Resistance: IP67 Weather Resistance rating ensures durability in outdoor conditions.
Speco O4VT1M Detailed Camera Specifications
| Camera Type | Outdoor IP Turret Dome |
| Megapixels | 4 Megapixels |
| Lens | 2.8-12mm |
| Video Frame Rate | Up to 30fps |
| Compression Format | H.265/H.264 |
| IR Cut Filter | True Day/Night |
| IR Range | Up to 167’ |
| Wide Dynamic Range | Digital WDR |
| Storage | Micro SD up to 128GB |
| Built-in Microphone | 1 Channel |
| ONVIF Compliance | Profile T Compliant |
| Weather Resistance | IP67 |
SKU  | O4VT1M |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 4.38" (Dia.) x 3.92" (H) |
| Electronic Shutter | 1/25 - 1/100000 sec |
| Image Device | Progressive scan 1/2.7" CMOS, 4MP |
| Minimum Scene Illumination | 1/25 - 1/100000 sec |
| Operating Humidity | Less than 95 % (non-condensing) |
| Operating Temperature | -40°F ~ 140°F |
| Power Consumption | < 9W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 94° ~ 35.7°(H), 62.2° ~ 20.5° (V), 101.7° ~ 40.6° (D) |
| Rotation Angle | 0°-360° |
| IR Distance | 50m/167ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
