Speco O4FD1M 4 Megapixel Network IR Outdoor Dome Camera with 2.8-12mm Lens
SKU
O4FD1M
Speco Model O4FD1M
Speco O4FD1M 4 Megapixel Network IR Outdoor Dome Camera with 2.8-12mm Lens
- 4MP
- 2.8–12mm
- Night Vision
- Outdoor
Free shipping over $450
Model No
O4FD1M
$441.64
Product Highlights
- Flexible Intensifier® Technology to fit any lighting application
- Captures up to 4MP @ 30fps real time
- Captures color in extreme low light conditions and monochrome in absolute darkness.
- IR range: up to 164™ (depending on scene reflection)
- True WDR operation

Speak to an expert
Overview

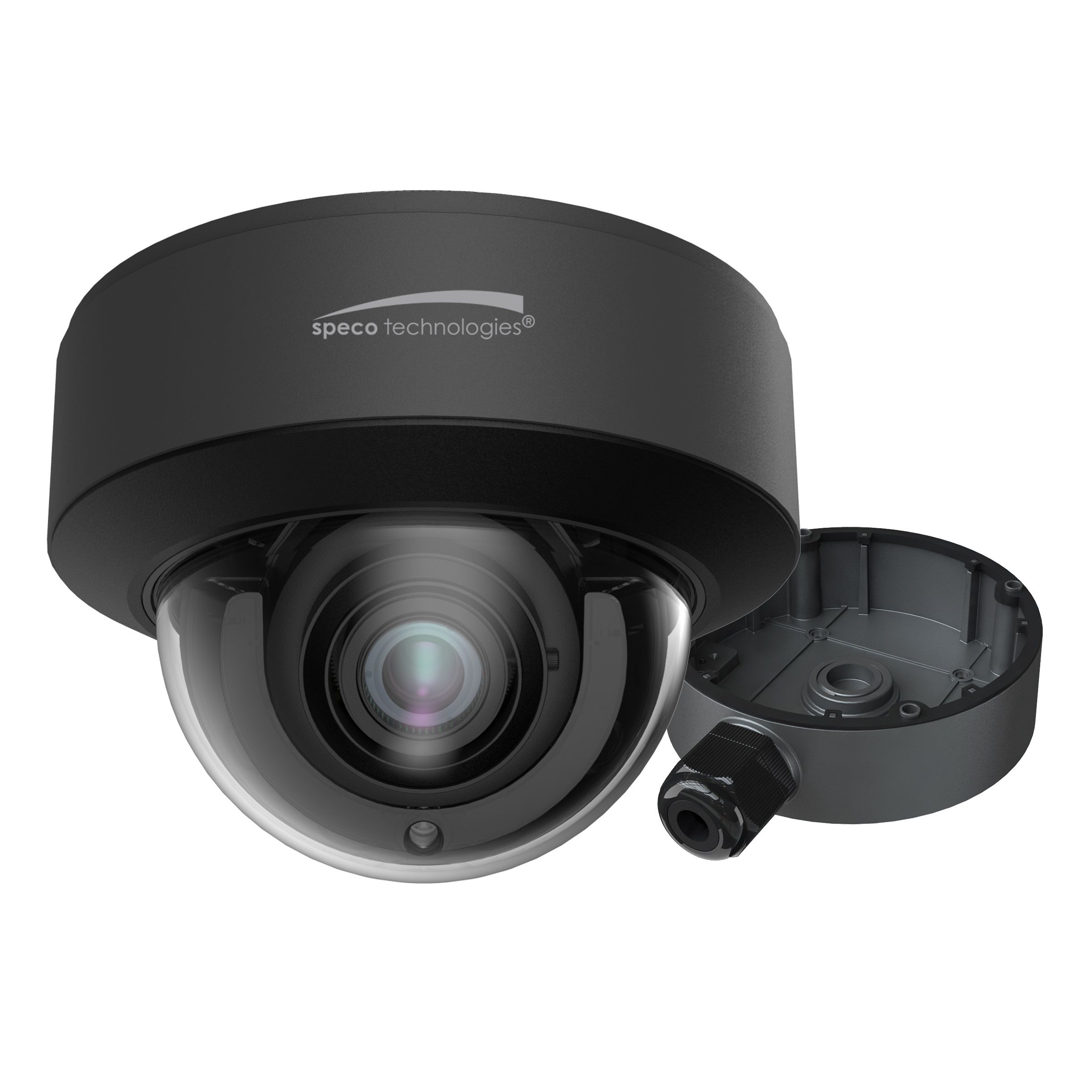

The O4FD1M from Speco is a 4 megapixel Flexible Intensifier IP Dome Camera with Advanced Analytics and a versatile 2.8-12mm motorized lens, designed for superior performance in various lighting conditions. Its durable construction and advanced technology make it ideal for any outdoor surveillance application, ensuring you never miss a detail.
Speco O4FD1M Camera Features
- Flexible Intensifier Technology: Adaptable to any lighting application, providing optimal image quality in both bright and low-light conditions.
- 4MP @ 30fps Capture: Ensures smooth and clear video recording, allowing for detailed monitoring and analysis.
- Extreme Low Light Performance: Captures color in low light and monochrome in total darkness, enhancing visibility around the clock.
- IR Range: Up to 164’ depending on scene reflection, offering extensive coverage even in total darkness.
- True WDR Operation: Balances lighting conditions for improved image quality in scenes with both bright and dark areas.
- Micro SD Card Slot: Provides local storage options for recorded footage (card not included), enhancing flexibility.
- ONVIF Profile T Compliance: Ensures compatibility with a wide range of network video products, simplifying integration.
- IP67 Weather Resistance: Protects against water and dust, ensuring reliable operation in harsh outdoor environments.
- IK10 Vandal Resistance: Withstands impact and physical attacks, making it suitable for high-risk areas.
- Built-in Standard PoE: Easily powered through the network cable (IEEE 802.3af), simplifying installation.
- Advanced Analytics: Features such as line crossing with counting, intrusion detection, and object detection enhance security monitoring capabilities.
- Junction Box Included: Facilitates easy and secure mounting, ensuring a clean and professional installation.
Speco O4FD1M Detailed Specifications
| Resolution | 4 Megapixels |
| Lens Type | 2.8-12mm Motorized Lens |
| Frame Rate | 30fps |
| Low Light Capability | Color in low light, monochrome in darkness |
| IR Distance | Up to 164 feet |
| Weather Rating | IP67 |
| Vandal Resistance | IK10 |
| PoE Standard | IEEE 802.3af |
| Storage Support | Micro SD Card Slot (not included) |
| Video Analytics | Line crossing, intrusion detection, face/person/vehicle detection |
| Compatibility | ONVIF Profile T |
| Additional Accessories | Junction box included |
Built-in Functions
- Audio
- Auto Gain Control
- Day/Night
- Digital Noise Reduction
- Automatic White Balance
- Back Light Compensation
- Flickerless
- Motion Detection Tracking
- Privacy Masking
- Wide Dynamic Range
- Mirror
- ONVIF
Specifications
| SKU | O4FD1M |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.55” (φ) x 3.94” (H) |
| Electronic Shutter | 1s ~ 1/100000s |
| Image Device | Progressive scan 1/1.8”CMOS |
| Minimum Scene Illumination | 0.0014 [email protected], AGC ON; 0 lux with IR |
| Operating Humidity | Less than 95% (non-condensing) |
| Operating Temperature | -40°F - 140°F |
| Power Consumption | 9.0W (max |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal: 109° ~ 46°; Vertical: 74.5° ~ 27.1°; Diagonal: 116° ~ 52.4° |
| Automatic White Balance | Auto, Indoor, Outdoor, Manual |
| IR Distance | 49m/164ft |
Fits with these accessories
Mounts and add-ons made for this model.
- Speco PMT1G Pole Mount for Dark Grey Speco Blue Models $47.91
- Speco CMT1G Corner Mount for Dark Grey Speco Blue Cameras $39.78
- TP-Link POE150S PoE Injector $15.99
- Speco PMT1 Pole Mount for O8B6M $41.08
- Speco POEINJ 802.3af/at PoE injector $54.00
- Speco WMT1G Wall Mount Bracket for Speco Blue Large Dome and Turret Cameras, Dark Gray $39.78
- Speco PSW5 12VDC Plug-in Power Supply, 1000mA $22.82
