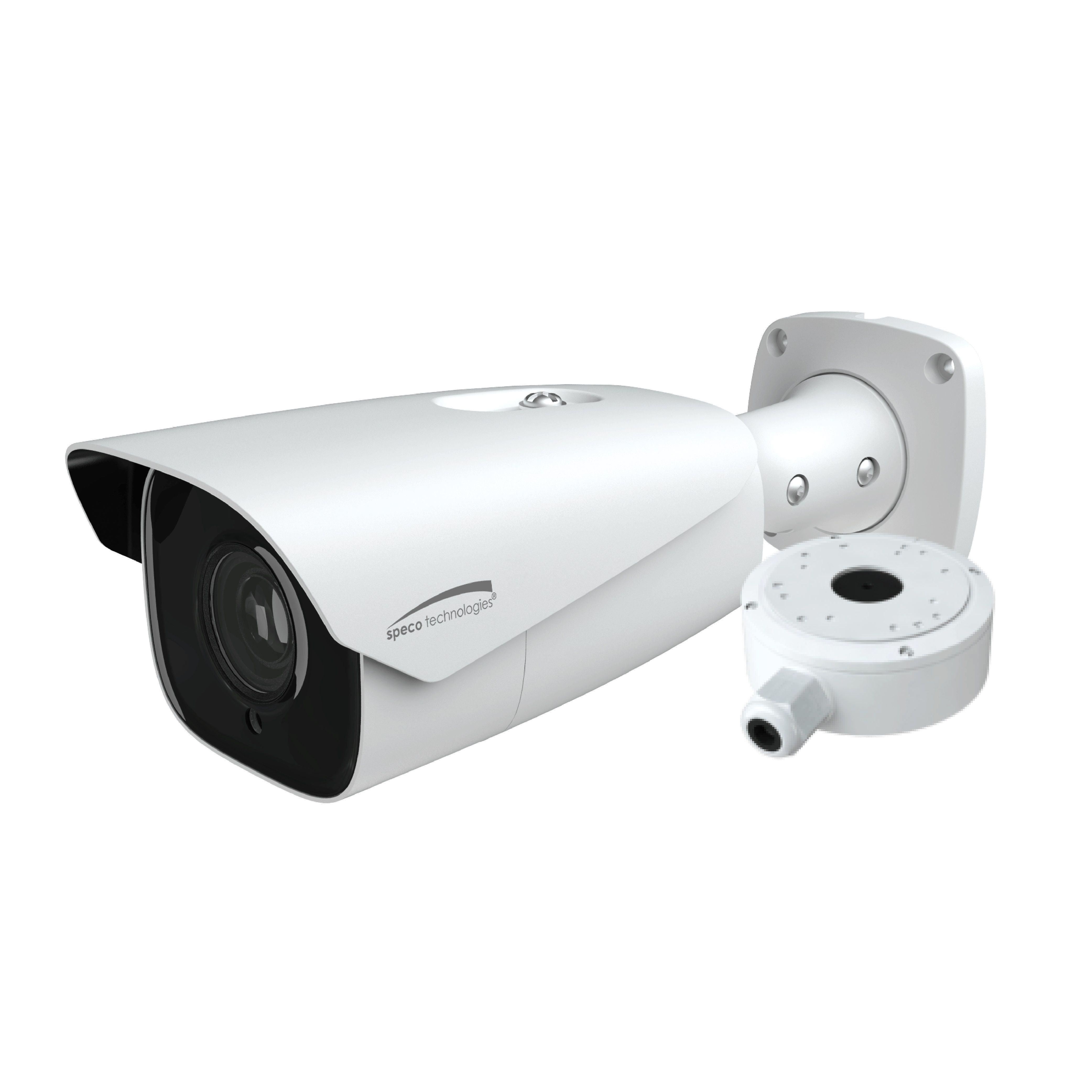

Speco O4B7M 4 Megapixel IP Bullet Camera, 2.8-12mm Lens, White Housing
SKU
O4B7M
Model No
O4B7M
$277.00
Product Highlights
- Supports up to 4MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- H.265/H.264/MJPEG compression supported
- True Day/Night operation (IR cut filter)
- Adaptive IR LEDs reduce IR saturation
Speak to an expert
The O4B7M from Speco is a 4 megapixel IP bullet camera with advanced analytics, 2.8-12mm lens, and white housing, designed to deliver superior video quality and durability in various environments.
Speco O4B7M Camera Features
- Supports up to 4MP @ 30fps: Ensures sharp, high-quality imagery for detailed surveillance.
- Built-in standard PoE (IEEE 802.3af): Simplifies installation by allowing power and data to be transmitted over a single cable.
- H.265/H.264/MJPEG compression supported: Provides flexible options for storage efficiency and bandwidth management.
- True Day/Night operation (IR cut filter): Adapts to varying light conditions for reliable performance day or night.
- Adaptive IR LEDs reduce IR saturation: Delivers clear night vision without overexposure in low-light settings.
- IR range: Up to 230’ max (depending on scene reflection): Extends surveillance capability in the dark.
- Micro SD slot up to 128GB (card not included): Offers local storage options for easy retrieval of footage.
- True WDR (wide dynamic range) operation: Enhances image quality in high-contrast lighting environments.
- IP67 compliant, weather resistant: Protects against dust and water, making it ideal for outdoor use.
- Junction box included: Facilitates easier mounting and wiring.
- Conformant with ONVIF Profile T: Ensures compatibility with a wide range of network video products.
Detailed Specifications for Speco O4B7M
| Camera Resolution | 4 Megapixels |
| Lens | 2.8-12mm |
| Frame Rate | 30 fps |
| Video Compression | H.265/H.264/MJPEG |
| IR Range | Up to 230’ |
| Video Storage | Micro SD up to 128GB (not included) |
| Weather Resistance | IP67 |
| Standard Compliance | IEEE 802.3af, ONVIF Profile T |
| Special Features | True Day/Night, Adaptive IR, True WDR |
SKU  | O4B7M |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Corner, Pole |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 3.95" (W) x 11.0" (D) x 3.5" (H) |
| Electronic Shutter | 1/30 - 1/100000 sec. |
| Image Device | Progressive scan 1/3" CMOS, 4MP |
| Minimum Scene Illumination | 0.005 lux @ F1.4, AGC ON; 0 lux with IR |
| Operating Humidity | Less than 95 % (non-condensing) |
| Operating Temperature | -40°F ~ 140°F |
| Power Consumption | < 9.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| Video Output | BNC x 1 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 94.2° - 29.8° |
| Automatic White Balance | Auto, Indoor, Outdoor, Manual |
| IR Distance | 70m/230ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
