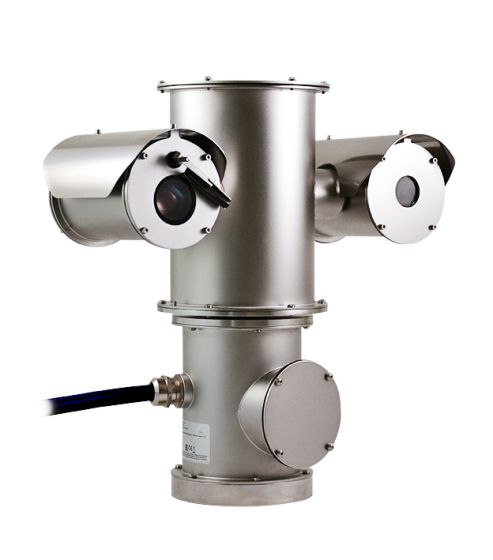

Pelco NXPTZT32EW0Z00CH 2 Megapixel Dual Vision Thermal Network PTZ Camera with 30x Lens, 120vAC, 30Hz Frequency
SKU
NXPTZT32EW0Z00CH
Model No
NXPTZT32EW0Z00CH
$25,917.30
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Entirely made from AISI 316L electropolished stainless steel
- Maximum resistance in corrosive environments
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 MP Dual Vision Thermal Network PTZ Camera offers advanced surveillance capabilities with its unique dual sensor system, featuring both a Full HD color Day/Night camera and a LWIR thermal camera. Engineered for high-performance in harsh environments, this camera is constructed from rust-resistant stainless steel, ensuring durability and reliability in critical security applications, even in complete darkness or low visibility conditions.
Pelco 2 MP Dual Vision Thermal Network PTZ Camera - Key Features
- Dual Sensor System: Combines thermal and color imaging for enhanced detection capabilities, providing versatile surveillance options.
- Corrosion Resistance: AISI 316L stainless steel construction ensures long-lasting performance in corrosive environments like industrial and marine settings.
- Integrated SFP Slot: Allows for direct fiber optic connection, facilitating improved data transmission over long distances.
- Enhanced Night Vision: Optical Day/Night function enables clear imaging in low-light situations, enhancing overall security coverage.
- Pan-Tilt-Zoom Technology: Offers comprehensive area surveillance with smooth and precise controls to follow moving objects.
Pelco 2 MP Dual Vision Thermal Network PTZ Camera - Detailed Specifications
| Specification | Details |
|---|---|
| Camera Type | 2 MP Dual Vision Thermal Network PTZ |
| Construction Material | AISI 316L Electropolished Stainless Steel |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Image Sensor | Full HD Color Camera & LWIR Thermal Camera |
| Video Compression | H.265, H.264 |
| Field of View | Horizontal: 90° (thermal); 30° (color) |
| Optical Zoom | 20x optical zoom lens |
| Audio Support | Two-way audio capability |
SKU  | NXPTZT32EW0Z00CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, JPEG |
| Durability | Weather Resistant |
| Voltage | 120vAC |
| Automatic Gain Control (AGC) | 0dB up to 50.0dB (Auto, Manual) |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Image Pixels-Effective | 2.13 Megapixels |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +65°C (149°F) |
| Power Consumption | 120W max, 30W, P&T static, heating switched off |
| Privacy Zone | maximum 8 settable masks |
| Protocols | ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service, TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, DSCP, IGMP (Multicast), SOAP, DNS, RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | 360°, continuous rotation |
| Back Light Compensation | On/Off |
| Automatic White Balance | Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
