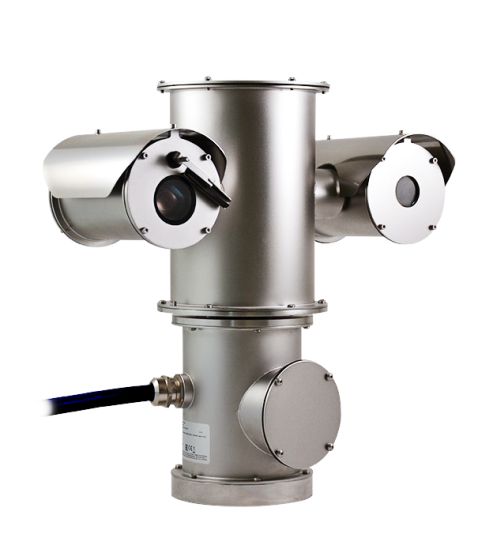

Pelco NXPTZT32AW0Z00CH 2 Megapixel Dual Vision Thermal Network PTZ Camera with 30x Lens, 120vAC, 30Hz Frequency

SKU
NXPTZT32AW0Z00CH
Model No
NXPTZT32AW0Z00CH
$18,759.01
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • PTZ network camera with dual sensor, thermal and Full HD
  • Entirely made from AISI 316L electropolished stainless steel
  • Maximum resistance in corrosive environments
  • Junction box with integrated SFP slot to allow fiber optic connection

The Pelco 2 MP Dual Vision Thermal Network PTZ Camera provides exceptional security surveillance with its innovative dual sensor technology that combines a color Day/Night camera and a LWIR thermal camera. Built from rugged AISI 316L stainless steel, it is designed for harsh environments, ensuring reliability in total darkness and low visibility. This camera not only offers high image quality but also guarantees durability and minimal maintenance, making it the ideal choice for industrial and marine applications.

Pelco 2 MP Dual Vision Thermal Network PTZ Camera - Key Features

    Durability: Crafted from AISI 316L stainless steel, this camera is resistant to rust and corrosion, ensuring long-lasting performance in corrosive environments.
    Dual Vision Technology: Combines thermal and full HD color imaging, allowing for effective monitoring in both daylight and nighttime conditions.
    Enhanced Visibility: Equipped with integrated IR illumination, it enables clear visibility up to 200 meters in the dark.
    PTZ Capability: Provides the ability to pan, tilt, and zoom, offering extensive coverage of large areas while allowing close-up detail observation.
    Weather Resistant: Designed to withstand various weather conditions, making it suitable for both indoor and outdoor use.
    Low Latency: Features smooth pan, tilt, and zoom controls to ensure efficient tracking of moving objects.

Detailed Specifications of Pelco 2 MP Dual Vision Thermal Network PTZ Camera

Specification Details
Camera Type Dual Vision Network PTZ Camera
Construction Material AISI 316L Electropolished Stainless Steel
Sensor Type Thermal and Full HD Color
IR Illumination Range Up to 200 meters
Operating Environment Indoor and Outdoor
Resistance High resistance to corrosive environments
Control Type PTZ Controls with Low Latency
Fiber Optic Compatibility Integrated SFP Slot
SKU  NXPTZT32AW0Z00CH
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG, JPEG
Durability    Weather Resistant
Voltage  120vAC
Automatic Gain Control (AGC)    0dB up to 50.0dB (Auto, Manual)
Dimensions (W x H)  54x31x49cm (21x12x19in) -
Electronic Shutter    1/1s up to 1/10000s (Auto, Manual)
Image Device    1/2.8" Exmorâ„¢ R CMOS sensor
Image Pixels-Effective2.13 Megapixels
Operating Humidity    5% up to 95%
Operating Temperature    -40°C (-40°F) up to +65°C (149°F)
Power Consumption  120W max, 30W, P&T static, heating switched off
Privacy Zone    maximum 8 settable masks
Protocols  ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service, TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, DSCP, IGMP (Multicast), SOAP, DNS, RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Weatherproof    IP66/IP67/IP68/IP69
Digital Noise Reduction    (2D, 3D): Off, On (from level 1 up to level 5)
Angle of View    Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Rotation Angle360°, continuous rotation
Back Light Compensation  On/Off
Automatic White Balance    Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
