Pelco NXPTZT12DW0Z00C 2 Megapixel Dual Vision Thermal Network PTZ Camera with 30x Lens, 230vAC, 7.5Hz Frequency

SKU
NXPTZT12DW0Z00C
Model No
NXPTZT12DW0Z00C
$25,570.49
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • PTZ network camera with dual sensor, thermal and Full HD
  • Entirely made from AISI 316L electropolished stainless steel
  • Maximum resistance in corrosive environments
  • Junction box with integrated SFP slot to allow fiber optic connection

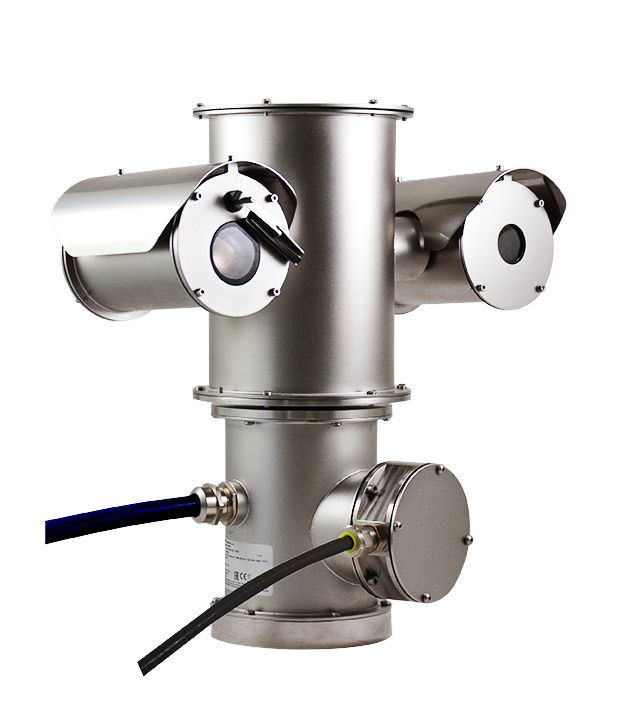

The Pelco 2 MP Dual Vision Thermal Network PTZ Camera is engineered for high-performance security applications in demanding environments. This advanced camera combines a color Day/Night camera with LWIR thermal capabilities, making it ideal for monitoring areas under low visibility conditions. Constructed from corrosion-resistant AISI 316L stainless steel, this PTZ camera ensures durability and reliability, providing optimal performance without the need for maintenance.

Pelco 2 MP Dual Vision Camera Key Features

  • Dual Sensor Technology: Combines color and thermal imaging to enhance visibility in various lighting conditions, providing comprehensive surveillance capabilities.
  • Corrosion-resistant Construction: Made from AISI 316L stainless steel, ensuring durability in harsh industrial and marine environments.
  • High Performance in Low Visibility: Ideal for monitoring in total darkness or foggy conditions, allowing security personnel to detect and assess potential threats effectively.
  • Maintenance-free Design: Precision engineering and robust materials minimize the need for upkeep, allowing for more dependable long-term operation.
  • Integrated Fiber Optic Connection: Junction box with an SFP slot facilitates easy connection to fiber networks for enhanced data transmission.

Pelco 2 MP Dual Vision Camera Specifications

SpecificationDetails
Camera TypeDual Vision PTZ Camera
Resolution2 MP
Construction MaterialAISI 316L Stainless Steel
Thermal ImagingAvailable with LWIR function
Network ConnectivityIntegrated SFP slot for fiber optic
ApplicationsSuitable for industrial, marine, and outdoor surveillance
SKU  NXPTZT12DW0Z00C
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG, JPEG
Durability    Weather Resistant
Voltage  230vAC
Automatic Gain Control (AGC)    0dB up to 50.0dB (Auto, Manual)
Dimensions (W x H)  54x31x49cm (21x12x19in) -
Electronic Shutter    1/1s up to 1/10000s (Auto, Manual)
Image Device    1/2.8" Exmorâ„¢ R CMOS sensor
Image Pixels-Effective2.13 Megapixels
Operating Humidity    5% up to 95%
Operating Temperature    -40°C (-40°F) up to +65°C (149°F)
Power Consumption  120W max, 30W, P&T static, heating switched off
Privacy Zone    maximum 8 settable masks
Protocols  ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service, TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, DSCP, IGMP (Multicast), SOAP, DNS, RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Weatherproof    IP66/IP67/IP68/IP69
Digital Noise Reduction    (2D, 3D): Off, On (from level 1 up to level 5)
Angle of View    Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Rotation Angle360°, continuous rotation
Back Light Compensation  On/Off
Automatic White Balance    Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
