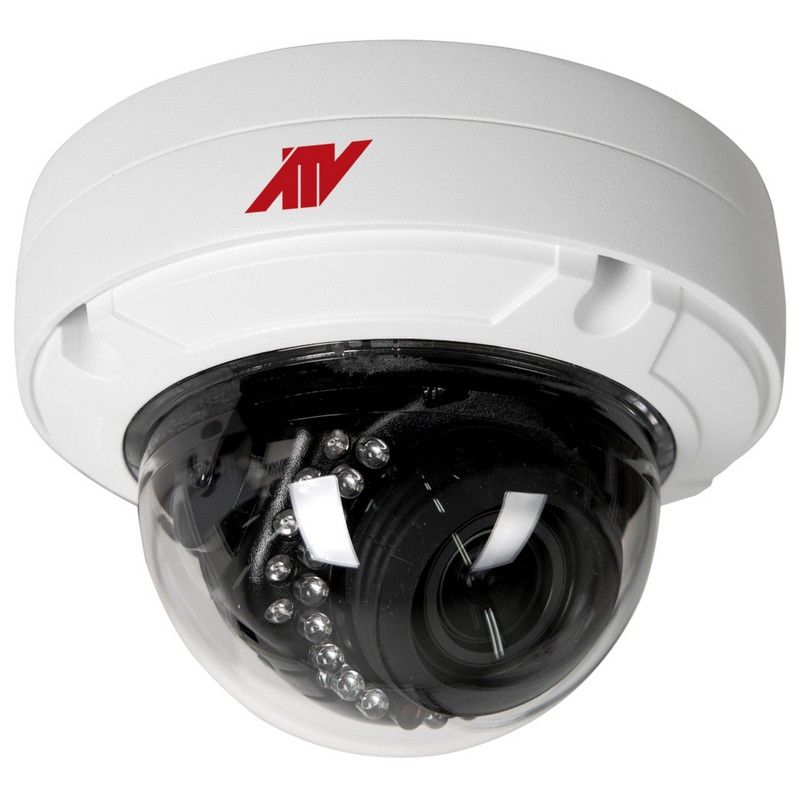

ATV NVW4K311M 8 Megapixel 4K Outdoor Network IR Dome Camera, 3.6-11mm Lens
SKU
NVW4K311M
Model No
NVW4K311M
$844.11
Product Highlights
- 3.6 ~11mm Motorized Vari-focal Lens
- Exceptional 4K (8MP), 3840 x 2160 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 98ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
Speak to an expert
The NVW4K311M from ATV is an 8 Megapixel 4K Outdoor Network IR Dome Camera featuring a versatile 3.6-11mm lens, designed to deliver top-notch surveillance performance with exceptional image clarity and advanced functionality.
ATV NVW4K311M Camera Features
- Motorized Vari-focal Lens: 3.6-11mm lens provides flexibility in zooming, allowing precise adjustments for capturing detailed images at varying distances.
- Exceptional Resolution: 4K (8MP) video resolution at 3840 x 2160 ensures crystal clear images, enhancing surveillance effectiveness.
- Powerful IR LED Lights: Capable of 0 Lux operation up to 98ft, this camera excels in low-light conditions, guaranteeing reliable nighttime surveillance.
- Efficient Video Compression: Utilizes H.265 compression technology, significantly reducing bandwidth and storage needs while maintaining image quality.
- Comprehensive Remote Management: Comes with ATVision IP Remote Management Client software for Windows and Mac, plus mobile apps for iOS and Android, enabling easy access and control from anywhere.
Detailed Specifications for ATV NVW4K311M
| Image Sensor | 8 Megapixel (4K) CMOS |
| Lens Type | Motorized Vari-focal, 3.6-11mm |
| Max Resolution | 3840 x 2160 |
| IR Distance | Up to 98ft (0 Lux) |
| Video Compression | H.265 |
| Remote Management | ATVision IP Client Software, Mobile Apps for iOS/Android |
SKU  | NVW4K311M |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ATV |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.7(Ø) x 3.86in (144(Ø) x 98mm) |
| Electronic Shutter | Auto (1/10,000~1sec), Manual |
| Image Device | 1/2.5” Sony Starvis CMOS Sensor |
| IR LEDs | 28 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color : 0.03Lux / BW : 0Lux @F1.5 (IR LED On) |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -4~122°F (-20~+50ºC) |
| Power Consumption | PoE (IEEE802.3af )/ 12VDC: 9.6W |
| Privacy Zone | 4 Zones |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2DNR, 3DNR |
| Angle of View | H: 87°~38° |
| IR Distance | Indoor: 29m/98ft, Outdoor: 24m/80ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
