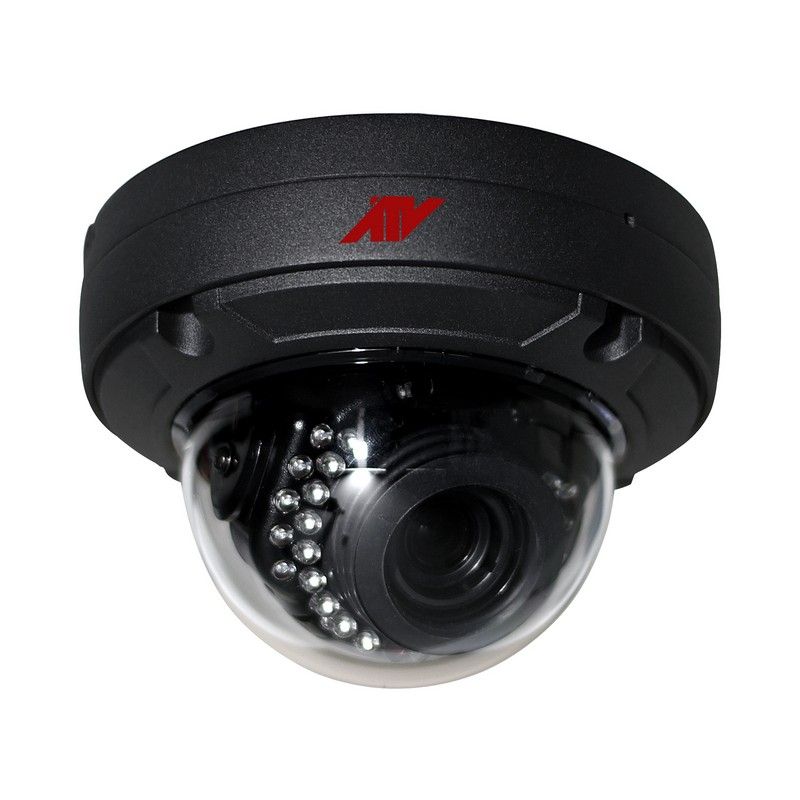

ATV NVW429B 4 Megapixel Outdoor Network IR Dome Camera, 2.9mm Lens, Black
SKU
NVW429B
Model No
NVW429B
$254.00
Product Highlights
- 2.9mm Fixed Lens
- Exceptional 4MP, 2592 x 1520 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
Speak to an expert
The NVW429B from ATV is a 4 Megapixel Outdoor Network IR Dome Camera, 2.9mm Lens, Black, designed for high-resolution surveillance in outdoor settings. It offers exceptional image clarity, advanced remote management capabilities, and efficient compression technology, making it an ideal choice for security applications.
ATV NVW429B Camera Features
- 2.9mm Fixed Lens: Provides a wide field of view, ensuring comprehensive coverage of the monitored area.
- Exceptional 4MP, 2592 x 1520 Resolution: Delivers high-quality video images, allowing for detailed monitoring and identification of individuals even at a distance.
- Powerful IR LED Lights: Enable 0 Lux operation up to 82ft, ensuring clear visibility in complete darkness for 24/7 surveillance.
- Super-Efficient H.265 Video Compression: Drastically reduces bandwidth and storage requirements, allowing for longer recording times and lower data usage.
- ATVision IP Remote Management: Includes client software for Windows and Mac, plus mobile applications for Apple and Android, making remote monitoring convenient and accessible.
Detailed Camera Specifications for ATV NVW429B
| Camera Type | Outdoor IR Dome Camera |
| Resolution | 4 Megapixels (2592 x 1520) |
| Lens Type | Fixed 2.9mm Lens |
| IR Range | Up to 82ft |
| Video Compression | H.265 |
| Operating Systems Supported | Windows, Mac, iOS, Android |
SKU  | NVW429B |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ATV |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.7(Ø) x 3.86in (144(Ø) x 98mm) |
| Electronic Shutter | Auto (1/10,000~1sec), Manual |
| Image Device | 1/3” CMOS Sensor |
| IR LEDs | 28 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color : 0.23Lux / BW : 0Lux @ F2.0, 50IRE |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -4~122°F (-20~+50ºC) |
| Power Consumption | PoE (IEEE802.3af )/ 12VDC: 7.3W |
| Privacy Zone | 8 Zones |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | H: 81° |
| IR Distance | Indoor: 24m/82ft, Outdoor: 19m/65ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
