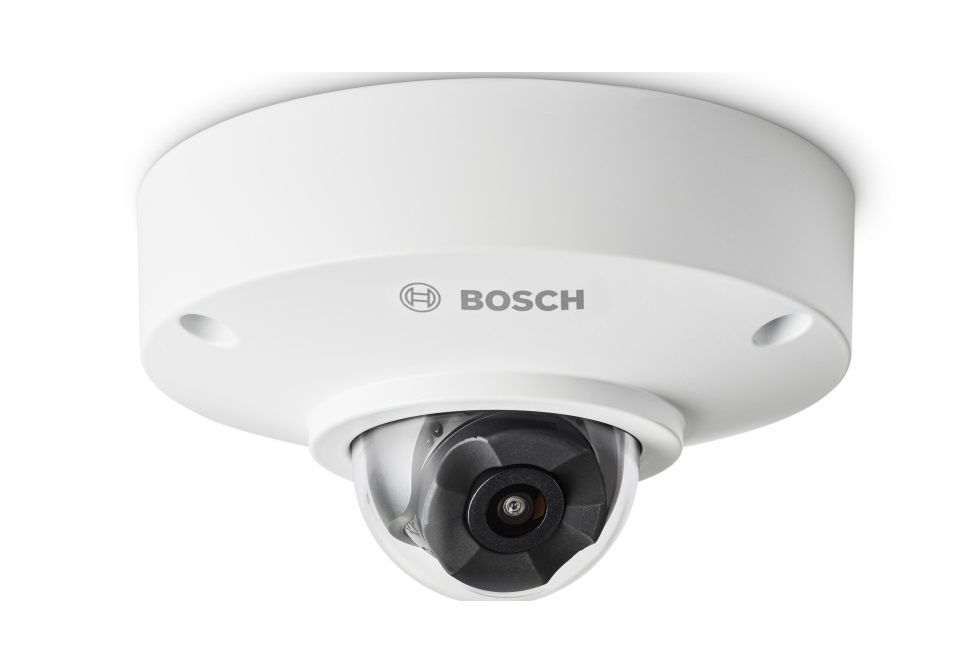

IQsight by Bosch NUV-3702-F06 2 Megapixel Network Indoor Dome Camera with 6mm Lens
SKU
NUV-3702-F06
Model No
NUV-3702-F06
$332.00
Product Highlights
- Compact design for discreet indoor use with quick and easy installation and set-up
- 1080p HD resolution
- IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Speak to an expert
The Bosch NUV-3702-F06 2 Megapixel Network Indoor Dome Camera is designed for discreet surveillance without compromising on quality. With features like 1080p HD resolution, advanced IVA Pro Buildings analytics, and a built-in Secure Element for enhanced data security, this camera provides reliable performance and peace of mind for your indoor surveillance needs.
Bosch NUV-3702-F06 Camera Features
- Compact Design: Allows for discreet indoor use, making installation quick and easy while blending seamlessly with the environment.
- 1080p HD Resolution: Delivers crystal-clear images, ensuring all details are captured, which is essential for effective monitoring.
- IVA Pro Buildings: Utilizes advanced deep-learning technology for accurate detection of persons and vehicles, enhancing security and monitoring efficiency.
- High Dynamic Range (HDR): Captures every detail in both bright and dark areas, providing clear images in various lighting conditions.
- Built-in Secure Element: Features a Trusted Platform Module (TPM) to ensure maximum security for device access and data transport, safeguarding sensitive information.
Bosch NUV-3702-F06 Specifications
| Camera Type | Indoor Dome |
| Megapixels | 2 Megapixel |
| Lens | 6mm |
| Resolution | 1080p HD |
| Video Analytics | IVA Pro Buildings |
| Dynamic Range | High Dynamic Range (HDR) |
| Security Features | Built-in Secure Element with TPM |
| Mounting Options | Unique corner and plenum-rated ceiling mounts; compatible with Bosch modular mounts |
SKU  | NUV-3702-F06 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 110 mm x 66 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/15,000 max; Default shutter; 1/25 [30] min |
| Image Device | 1/2.8 inch CMOS |
| Image Pixels-Effective | 1,920 x 1,080 |
| Operating Humidity | 5% – 93% |
| Operating Temperature | 0 °C – 40 °C |
| Power Consumption | 3.2 W – 4.5 W |
| Privacy Zone | 8 |
| S/N Ratio | >55 dB |
| Angle of View | Horizontal field of view (º) 58.5°, Vertical field of view (º) 31.3° |
| Automatic White Balance | 2,000 K – 10,000 K |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
