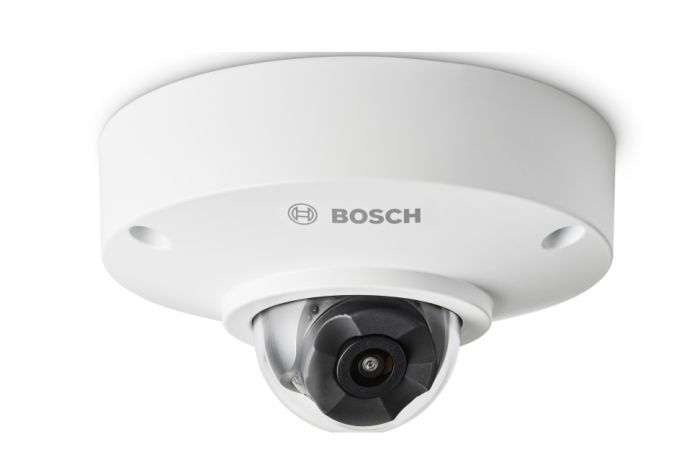

IQsight by Bosch NUE-3703-F06 5 Megapixel Network Outdoor Dome Camera with 6mm Lens
SKU
NUE-3703-F06
Model No
NUE-3703-F06
$434.33
Product Highlights
- Compact and robust design for discreet use with quick and easy installation and set-up
- 5 MP for highly detailed images
- IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Speak to an expert
The Bosch NUE-3703-F06 FLEXIDOME micro 3100i outdoor dome camera is engineered for high-quality surveillance, offering a compact, discreet design combined with advanced features for 24/7 monitoring. With its robust construction and deep-learning analytics, this camera ensures reliable performance in various environmental conditions, making it an ideal choice for both outdoor and vandal-prone indoor applications.
Bosch NUE-3703-F06 Camera Features
- Compact and Robust Design: The camera's discreet style makes it suitable for inconspicuous installations without sacrificing performance.
- 5 Megapixels: Capture highly detailed images for precise monitoring and identification.
- IVA Pro Buildings: Advanced deep-learning analytics provide reliable detection of persons and vehicles, enhancing security measures.
- High Dynamic Range (HDR): Ensures clarity in both bright and dark areas of the scene, allowing for comprehensive coverage.
- Built-in Secure Element: Features a Trusted Platform Module (TPM) for top-notch security in device access and data protection.
Detailed Camera Specifications
| Camera Model | Bosch NUE-3703-F06 FLEXIDOME micro 3100i |
| Resolution | 5 Megapixels |
| Lens | 6mm |
| Analytics | IVA Pro Buildings |
| IP Rating | IP66 |
| Impact Rating | IK10 |
| Mounting Options | Corner and L-shape wall mounts available |
| Security Features | Built-in Secure Element with TPM |
SKU  | NUE-3703-F06 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 123 mm x 69.2 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/15,000 max; Default shutter; 1/25 [30] min |
| Image Device | 1/2.7 inch CMOS |
| Image Pixels-Effective | 2,592 x 1,944 |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -30 °C – 50 °C |
| Power Consumption | 3.2 W – 4.5 W |
| Privacy Zone | 8 |
| S/N Ratio | >55 dB |
| Weatherproof | IP66 |
| Angle of View | Horizontal field of view (º) 56.1°, Vertical field of view (º) 39.2° |
| Automatic White Balance | 2,000 K – 10,000 K |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
