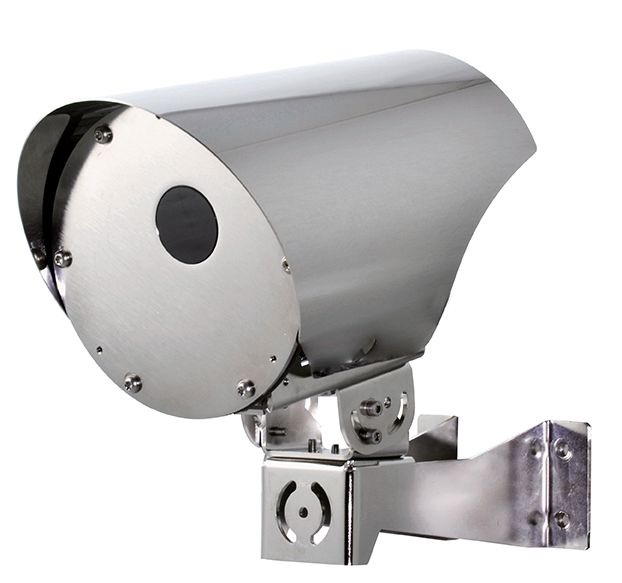

Pelco NTX2Z0R00A 336 X 256 Network Outdoor Thermal Camera with 19mm Lens
SKU
NTX2Z0R00A
Model No
NTX2Z0R00A
$7,944.05
Product Highlights
- Made of electropolished AISI 316L stainless steel
- Radiometric analysis
- Complies with ONVIF, Profile Q, Profile S and Profile T
- Digitally signed firmware
- Complies with ONVIF Security Service specifications
Speak to an expert
336 X 256 Network Outdoor Thermal Camera
- The NTX is an IP68 stainless steel thermal camera, developed to provide an efficient and preventative surveillance system in the most critical environmentalconditions. The NTX thermal camera offers temperature detection based on the 4 central pixels of the image, and with the advanced version, the temperature of a specific object can be measured at any point in the image by means of defining a specific area. As well as this, the radiometric functions offer the option to set a temperature limit,beyond which an alarm will be raised.
- These functions are necessary where fire prevention is required or in applications such as monitoring industrial processes or critical equipment, where the ability to identify something quickly and accurately, thus preventing problems or failures and keeping intervention times to a minimum, is essential. The NTX can export all the data necessary for a centralised management of video feeds, data and alarms, and make it available to VMS via the ONVIF Profile T, Profile S and Profile Q communication protocols.
- The NTX camera is made entirely from electropolished AISI316L stainless steel and stands out thanks to its compact design and light weight. This, and the fact that it can be connected quickly, makes installation and maintenance easier. The modular support for wall, ceiling or parapet is supplied as standard.
- The NTX has obtained Lloyd's Register Marine Type Approval certification for the maritime and naval sector and complies with the standard for railway applications. The fact that the NTX is extremely sturdy and of high quality means it is ideal for the most demanding applications in the marine and industrial sectors,in critical infrastructures, power plants and transport sector, including railways and motorway tunnels.
Camera Functions
Auto Gain Control
Digital Zoom
Motion Detection
Onvif
Weather Resistant
Camera Features
| Made of electropolished AISI 316L stainless steel | 1 input for remote reset and 1 relay output |
| Radiometric analysis | Power supply: 24Vdc/24Vac, PoE+ |
| Complies with ONVIF, Profile Q, Profile S and Profile T | Operating temperature: from -40°C (-40°F) up to +65°C (149°F) |
| Digitally signed firmware | Quick connectors |
| Complies with ONVIF Security Service specifications | Built-in modular support |
| Image Device: Uncooled VOx microbolometer |
Sarix Thermal Imaging Fixed Camera
Secure mission-critical environments with a thermal imaging camera that won't let you miss anything, even in the dark. See it in action now!
Introducing the Sarix Thermal Imaging Fixed Camera
With the Sarix TI camera, you have access to an intelligent surveillance solution that provides a wide range of industries with a compact package and a powerful approach for deterring and minimizing potential security breaches. Watch to see it in action now.
Additional Pelco Products
SKU  | NTX2Z0R00A |
|---|---|
| Features | Auto Gain Control, Digital Zoom, Motion Detection Tracking, ONVIF, Weather Resistant |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 336 X 256 |
| Lens Type | Fixed |
| Lens Size | 19mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, JPEG |
| Durability | Weather Resistant |
| Voltage | PoE+, 24vDC, 24vAC |
| Dimensions (W x H) | 36x35x23cm (14x14x9in) - |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +65°C (149°F) |
| Power Consumption | 21W |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Angle of View | 17° |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
