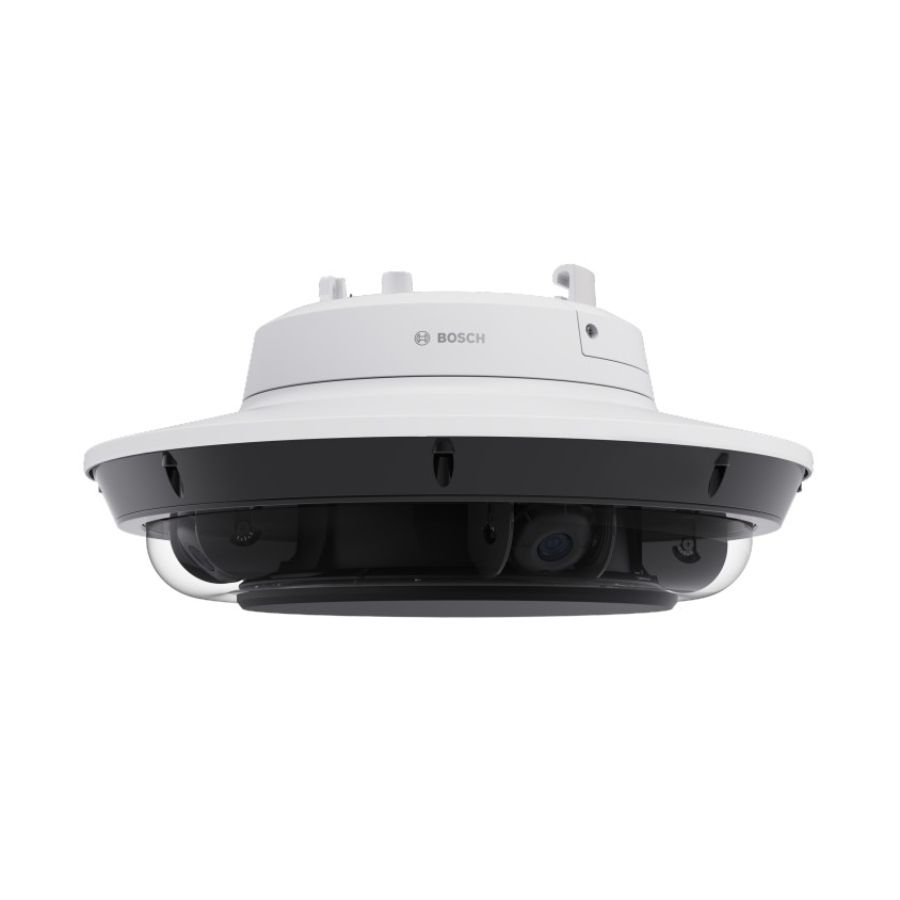

IQsight by Bosch NMM-7703-A 4 x 5 Megapixel Network IP Multi+ Dome Camera with 3.2-8.1mm Lens

SKU
NMM-7703-A
Model No
NMM-7703-A
$2,654.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Unique modular design that allows the camera to be combined with a PTZ, panoramic or fixed camera in the center
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • MultiGuard PTZ to steer the PTZ camera based on the object detected by the multi-imager cameras or manually by the user
  • AI-based intelligence capability through the powerful SoC engine

The FLEXIDOME multi+ 7100i pairs powerful multi‑imager technology with advanced intelligence and unmatched system flexibility. Designed for demanding environments like airports and city surveillance, it features four independent imagers with AVF lens in a single unit, significantly reducing installation complexity and total cost of ownership. The camera delivers exceptional coverage for large busy areas, 360° overviews, traffic intersections, and building corners. The camera has a powerful, embedded processor with dedicated hardware to support advanced machine learning and deep neural network-based Video Analytics. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. When integrated with a PTZ camera the MultiGuard PTZ feature offers 360° views with rapid PTZ precision, automatically zooming in on detected events or allowing the operator to control for instant focus. With the adapter kit, users can easily expand their setup by combining additional camera types such as LPR units, or panoramic sensors that eliminate blind spots creating a flexible, high‑performance solution tailored to their specific security needs.

Features

  • Unique modular design that allows the camera to be combined with a PTZ, panoramic or fixed camera in the center
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • MultiGuard PTZ to steer the PTZ camera based on the object detected by the multi-imager cameras or manually by the user
  • AI-based intelligence capability through the powerful SoC engine
SKU  NMM-7703-A
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Bosch
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Resolution    20 Megapixel
Lens Type    Varifocal
Lens Size    3.2-8.1mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  24vDC, 24vAC, PoE
Dimensions (W x H)  430 mm x 170.5 mm
Electronic Shutter    Automatic Electronic Shutter (AES); 1/15,000 max; Default shutter
Image Device    1/2.8 inch CMOS 2.0 μm
Image Pixels-Effective2592 x 1944 (4:3)
Operating Humidity    5% – 93%
Operating Temperature    -40 °C – 55 °C (-40 °F – 131 °F)
S/N Ratio  >55 dB
Weatherproof    IP66, IK10
Angle of View    Horizontal field of view (º) 104° – 37° Vertical field of view (º) 73° – 28°
Automatic White Balance    2,000 K – 10,000 K
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
