ATV NLPW237 2 Megapixel IR Vandal Dome IP Camera, 3.7mm Lens
SKU
NLPW237
Model No
NLPW237
$237.60
Product Highlights
- 3.7mm Fixed Lens
- Exceptional 2MP, 1920 x 1080 Resolution, Video Images
- Powerful IR LED Lights for 0 Lux Operation up to 49ft
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
Speak to an expert

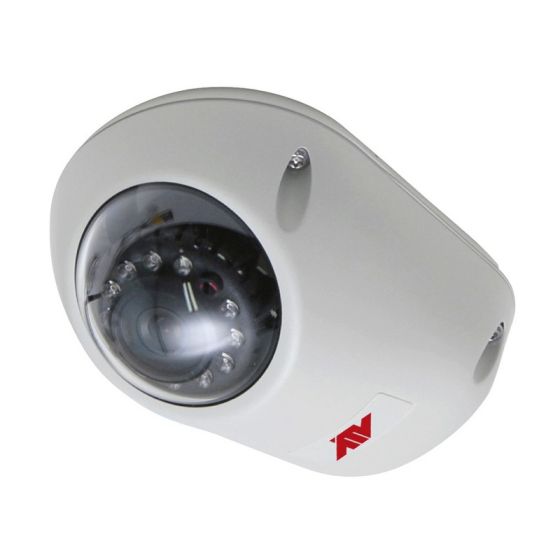

The NLPW237 from ATV is a 2 Megapixel Low Profile Vandal Dome Camera equipped with a 3.7mm Lens, delivering high-resolution video and durable design, ideal for various surveillance needs.
ATV NLPW237 Camera Features
- 3.7mm Fixed Lens: Provides a wide field of view, perfect for monitoring larger areas with precision.
- Exceptional 2MP, 1920 x 1080 Resolution: Ensures clear and high-quality video images, improving identification of subjects and details.
- Powerful IR LED Lights: Enables 0 Lux operation up to 49ft for efficient nighttime surveillance, ensuring visibility in complete darkness.
- ATVision IP Remote Management Client Software: Compatible with Windows and Mac, along with mobile applications for iOS and Android, allowing for convenient access and management of camera feeds from anywhere.
Detailed Camera Specifications for ATV NLPW237
| Camera Model | NLPW237 |
| Megapixels | 2 Megapixels |
| Lens Type | 3.7mm Fixed Lens |
| Resolution | 1920 x 1080 |
| IR Range | Up to 49ft |
| SD Slot | Yes |
| Power over Ethernet (PoE) | Yes |
SKU  | NLPW237 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | ATV |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 3.7 x 2.5 x 5.1in (94 x 63.3 x130mm) |
| Electronic Shutter | Auto (1/10,000~1sec), Manual |
| Image Device | 1/2.8″ SONY Exmor CMOS Sensor |
| IR LEDs | 12 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color : 0.2Lux / BW : 0Lux @ F2.0, 50IRE |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -4~122°F (-20~+50°C) |
| Power Consumption | 5.3W @PoE / 4.6W @12VDC |
| Privacy Zone | 8 |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3DNR |
| Angle of View | F2.0 / 105° (H) |
| IR Distance | Indoor: 14.93m/49ft, Outdoor: 11.27m/37ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
